BOMBER 50 C is the ultra-flat 50 liter mini inertial storage tank that connects up to two energy sources (e.g. heat pump, gas boiler or other) and acts as a hydraulic separator and distribution manifold for up to two zones. The internal diaphragm and the configuation of the secondary connections allow a correct fluid statification.The dedicated connection for the heat pump (max. 4.5 m³/h) ensures full utilisation of the storage volume, providing longer service continuity. When an additional energy source, such as a boiler, cannot be installed, BOMBER 50 C is equipped with a connection for an electric resistance (up to 3kW).The module is supplied with an automatic air vent valve and a temperature sensor pocket.It is fully insulated and can be used both in heating and also in cooling systems.
MAGNETOR allow to remove the dirt quickly and easily only using a minimum quantity of water from the heating system.
Differently from the other system of dirt separators, magnetor is equipped with a magnetic capsule in stainless steel sealed with laser-welded ends and a magnetic pole system with opposing poles that guarantee an extraordinary magnetic power and (since there is no contact with fluids and impurities) a practically eternal duration of the magnetic charge.
• Radiant panels having the circulating water heated by cast iron and firewood boilers. Impurities may damage or cause a defect working of the floor/wall circuit.
• Systems having old plastic piping. In this case, oxygen could damage the heating boiler.
• In presence of domestic water production by means of a storage tank.
• When a separation of the primary circuit from a traditional heating circuit is necessary.
• The unit is supplied without circulator as standard
The thermostatic pump group KOMPAT DN 25 - 1" KTC is a low temperature unit used in underfloor heating systems.
It consists of a 3-way mixing valve controlled by an integrated thermostatic actuator, by which the temperature to be kept constant in the flow is set. It is equipped with a protection device consisting of a contact thermostat installed on the flow and connected to the pump. In this way it is ensured that the pump is switches off if the temperature exceeds the set threshold. The valve is equipped with 1 upper by-pass (system side) to take part of the water from the system return flow, allowing to recover heat and balance the temperature; ideal for floor systems.
The thermostatic pump group KTC SI - DN25 is a low temperature unit used in underfloor heating systems.
It consists of a 3-way mixing valve controlled by an integrated thermostatic actuator, by which the temperature to be kept constant in the flow is set. It is equipped with a protection device consisting of a contact thermostat installed on the flow and connected to the pump. In this way it is ensured that the pump is switches off if the temperature exceeds the set threshold.
The unmixed group KOMPAT DN 25 - 1” KA-125 is suitable for high temperature circuits (radiators, fan coils and cylinder loads).
The unit is supplied with right flow
Plus / Advantages: • Ready-to-install compact control and regulation unit - Unit for high temperature systems - Electronic circulator, H = 180 mm, Connections 11/2" - The change of flow from right to left can be made directly by the installer by inverting the pipe and circulator positions - Extremely easy maintenance: Checking and replacing the pump without emptying the system - Return pipe with check valve - Seals secured by flat stops and seals - Ball valves on the flow and return pipe with integrated thermometer - Black EPP thermal insulation 40 g/l 0.036 W/mK sp 20 mm
The unmixed group KOMPAT DN 25 - 1” KS-125 is suitable for high temperature circuits (radiators, fan coils and cylinder loads).
The unit is supplied with right flow
Plus / Advantages: • Ready-to-install compact control and regulation unit - Unit for high temperature systems - Electronic circulator, H = 180 mm, Connections 11/2" - The change of flow from right to left can be made directly by the installer by inverting the pipe and circulator positions - Extremely easy maintenance: Checking and replacing the pump without emptying the system - Return pipe with check valve - Seals secured by flat stops and seals - Ball valves on the flow and return pipe with integrated thermometer - Black EPP thermal insulation 40 g/l 0.036 W/mK sp 20 mm

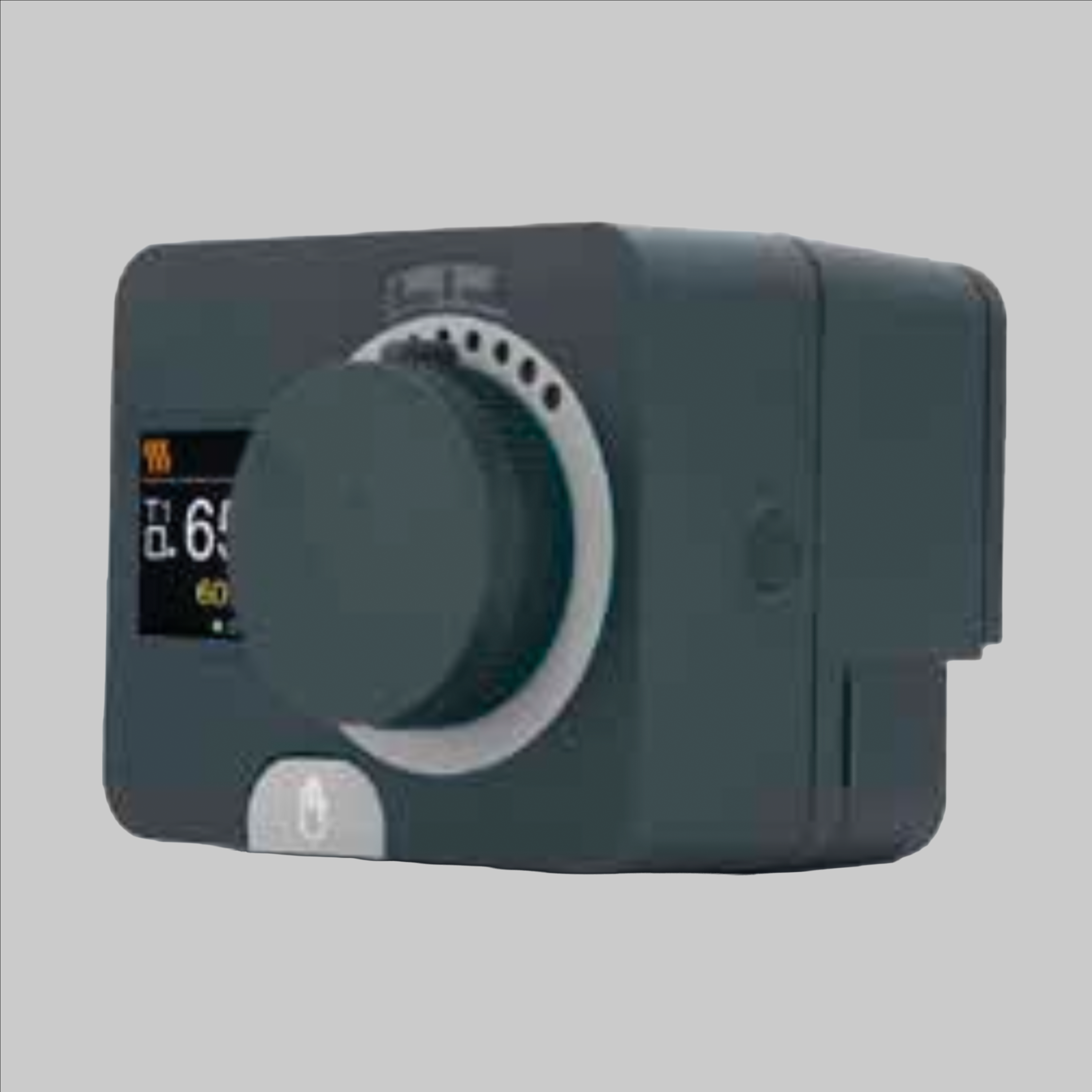

ECOMIX CLIMATE is a compact microprocessor based climate controller for low-temperature heating circuits including 3 points rotary electric servo designed to operate on the mixing valves.
ECOMIX PF is a compact electronic constant temperature control designed to operate 3- and 4-way mixing valves in radiant floor heating, solid fuel and industrial applications.

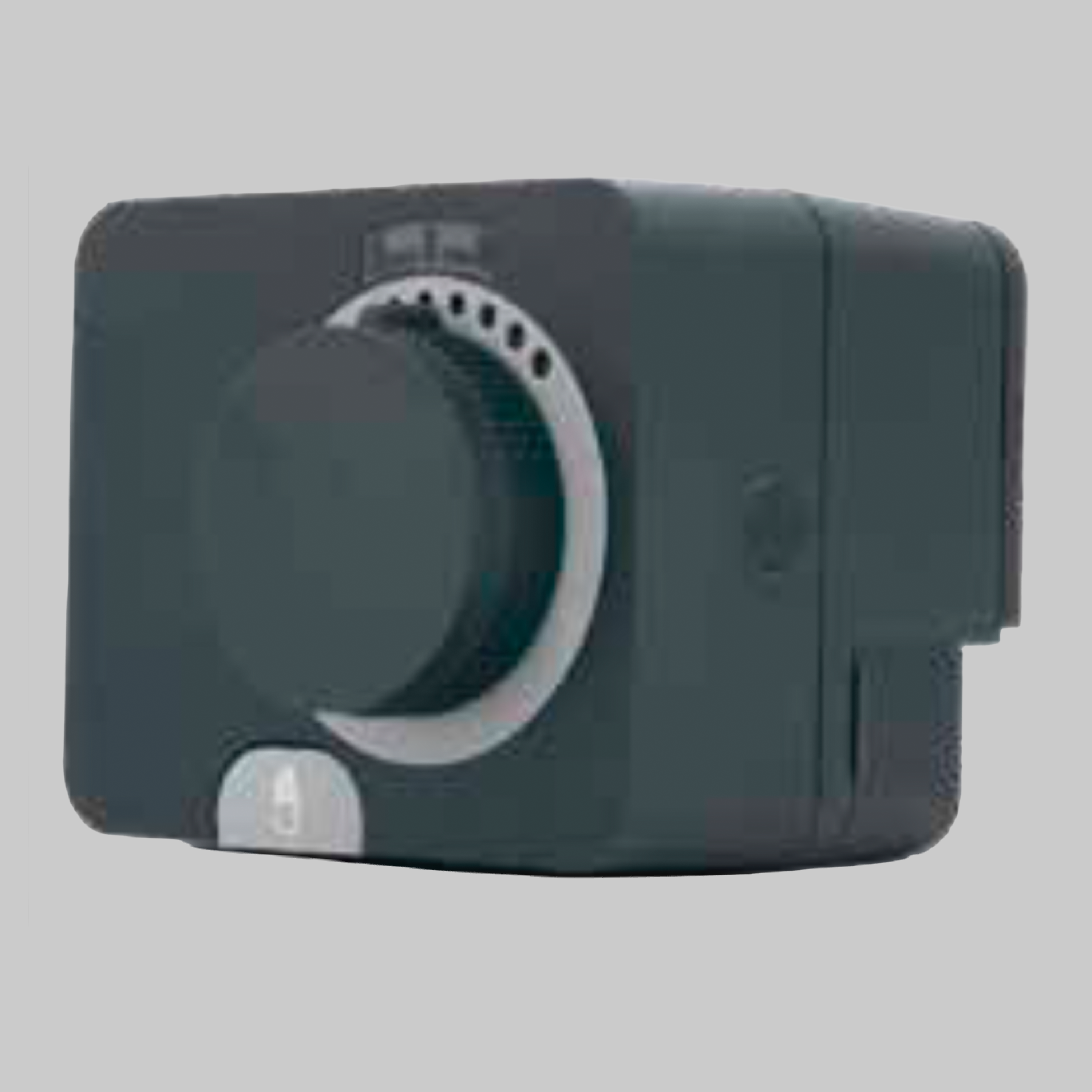

ECOMIX PROPORTIONAL is a compact rotary electric actuator for motorising the most popular types of mixing valves. Modulating control is effected by means of a standard DC 0…10 V control signal.
• Radiant panels having the circulating water heated by cast iron and firewood boilers. Impurities may damage or cause a defect working of the floor/wall circuit.
• Systems having old plastic piping. In this case, oxygen could damage the heating boiler.
• In presence of domestic water production by means of a storage tank.
• When a separation of the primary circuit from a traditional heating circuit is necessary.
• The unit is supplied without circulator as standard
3-way mixing valve, controlled by a thermostatic actuator, through which the temperature to be kept constant in the flow is set. The valve is supplied with a bypass. It allows heat recovery and temperature balancing in radiant panel systems by mixing part of the water from the system return with the water from the flow .
3-way mixing valve, controlled by an electric rotary servo control.
By changing the position of the internal plug, it is possible to switch the flow from right to left. The valve is supplied with bypass. It allows heat recovery and temperature balancing in radiant panel systems by mixing part of the water from the system return with the water from the flow .
