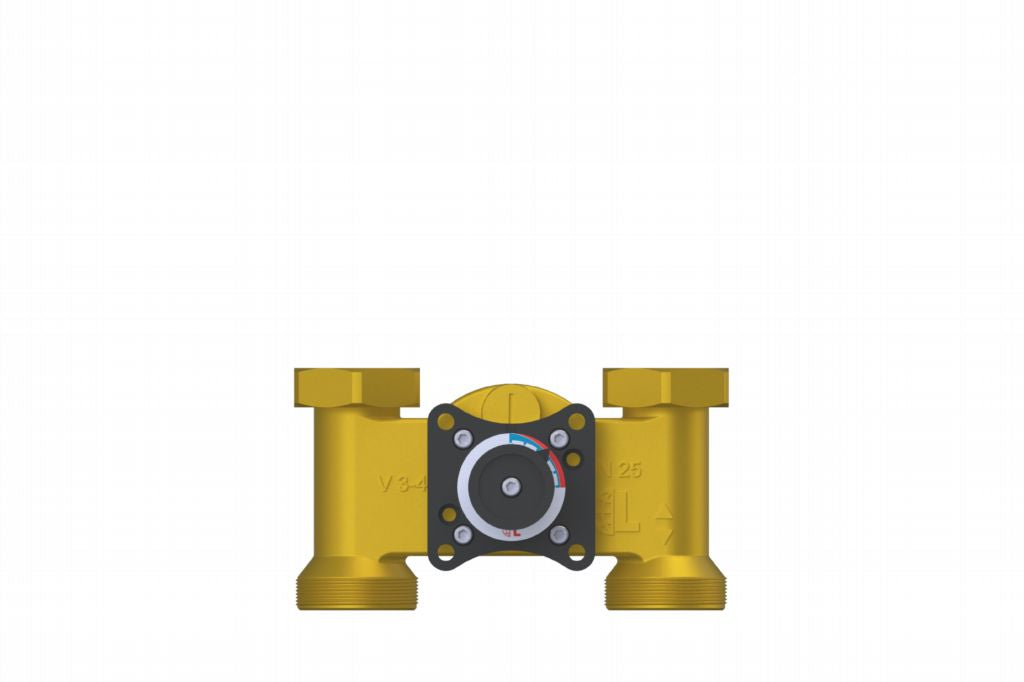

MK3 DN25 Mixing Valve - KOMPAT DN25

MK3 DN25 Mixing Valve - KOMPAT DN25

£96.94 GBP
Handing
3-way mixing valve, controlled by an electric rotary servo control.

By changing the position of the internal plug, it is possible to switch the flow from right to left.

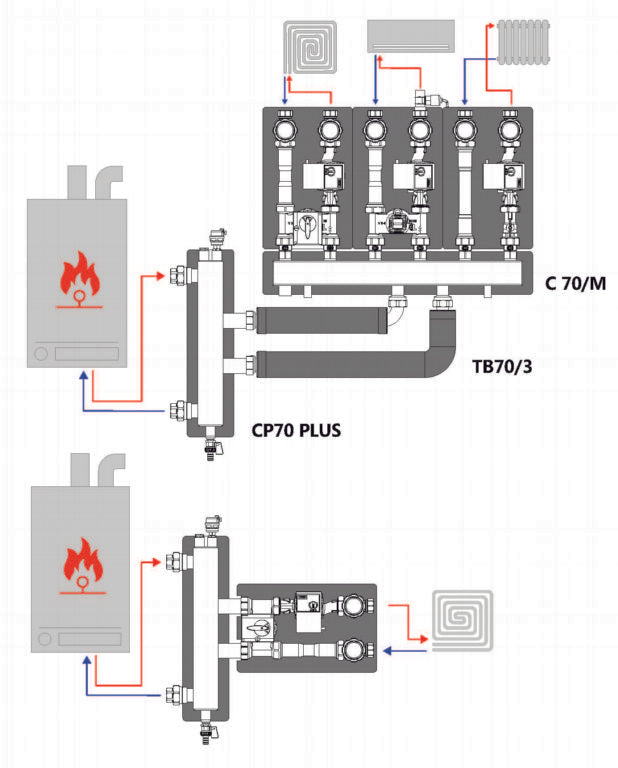

The valve is supplied with bypass. It allows heat recovery and temperature balancing in radiant panel systems by mixing part of the water from the system return with the water from the flow .

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
MK3 DN25 Mixing Valve - KOMPAT DN25
  • MK3 DN25 Mixing Valve - KOMPAT DN25
  • MK3 DN25 Mixing Valve - KOMPAT DN25
  • MK3 DN25 Mixing Valve - KOMPAT DN25
  • MK3 DN25 Mixing Valve - KOMPAT DN25
  • MK3 DN25 Mixing Valve - KOMPAT DN25
  • MK3 DN25 Mixing Valve - KOMPAT DN25
  • MK3 DN25 Mixing Valve - KOMPAT DN25
  • MK3 DN25 Mixing Valve - KOMPAT DN25
  • MK3 DN25 Mixing Valve - KOMPAT DN25
  • MK3 DN25 Mixing Valve - KOMPAT DN25
MK3 DN25 Mixing Valve - KOMPAT DN25
Specs

Pipework size: DN25
Connection: 1. 1/2” F - 1 1/2” M

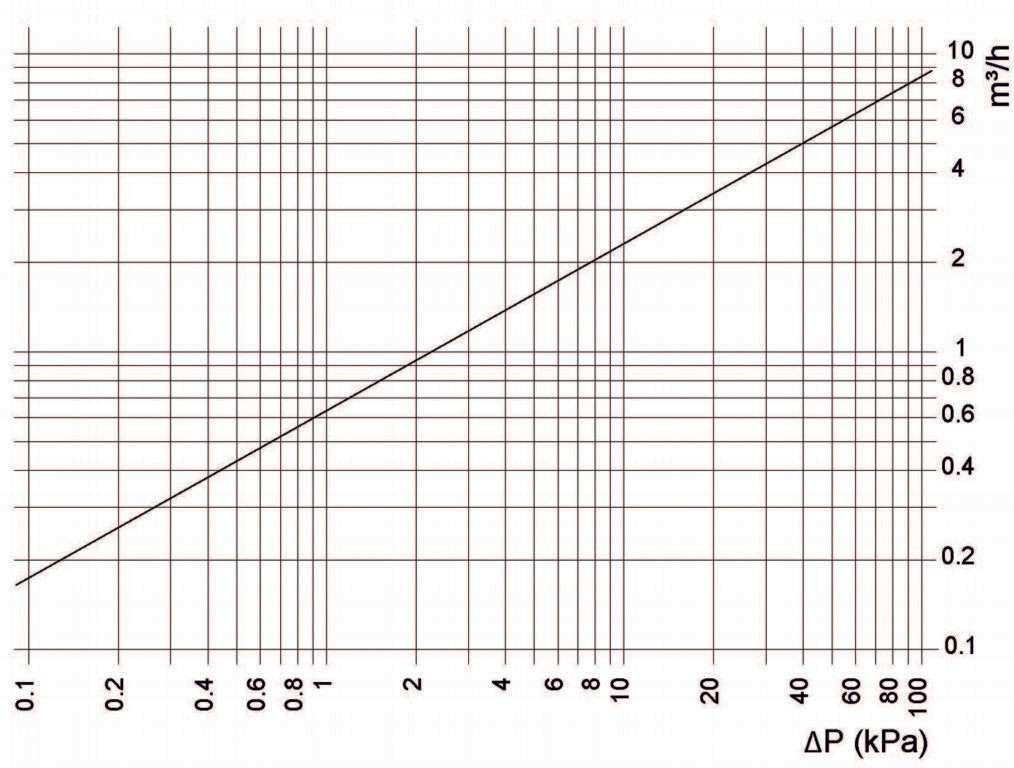

KVS: 8.3
Maximum Temperature: 110 Deg C
Maximum Pressure: 6 Bar
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM
Benefits

• 3-way mixing valve with modulating electrical motor;
• Easy to change flow position from right to left;
• 1 integrated bypass.
Details

The 3-way mixing valve DN25 - 1" MK3 is designed for control by an electric rotary actuator.

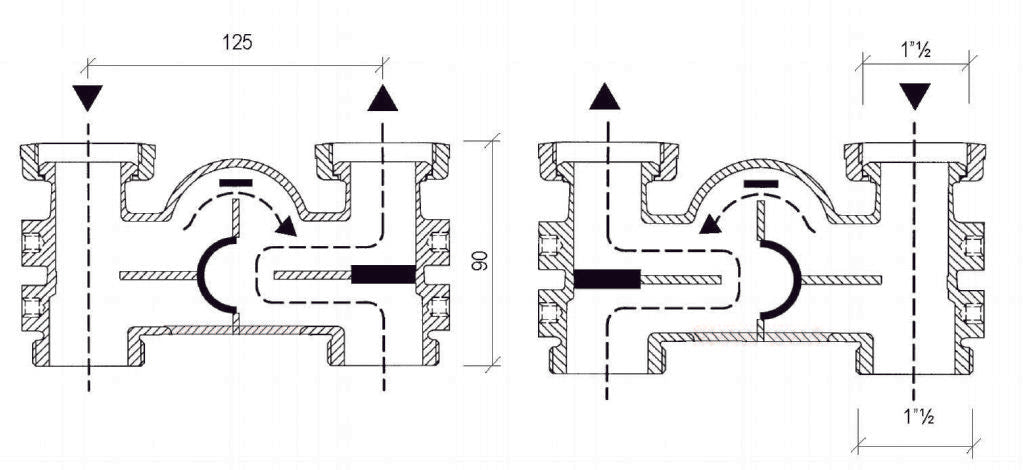

By changing the position of the internal plug, it is possible to change the valve flow from right to left.

The valve is supplied with 1 by-pass:

- by upper by-pass (system side): it takes part of the system return water and flows it into the flow, allowing heat recovery and temperature balancing in radiant panel systems.
