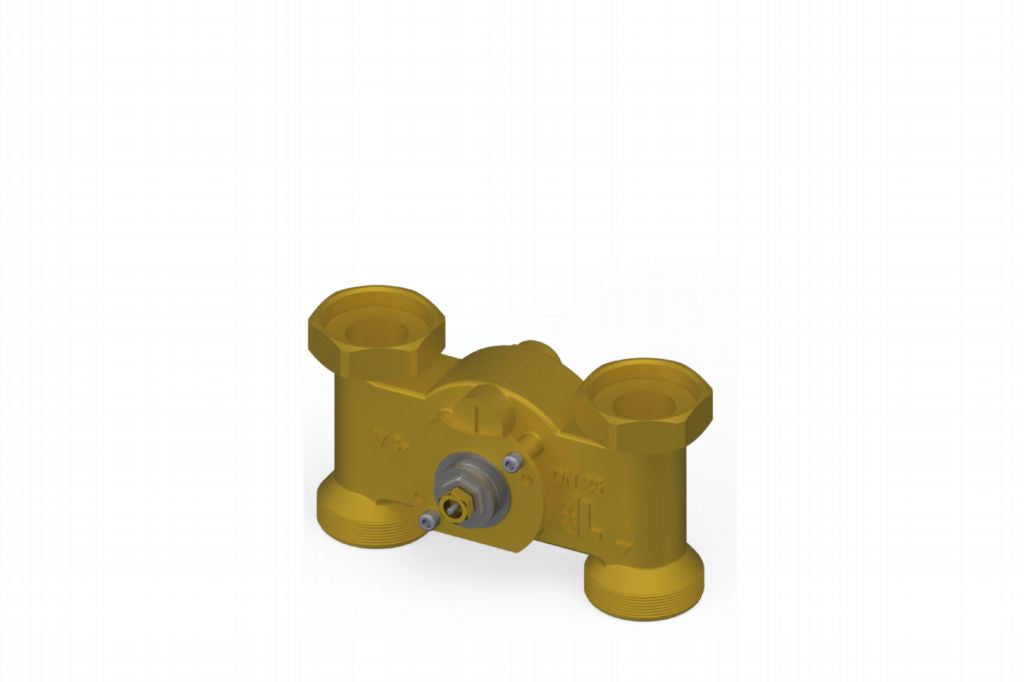

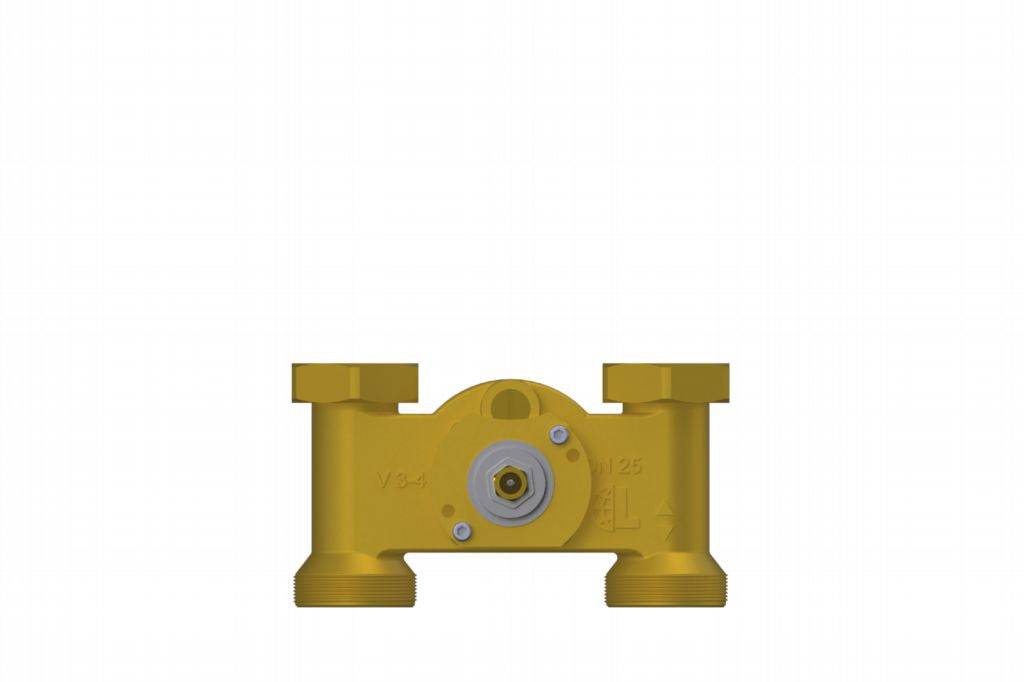

MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25

MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25

£133.73 GBP
3-way mixing valve, controlled by a thermostatic actuator, through which the temperature to be kept constant in the flow is set. The valve is supplied with a bypass. It allows heat recovery and temperature balancing in radiant panel systems by mixing part of the water from the system return with the water from the flow .

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
  • MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
MKTC DN25 Thermostatic Mixing Valve - KOMPAT DN25
Specs

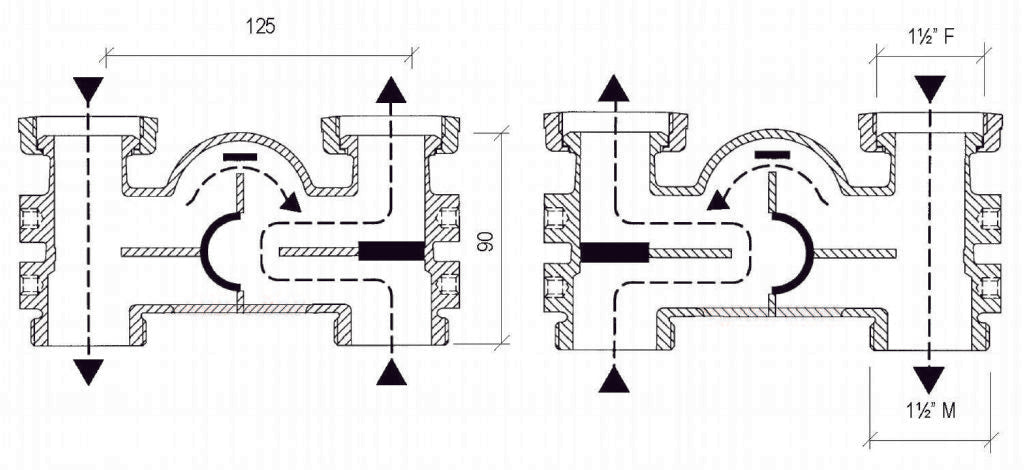

Pipework size: DN25
Connection: 1. 1/2” F - 1 1/2” M

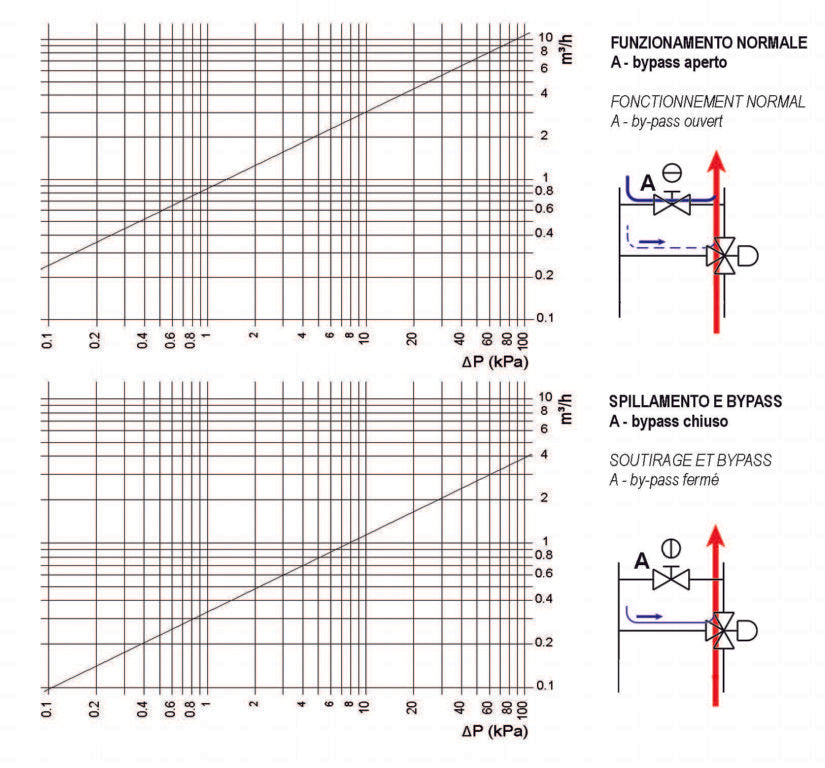

KVS: 4
Maximum Temperature: 110 Deg C
Maximum Pressure: 6 Bar
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM
Benefits

• 3-way mixing valve regulated by a thermostatic actuator;
• It is used for underfloor heating;
• 1 integrated bypass;
• easy to regulate.
Details

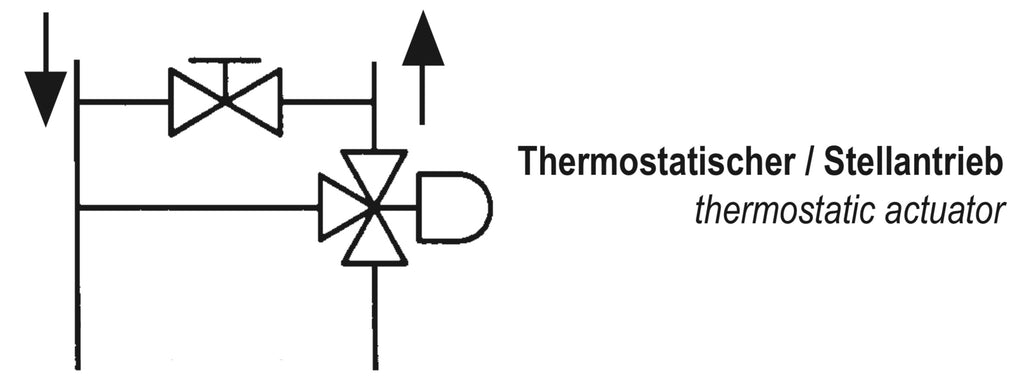

Mixing valve DN 25 - 1 “MKTC” is a 3-way valve regulated by a thermostatic actuator, by which the desired constant flow temperature is set.

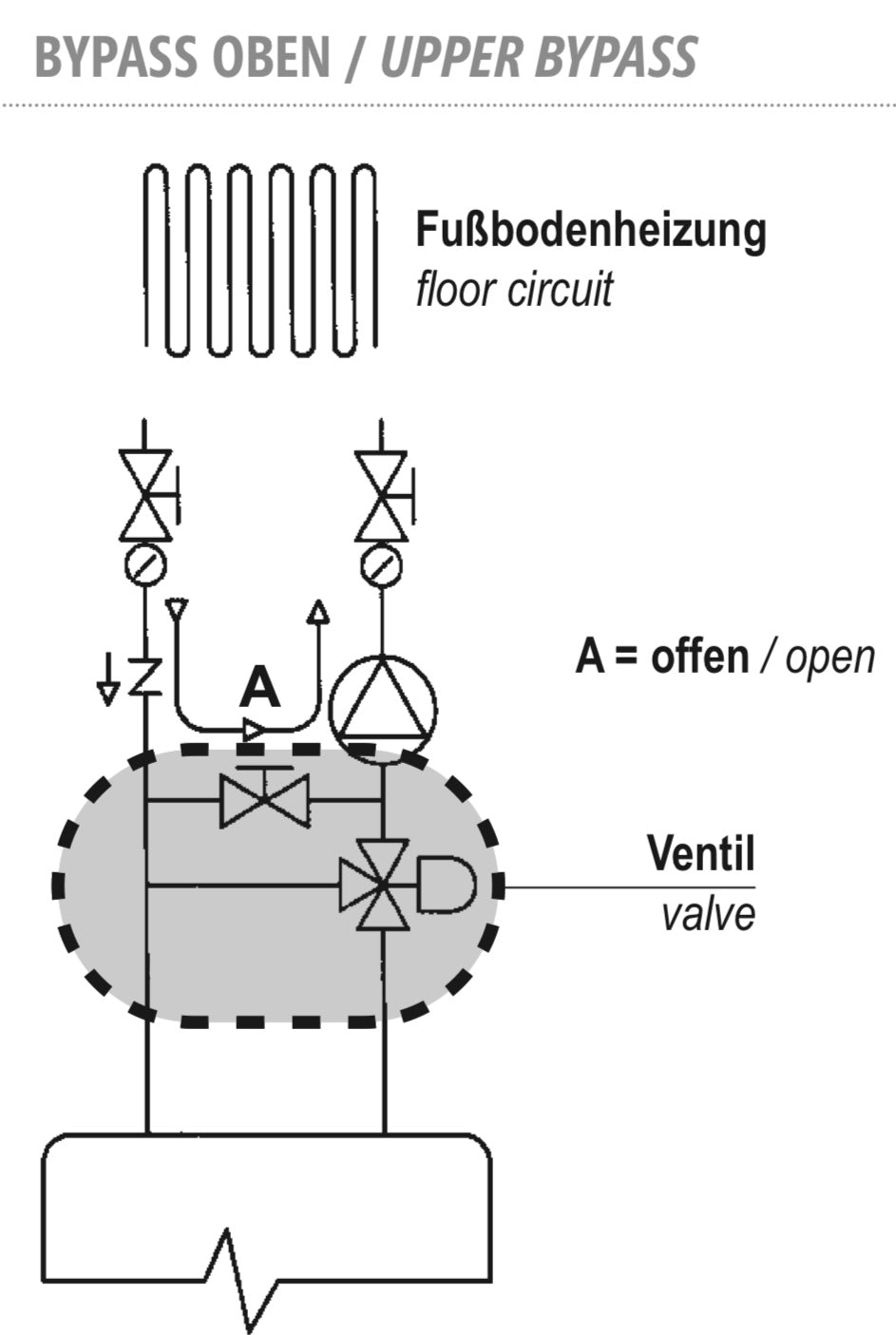

The valve has 1 bypass:

- upper bypass (plant side): upper bypass (plant side): takes a part of return water plant side, allows to recover the heat and balances the temperature in the underfloor heating system.
