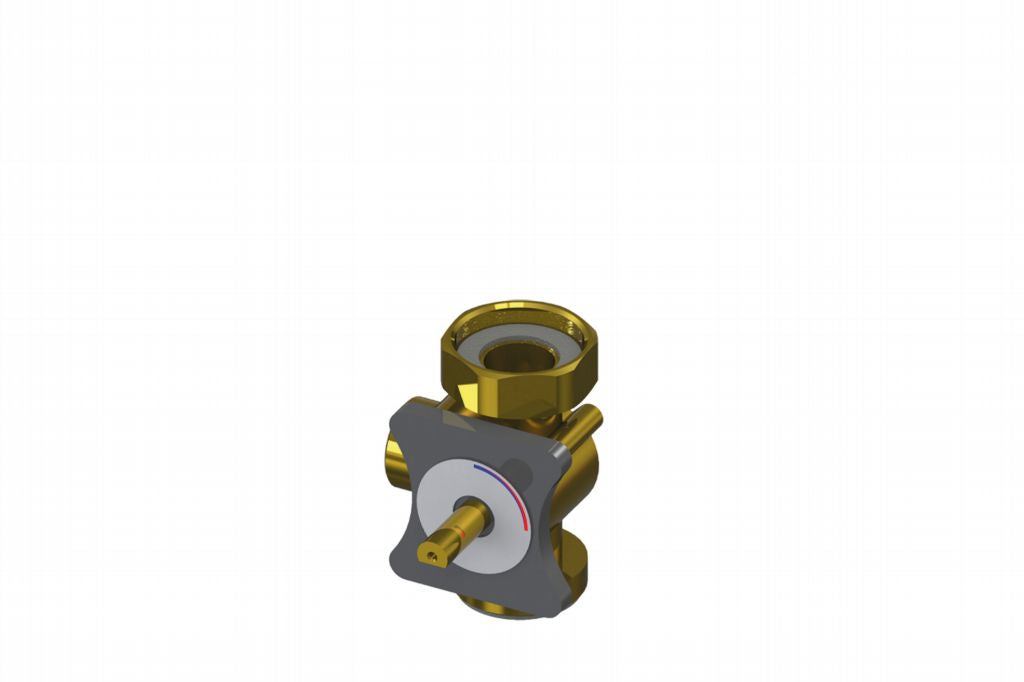

TV3 DN25 Mixing Valve - KOMPAT DN25

£66.77 GBP

The 3-way mixing valve DN 25 - 1” TV3 is extremely compact with high hydraulic performance.

The valve is supplied with right flow.

The valve is designed for adjustment by rotary electric actuator “ECOMIX” series.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With

TV3 DN25 Mixing Valve - KOMPAT DN25
TV3 DN25 Mixing Valve - KOMPAT DN25
Specs

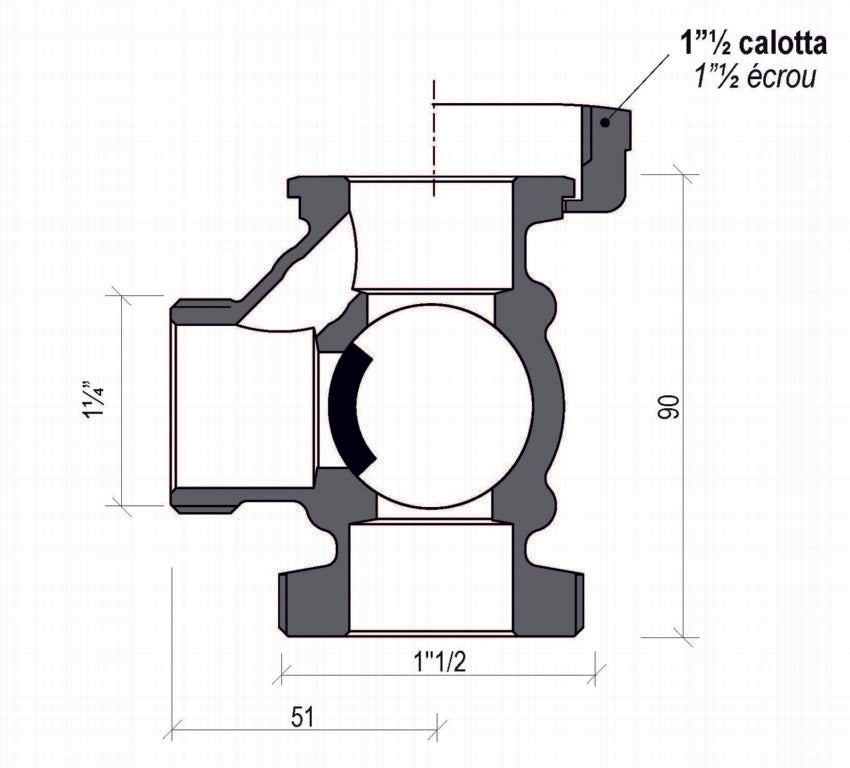

Pipework size: DN25
Connection: 1. 1/2” F - 1 1/2” M

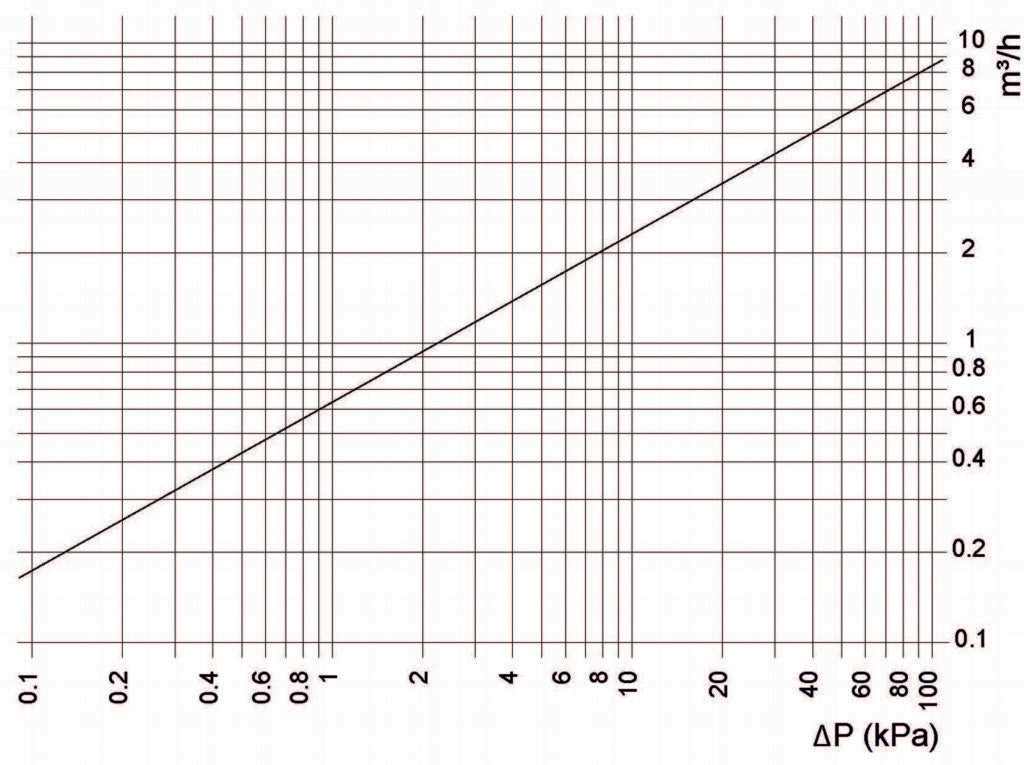

KVS: 8.3
Maximum Temperature: 110 Deg C
Maximum Pressure: 6 Bar
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM

Benefits

• Extremely compact with high hydraulic performance;
• Flanged connection G 1” ½ for direct connection to the circulating pump.

Details

The 3-way mixing valve DN 25 - 1” TV3 is extremely compact with high hydraulic performance.

The valve is supplied with right flow.

The valve is designed for adjustment by rotary electric actuator “ECOMIX” series.
