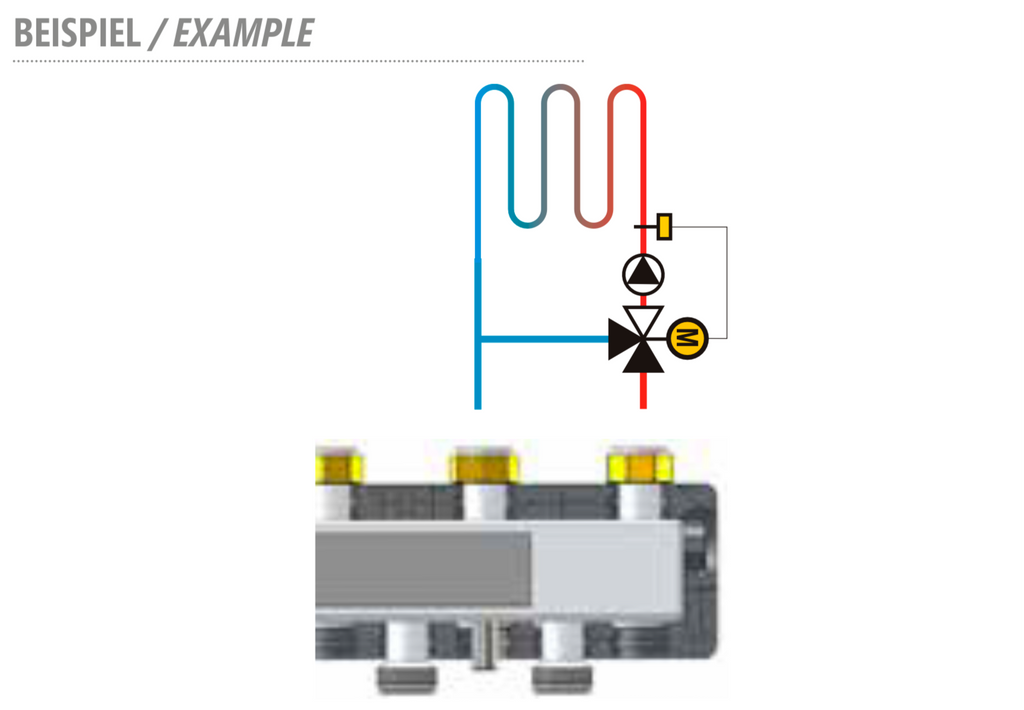

ECOMIX PF is a compact electronic constant temperature control designed to operate 3- and 4-way mixing valves in radiant floor heating, solid fuel and industrial applications.
The supply temperature can be controlled steplessly between 0°C and 99°C. In case of power failure the motor can be controlled manually.
ECOMIX CLIMA works continuously and proportionally. Through data from the supply sensor the motor with built-in electronics controls the valve. The temperature setting will be very accurate.
The quick and easy do-it-your-self installation saves on labor costs.
STANDARD EQUIPMENT:

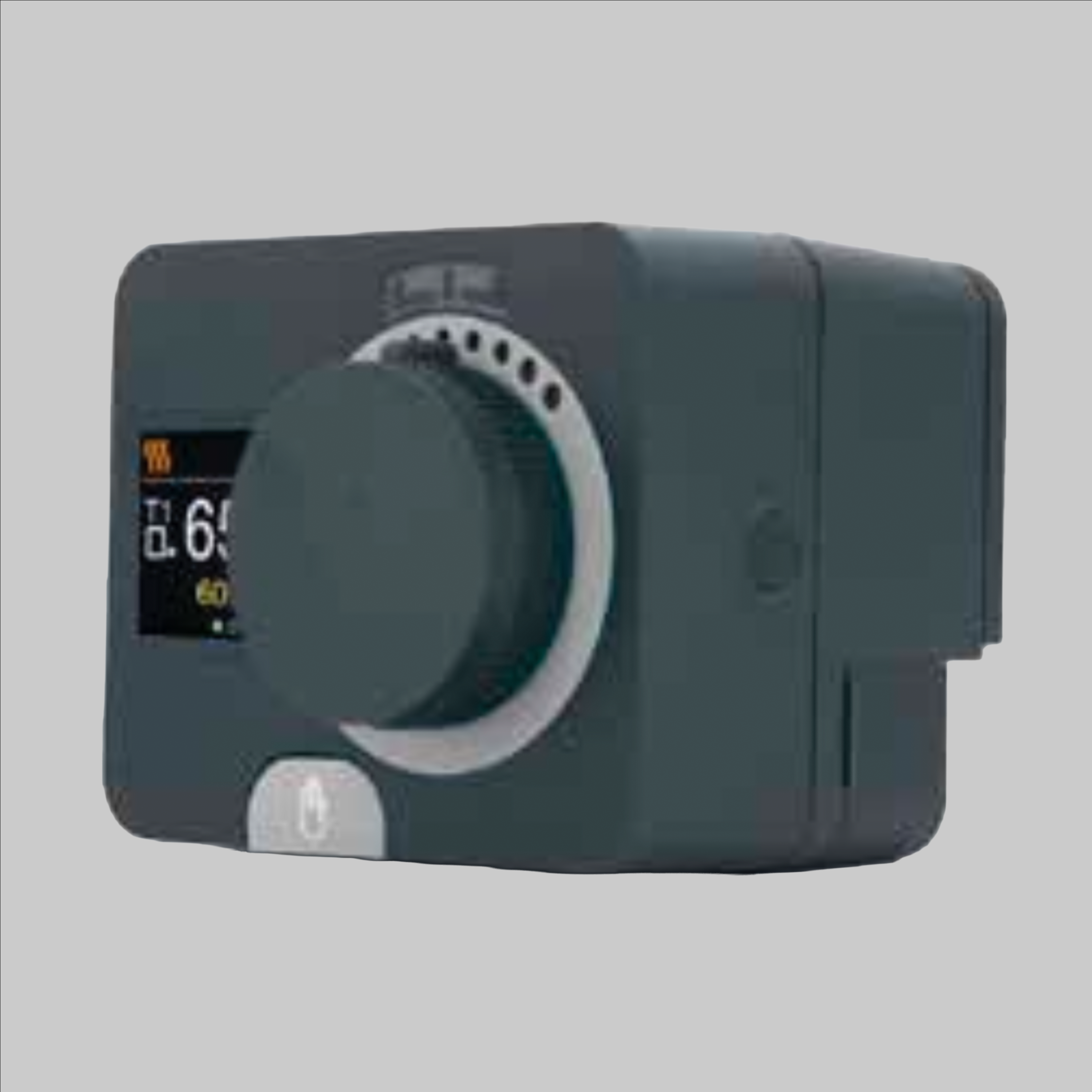

- Automix CT valve motor 24 VAC 50/60 Hz with built-in electronics;
Mounting kit;
- Supply temperature sensor T1 with fix band and 1 meter wire;
- Adapter 230/18 VAC 190 mA with 1,7 meter wire;
- Mounting and operation instructions.
