KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25

KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25

£228.00 GBP
Type
The thermostatic pump group KTC SI - DN25 is a low temperature unit used in underfloor heating systems.

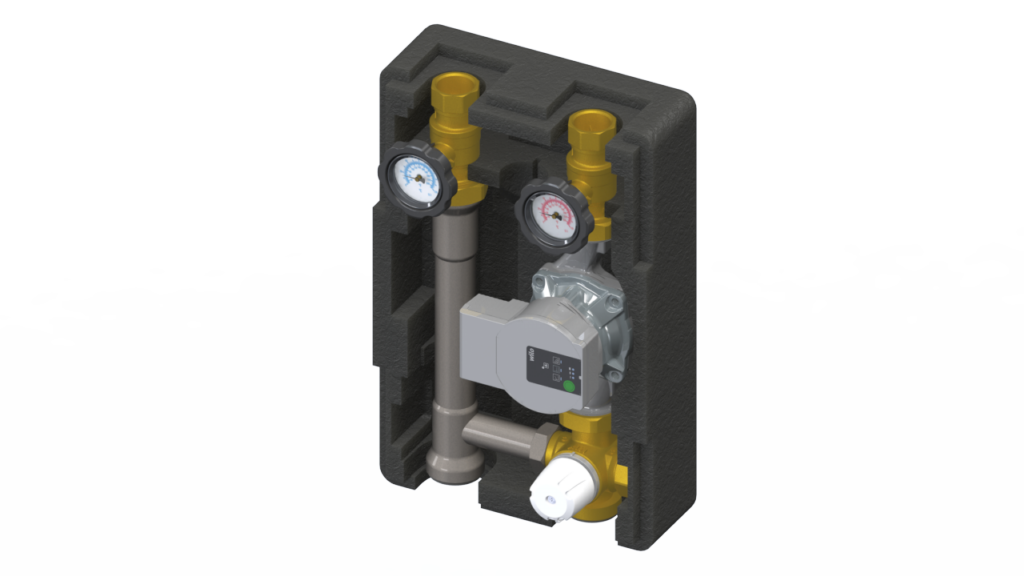

It consists of a 3-way mixing valve controlled by an integrated thermostatic actuator, by which the temperature to be kept constant in the flow is set. It is equipped with a protection device consisting of a contact thermostat installed on the flow and connected to the pump. In this way it is ensured that the pump is switches off if the temperature exceeds the set threshold.

The unit is supplied with right flow

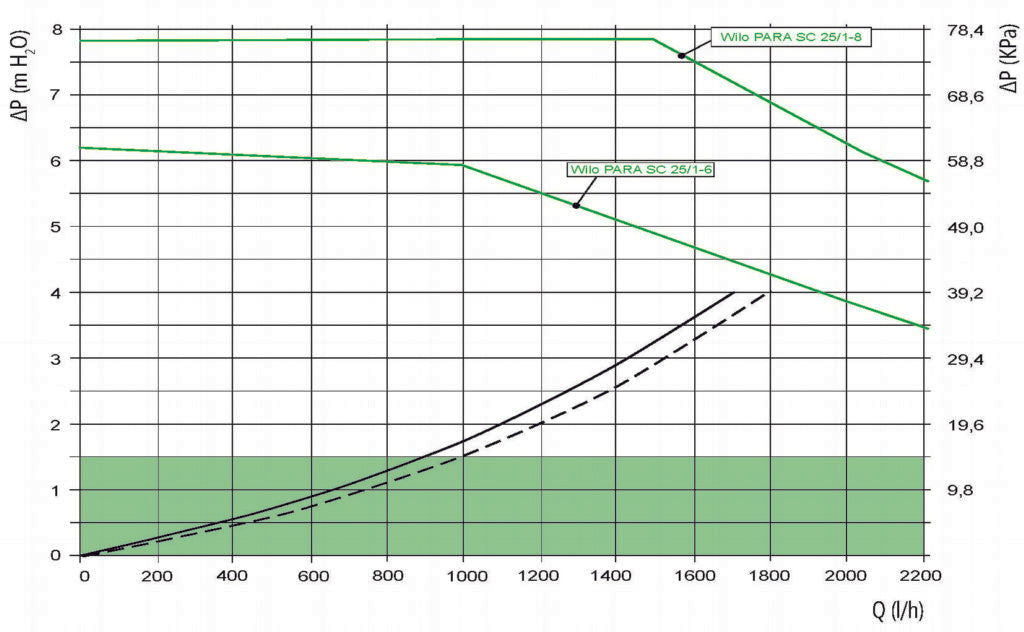

Nominal Flow Rate - 700 l/h (DP 10 kPa)

Nominal Heating Power - 16.3 kW (DT 20 °C)

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
  • KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
  • KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
  • KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
  • KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
  • KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
  • KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
  • KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
  • KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
  • KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
  • KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
KTC SI-125 DN25 - Thermostatic Pump Group (High Temperature Cut Off) - KOMPAT DN25
Specs

Pipework size: DN25
Connection: 1” F - 1 1/2” F
Output @ 20DT: 16.3 kW
Flow Rate @ 20DT: 700 l/h
Maximum Temperature: 95 Deg C
Insulation Material: EPP 40 g/l 0.036 W/mK sp 20mm
Check Valve Material: Acetal Copolymer
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM

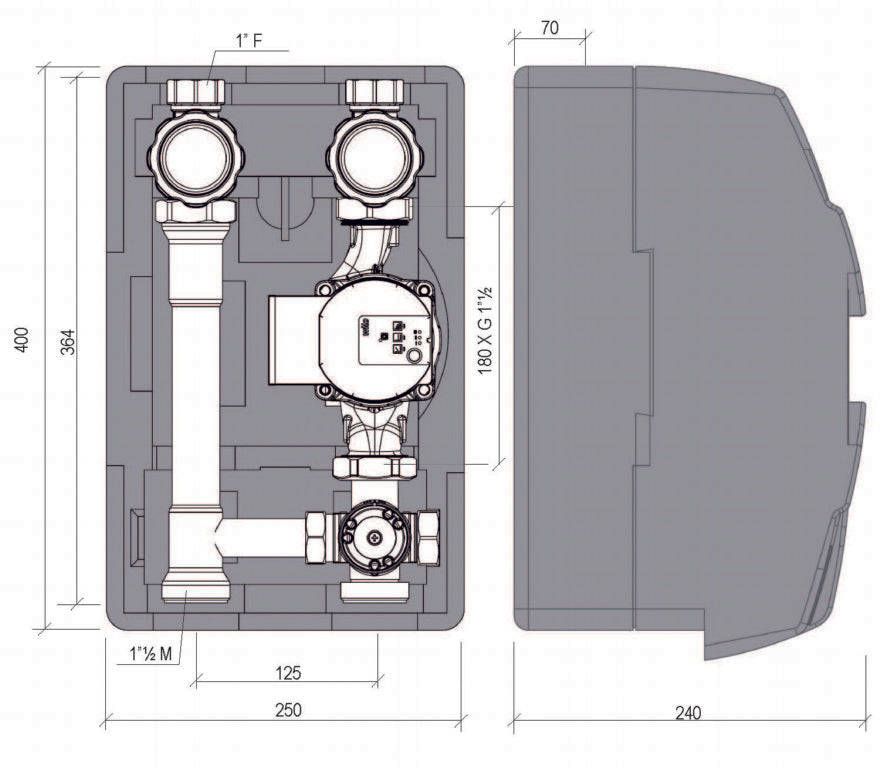

Dimensions: 280x275x440 mm
Benefits

• Compact control unit ready for installation;
• 3-way mixing valve with rotary thermostatic actuator;
• Electronic circulating pump H = 180 mm, Connections 1 ½”;
• Easy maintenance: pump can be changed and controlled without emptying the plant;
• Return pipe with check valve;
• All seals are assured by flat fittings and gaskets;
• Flanged ball valves with thermometers on flow/return side;

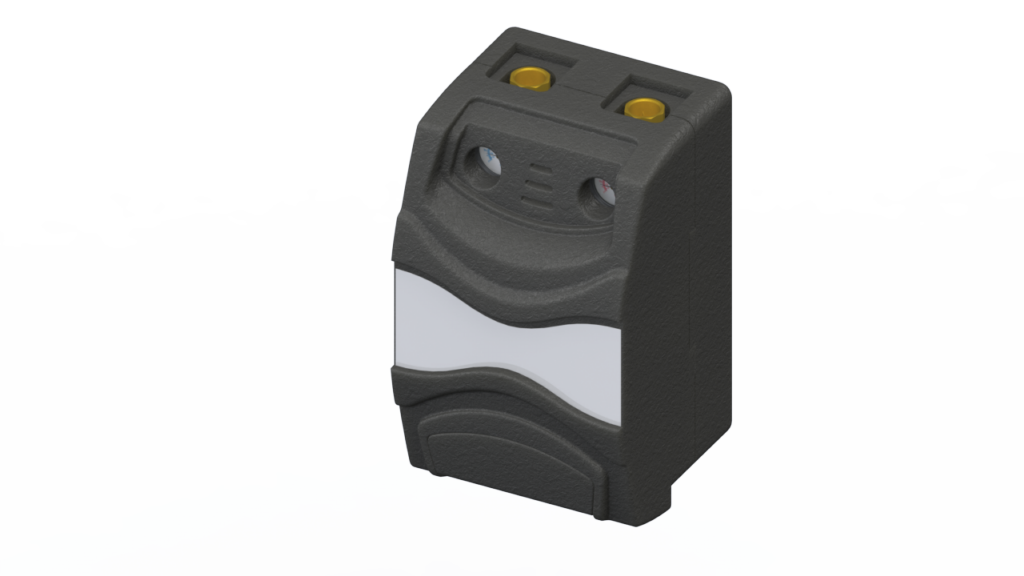

• Thermal insulation in black EPP 40 g/l 0.036 W/mK sp 20 mm
Details

The thermostatic pump group KOMPAT DN 25 - 1" KTC_SI is a low temperature unit used in underfloor heating systems.

It consists of a 3-way mixing valve controlled by an integrated thermostatic actuator, by which the temperature to be kept constant in the flow is set. It is equipped with a protection device consisting of a contact thermostat installed on the flow and connected to the pump. In this way it is ensured that the pump is switches off if the temperature exceeds the set threshold.

Plus / Advantages:
• Compact control unit ready for installation.
• 3-way mixing valve controlled by thermostatic actuator
• Electronic pump, H = 180 mm, Connections 1 ½"
• Extremely easy maintenance: control and replacement of the pump without emptying the system
• Extremely easy to reverse the flow from right to left; can be carried out directly by the installer by inverting
the pipe and pump positions and acting on the valve
• Return pipe with check valve
• Seals assured by flat stops and seals
• ball valves on the flow and return with integrated thermometer
• Black EPP thermal insulation
