ECOMIX CLIMA Actuator

ECOMIX CLIMA Actuator

£396.14 GBP

ECOMIX CLIMATE is a compact microprocessor based climate controller for low-temperature heating circuits including 3 points rotary electric servo designed to operate on the mixing valves.



High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
ECOMIX CLIMA Actuator
  • ECOMIX CLIMA Actuator
  • ECOMIX CLIMA Actuator
  • ECOMIX CLIMA Actuator
  • ECOMIX CLIMA Actuator
  • ECOMIX CLIMA Actuator
  • ECOMIX CLIMA Actuator
  • ECOMIX CLIMA Actuator
  • ECOMIX CLIMA Actuator
ECOMIX CLIMA Actuator
Specs

Power Requirements: 230 V 50 Hz
Power Consumption: 4.0VA
Temperature Range: 0-40 °C
Protection: IP42 (EN 60529)
Protection Class: I (EN 60730-1)
Torque: 10 Nm
Running Time: 120 s
Frost Protection: 6 °C
Sensor Type: PT1000 or KTY10
Heating Curve Setting: 0.2 +2.2
Mixing Valve Control: 3-Points Setting

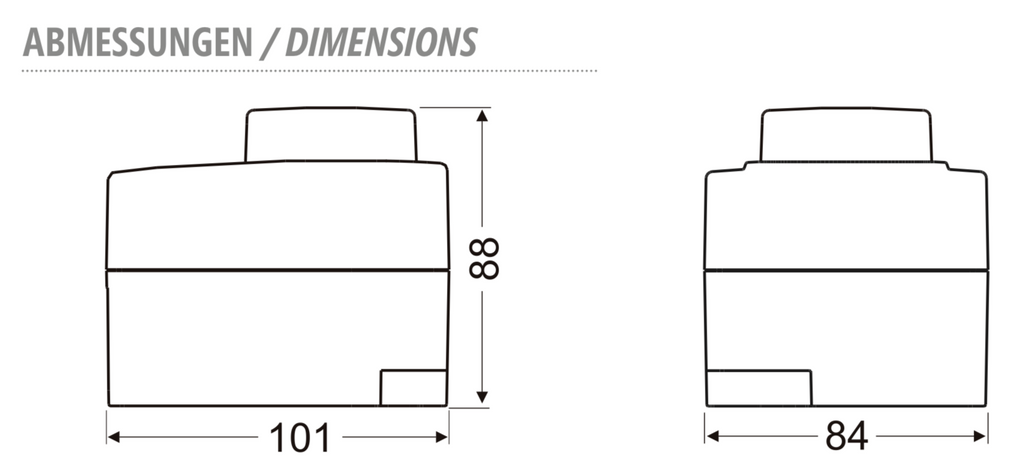

Dimensions: 84x101x88 mm
Benefits

• Climate controller with electric actuator
• Set parameters “EASY START” facilitated by the display and touch screen
• Ability to integrate the unit with remote control ECOMIX DD2 and external sensor
• Bright LED red and green (indicating the opening and closing valve)
• graphic diagrams for the analysis of system operation
• summer / winter automatic setting and timer programs
Details

ECOMIX CLIMATE is a compact microprocessor based climate controller for low-temperature heating circuits including 3 points rotary electric servo designed to operate on the mixing valves.

The flow temperature can be controlled in small steps between 0 and 40 ° C.

ECOMIX CLIMA works continuously and proportionally. Through data from the supply sensor the motor with built-in electronics controls the valve. The temperature setting will be very accurate.

The quick and easy do-it-your-self installation saves on labor charges.
