KA-125 DN25 - High Temperature Pump Group - KOMPAT DN25

KA-125 DN25 - High Temperature Pump Group - KOMPAT DN25

£142.15 GBP
Type
The unmixed group KOMPAT DN 25 - 1” KA-125 is suitable for high temperature circuits (radiators, fan coils and cylinder loads).

The unit is supplied with right flow
Plus / Advantages:
• Ready-to-install compact control and regulation unit
- Unit for high temperature systems
- Electronic circulator, H = 180 mm, Connections 11/2"
- The change of flow from right to left can be made directly by the installer by inverting the pipe and circulator positions
- Extremely easy maintenance: Checking and replacing the pump without emptying the system
- Return pipe with check valve
- Seals secured by flat stops and seals
- Ball valves on the flow and return pipe with integrated thermometer
- Black EPP thermal insulation 40 g/l 0.036 W/mK sp 20 mm

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With

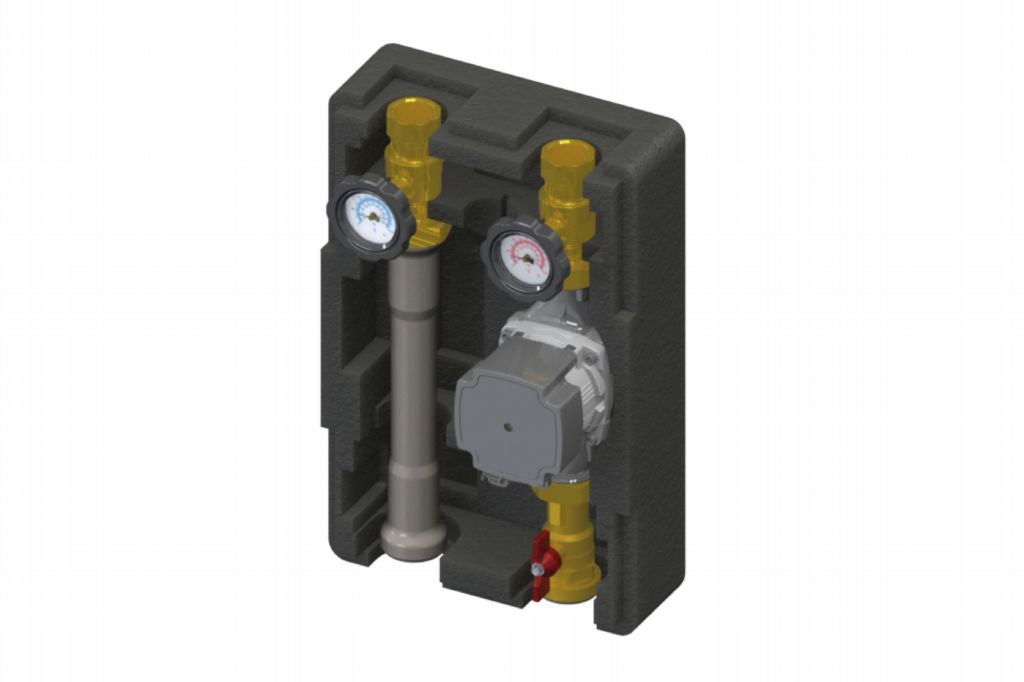

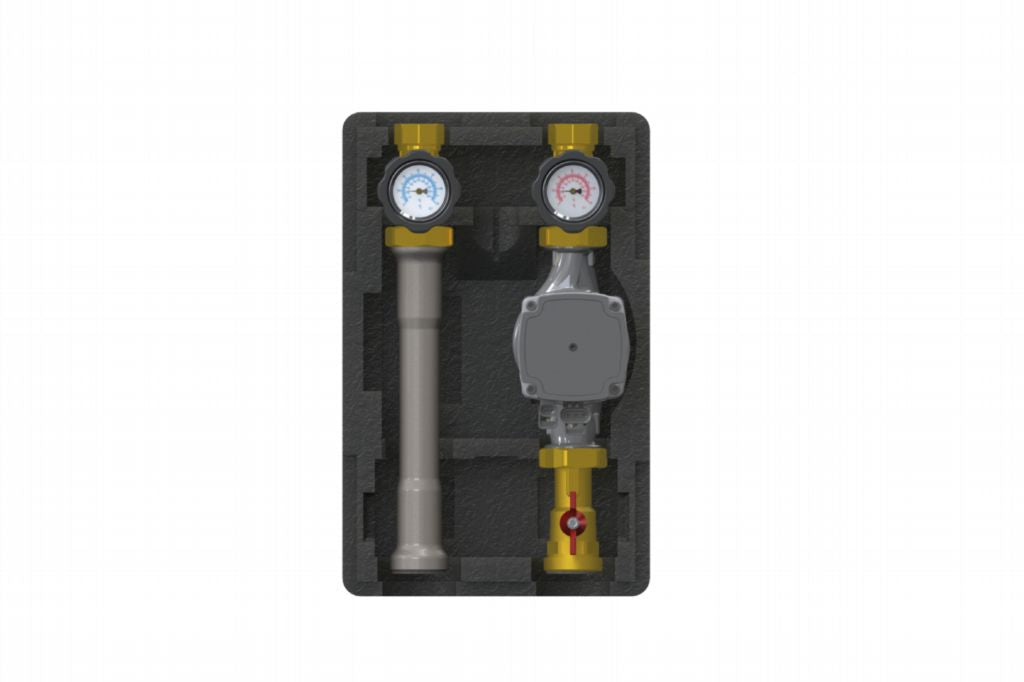

Mechanical valve or pump assembly with visible components on a white background
  • Mechanical valve or pump assembly with visible components on a white background
  • Mechanical valve assembly with gauges in a black plastic packaging on a white background
  • Black and gray electronic component on a white background
  • KA-125 DN25 - High Temperature Pump Group - KOMPAT DN25
  • KA-125 DN25 - High Temperature Pump Group - KOMPAT DN25
  • KA-125 DN25 - High Temperature Pump Group - KOMPAT DN25
  • Mechanical valve or pump assembly with visible components on a white background
  • Mechanical valve assembly with gauges in a black plastic packaging on a white background
  • Black and gray electronic component on a white background
  • KA-125 DN25 - High Temperature Pump Group - KOMPAT DN25
  • KA-125 DN25 - High Temperature Pump Group - KOMPAT DN25
  • KA-125 DN25 - High Temperature Pump Group - KOMPAT DN25
Mechanical valve or pump assembly with visible components on a white background
Specs

Pipework size: DN25
Connection: 1” F - 1 1/2” F
Output @ 20DT: 52.5 kW
Flow Rate @ 20DT: 2260 l/h
Maximum Temperature: 95 Deg C
Insulation Material: EPP 40 g/l 0.036 W/mK sp 20mm
Check Valve Material: Acetal Copolymer
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM
Dimensions: 280x275x440 mm
Benefits

• Compact control unit ready for installation;
• Direct unit for high temperature plants
• Electronic circulating pump, H = 180 mm, Connections 1 ½”;
• Easy reversal of flow position from right to left. It can be converted to left flow directly by the installer inverting the return tube and pump positions;
• Return pipe with check valve;
• All seals are assured by flat fittings and gaskets;
• Flanged ball valves with thermometers on flow/return position;
• Thermal insulation in black l’EPP 40 g/l 0.036 W/mK sp 20 mm
Details

The unmixed group KOMPAT DN 25 - 1” KA-125 is suitable for high temperature circuits (radiators, fan coils and cylinder loads).

The unit is supplied with right flow
