ECOMIX 230V Actuator

ECOMIX 230V Actuator

£81.42 GBP

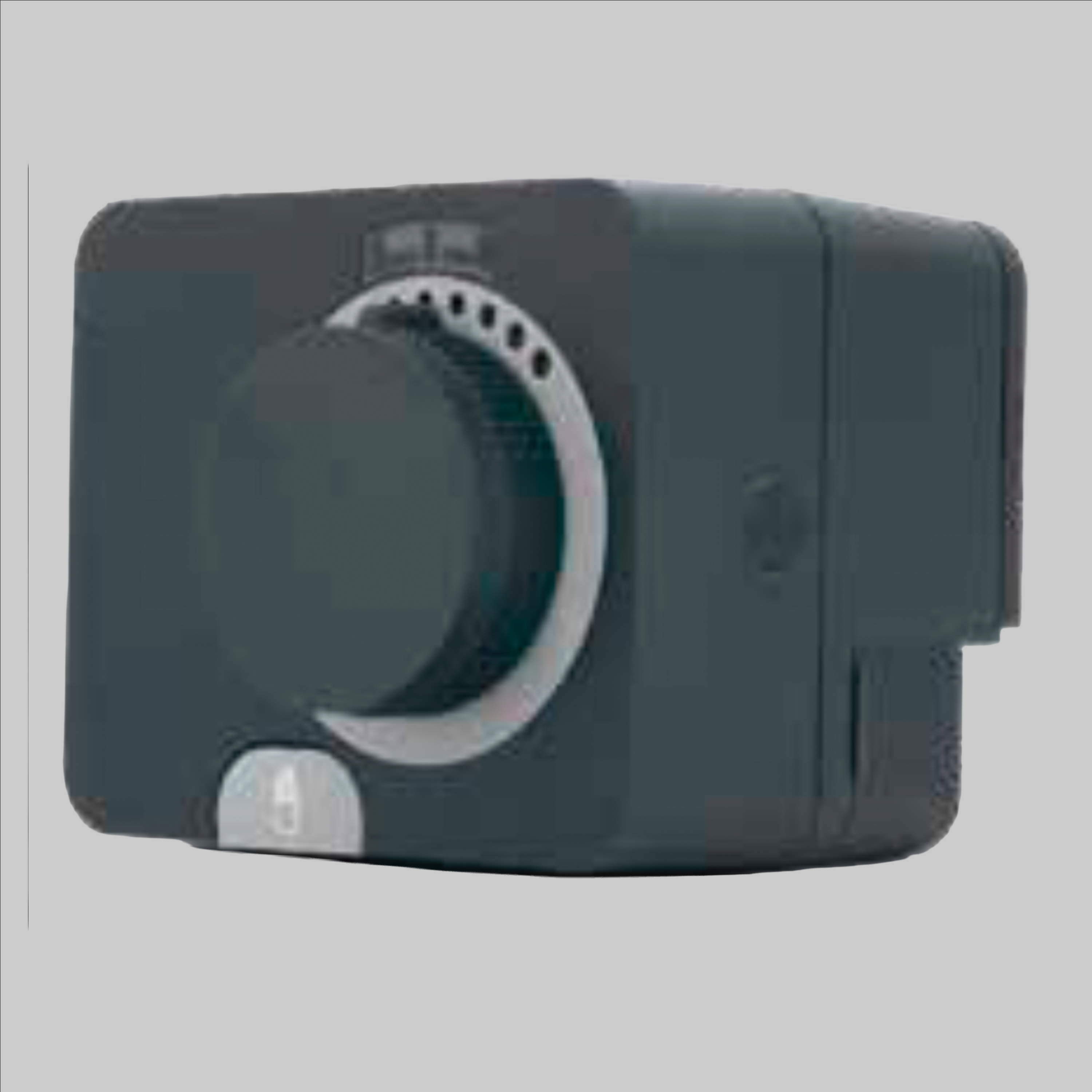

ECOMIX 230V is a compact rotary electric actuator for motorising the most popular types of mixing valves.

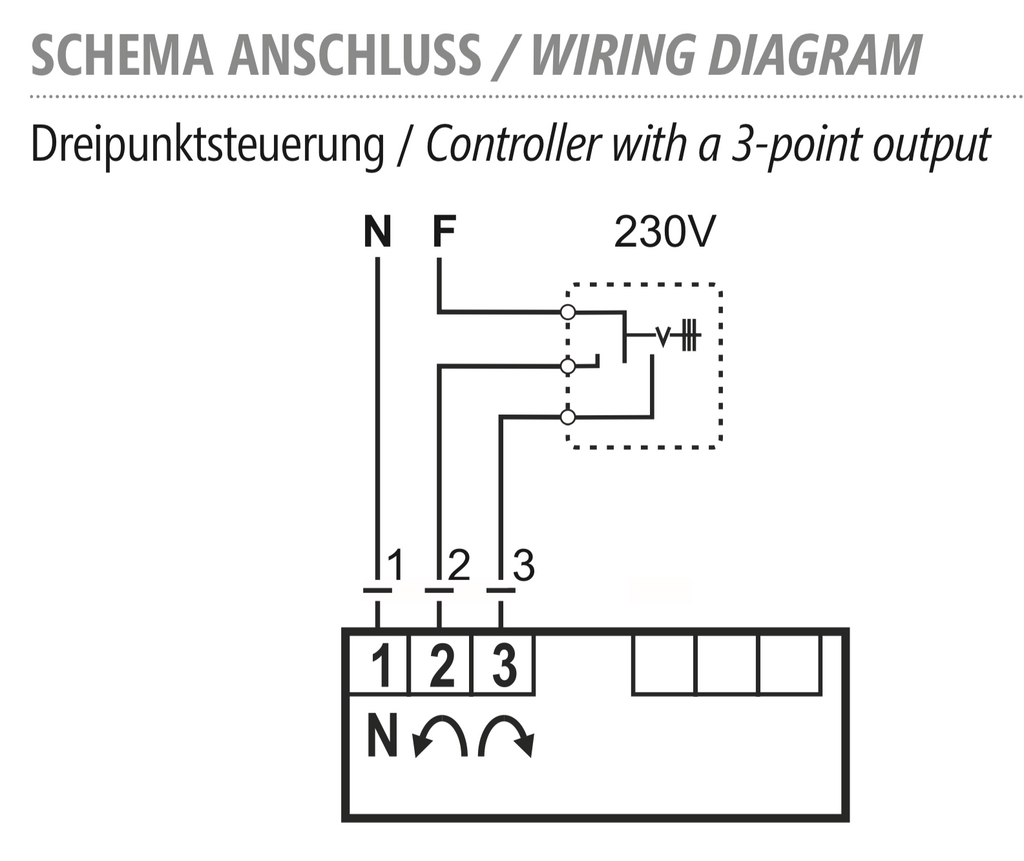

The rotary electric actuator can be operated by any controller with a 3-point output.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
ECOMIX 230V Actuator
  • ECOMIX 230V Actuator
  • ECOMIX 230V Actuator
  • ECOMIX 230V Actuator
  • ECOMIX 230V Actuator
ECOMIX 230V Actuator
Specs

Power Requirements: 230V - 50Hz
Power Consumption: 2.5 VA
Protection: IP42 (EN 60529)
Protection Class: II (EN 60730-1)
Angle of Rotation: 90 Degrees
Torque: 5 Nm
Running Time: 120 s
Manual Operating: Disengagement by rotary switch on housing
Dimensions: 81x95x91 mm
Benefits

• A single, central fixing bolt is sufficient for quick, direct fitting;
• The scale on the position indicator is reversible to suit the direction of rotation;
• In case of failure by the controller, the rotary electric actuator can be changed to manual position.
Details

The rotary electric actuator is mounted on the mixing valve by only one screw.

An anti-rotation bolt is supplied with the rotary electric actuator. The mounting position can be chosen in steps of 90°.

The ECOMIX 230V is a compact rotary electric actuator and can be inserted into the most of insulation covering.

The angle of rotation is limited to 90°. When the rotary electric actuator reaches either end position, the voltage supply is interrupted by limit switches. In case of failure by the controller, the rotary electric actuator can be put in to a manual mode by turning the button on the housing cover, which will disengage the gears. The rotary actuator can be used in manual way, acting on the automatic/manual button.
