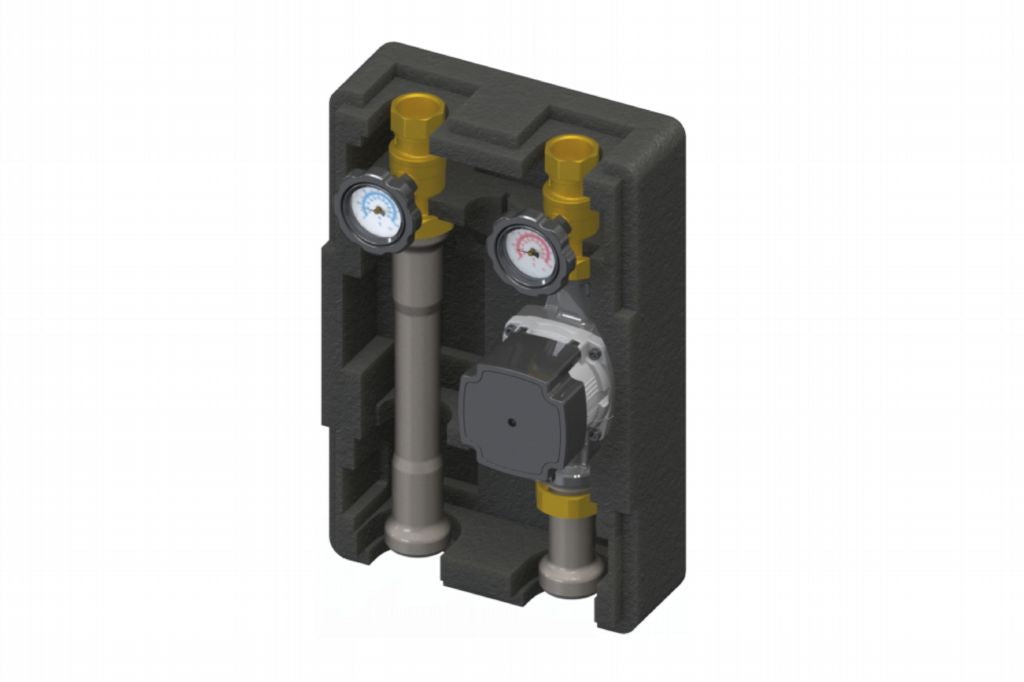

KS DN25 - High Temperature Pump Group - KOMPAT DN25

£133.39 GBP
Type

Grundfos Magna Pumps – High-Performance Solutions for Heating and Cooling Systems

Experience unmatched efficiency and reliability with Grundfos Magna Pumps, engineered to deliver optimal performance for both heating and cooling systems. Designed with the professional Heating Engineer in mind, these pumps combine smart engineering, ease of installation, and a long operational lifecycle to keep your systems running smoothly and efficiently.

  • High Efficiency: Reduces energy consumption, saving on operating costs while maintaining peak system performance.
  • Smart Design: Compact and intelligently engineered for seamless integration into existing heating and cooling setups.
  • Easy Installation: Streamlined design and user-friendly features ensure fast and hassle-free installation.
  • Long Lifecycle: Built with durable components to provide years of reliable operation, minimizing maintenance needs.
  • Optimized Performance: Delivers consistent flow and temperature control, ensuring comfort and efficiency across all systems.

Perfectly suited for professional Heating Engineers, Grundfos Magna Pumps are ideal for installation in both residential and commercial heating and cooling systems. Their versatile design allows them to handle a wide range of applications, providing reliable, energy-efficient performance for new projects or upgrades. Trust Grundfos Magna Pumps to simplify your work while delivering maximum system efficiency and reliability.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With

KS DN25 - High Temperature Pump Group - KOMPAT DN25
KS DN25 - High Temperature Pump Group - KOMPAT DN25
Specs

Pipework size: DN25
Connection: 1” F - 1 1/2” F
Output @ 20DT: 52.5 kW

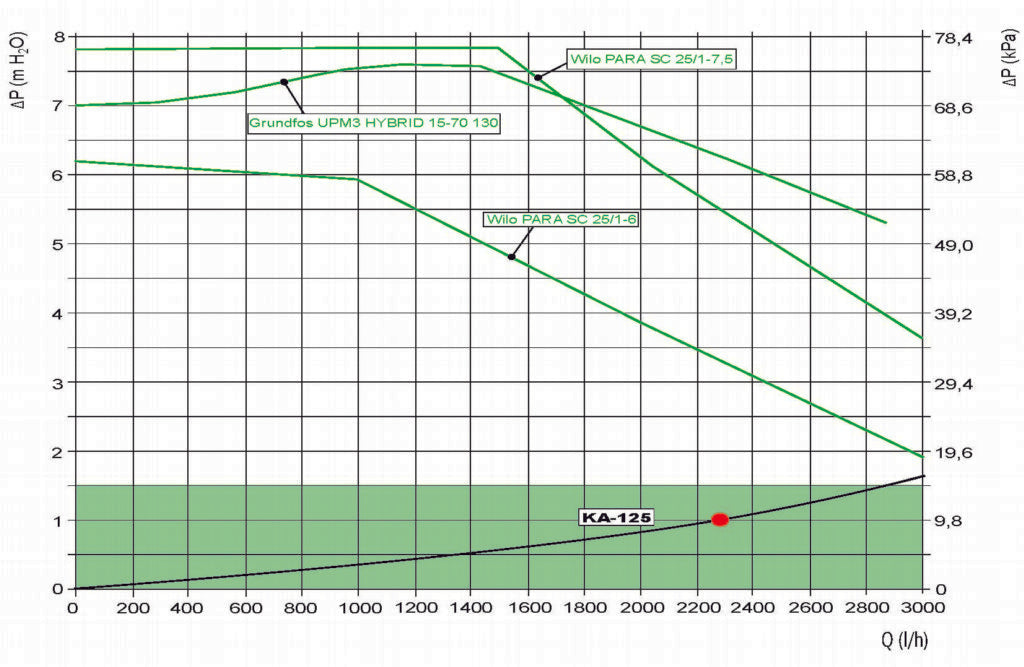

Flow Rate @ 20DT: 2260 l/h
Maximum Temperature: 95 Deg C
Insulation Material: EPP 40 g/l 0.036 W/mK sp 20mm
Check Valve Material: Acetal Copolymer
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM
Dimensions: 280x275x440 mm

Benefits

• Ready-to-install compact control and regulation unit
• Unit for high temperature systems
• Electronic pump, H = 180 mm, Connections 11/2"
• The change of flow from right to left can be made directly by the installer by inverting the pipe and circulator positions
• Extremely easy maintenance: Checking and replacing the pump without emptying the system
• Return pipe with check valve
• Seals secured by flat stops and seals
• Ball valves on the flow and return pipe with integrated thermometer
• Black EPP thermal insulation 40 g/l 0.036 W/mK sp 20 mm

Details

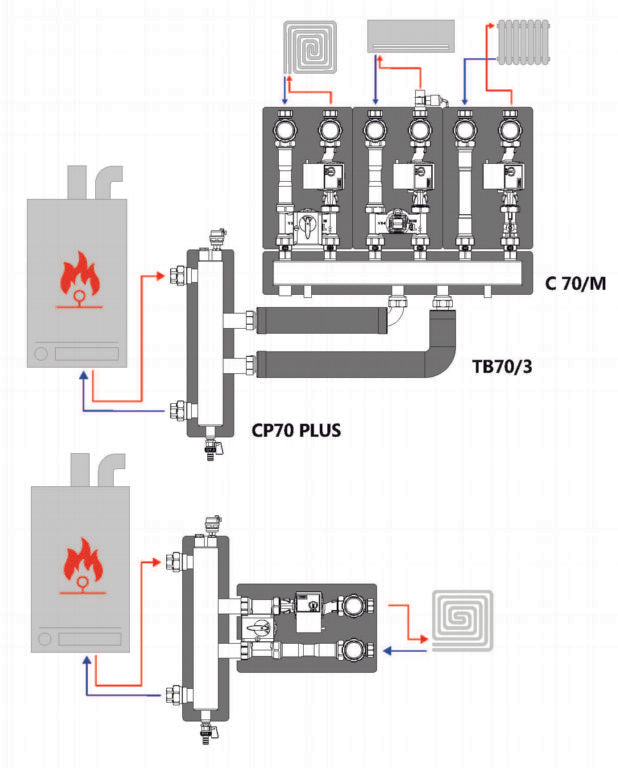

The unmixed group KOMPAT DN 25 - 1” KA-125 is suitable for high temperature circuits (radiators, fan coils and cylinder loads).

The unit is supplied with right flow
