KOMPAT DN32

Step 1 - Select Your Header

Step 2 - Select Your Manifold & Bend Kit

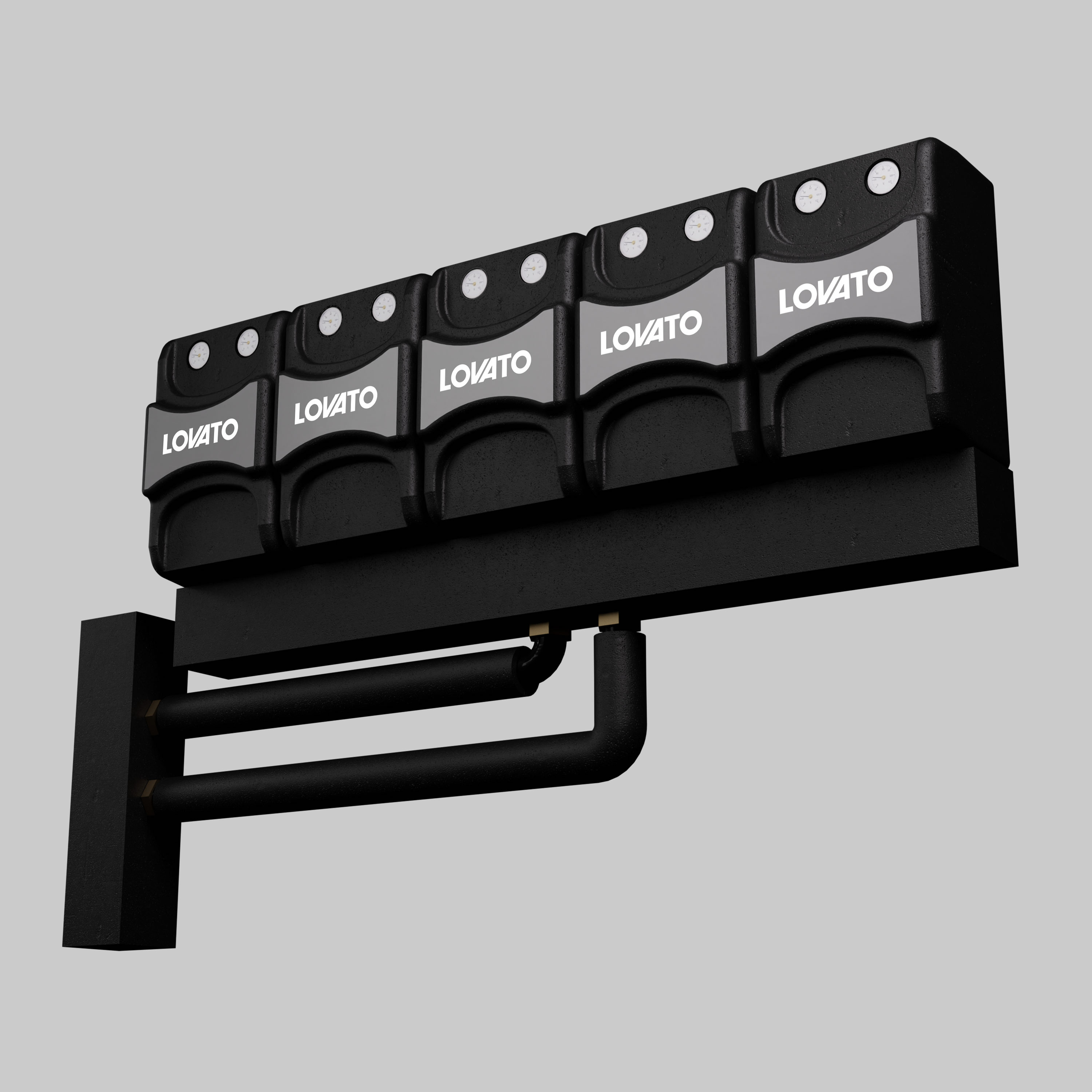

C90 Zone Manifolds - KOMPAT DN32

£252.54 GBP

The zone manifolds with double chambers DN 32 C90 may manage from 2 to 5 zones with different plant requirements;

• It allows the management of multiple zone plants.

• It is made in square section.

• Thermal insulation in black EPP.

• Delivery chamber of Ø 52 (DN50).

• Return chamber of Ø 41 (DN40).

£252.54 GBP

Step 3 - Select Your Pump Groups

KM3-125 Mixing Pump Group - KOMPAT DN32

£318.90 GBP

System with 3-way mixing valve controlled by an electric rotary actuator (accessory) and can be connected to any type of electronic control unit. The valve is equipped with 1 upper by-pass (system side) to take part of the water from the system return flow, allowing to recover heat and balance the temperature; ideal for floor systems.

Plus / Advantages:
• Compact control unit ready for installation.
• 3-way mixing valve controlled by an electric actuator
• Extremely easy maintenance: control and replacement of the pump without emptying the system
• Extremely easy to reverse the flow from right to left; can be carried out directly by the installer by inverting
the pipe and pump positions and acting on the valve
• Return pipe with check valve
• Seals assured by flat stops and seals
• ball valves on the flow and return with integrated thermometer
• Black EPP thermal insulation

£318.90 GBP

KS-125 Direct Pump Group - KOMPAT DN32

£205.80 GBP

The unmixed group KOMPAT DN 25 - 1” KS-125 is suitable for high temperature circuits (radiators, fan coils and cylinder loads).

The unit is supplied with right flow

Plus / Advantages:
• Ready-to-install compact control and regulation unit
- Unit for high temperature systems
- Electronic circulator, H = 180 mm, Connections 11/2"
- The change of flow from right to left can be made directly by the installer by inverting the pipe and circulator positions
- Extremely easy maintenance: Checking and replacing the pump without emptying the system
- Return pipe with check valve
- Seals secured by flat stops and seals
- Ball valves on the flow and return pipe with integrated thermometer
- Black EPP thermal insulation 40 g/l 0.036 W/mK sp 20 mm

£205.80 GBP

Step 4 - Select Your Accessories
