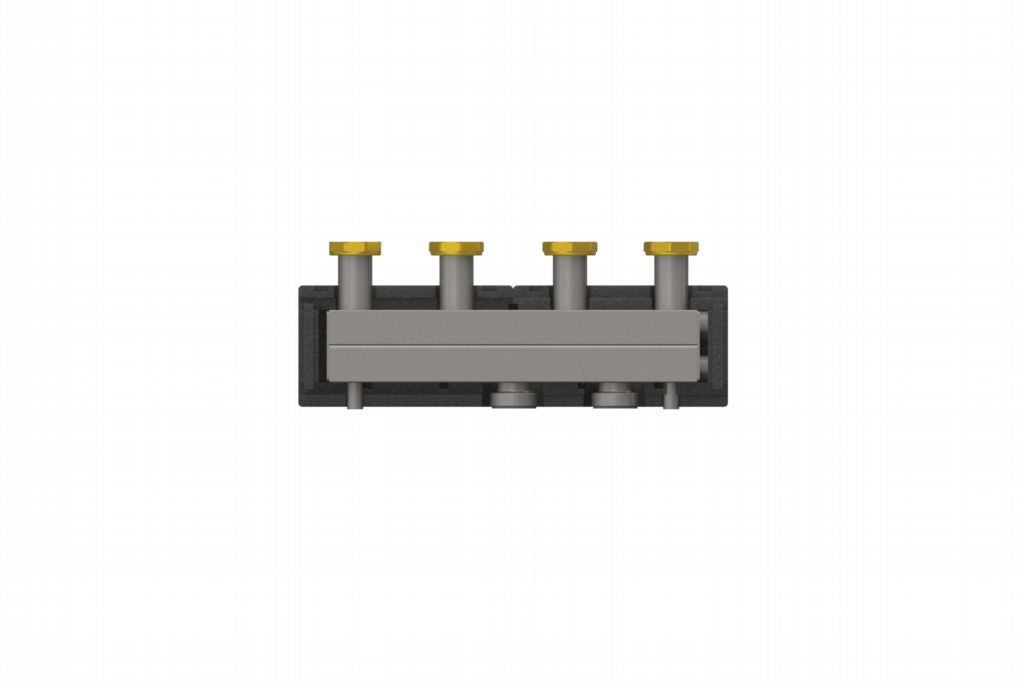

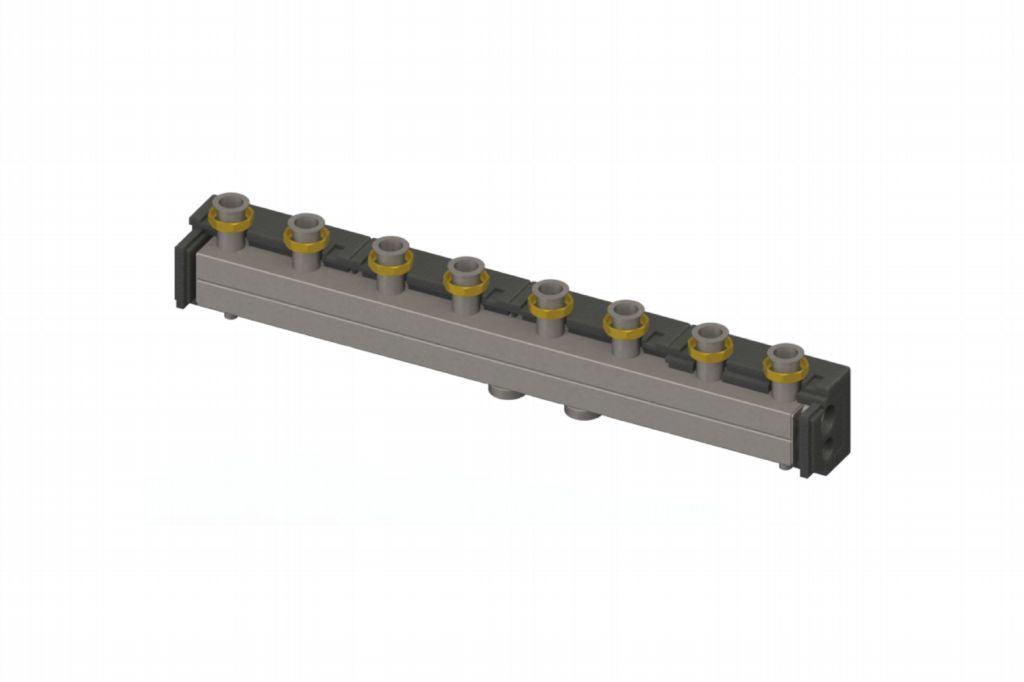

C90 Zone Manifolds - KOMPAT DN32

C90 Zone Manifolds - KOMPAT DN32

£252.54 GBP
Zones

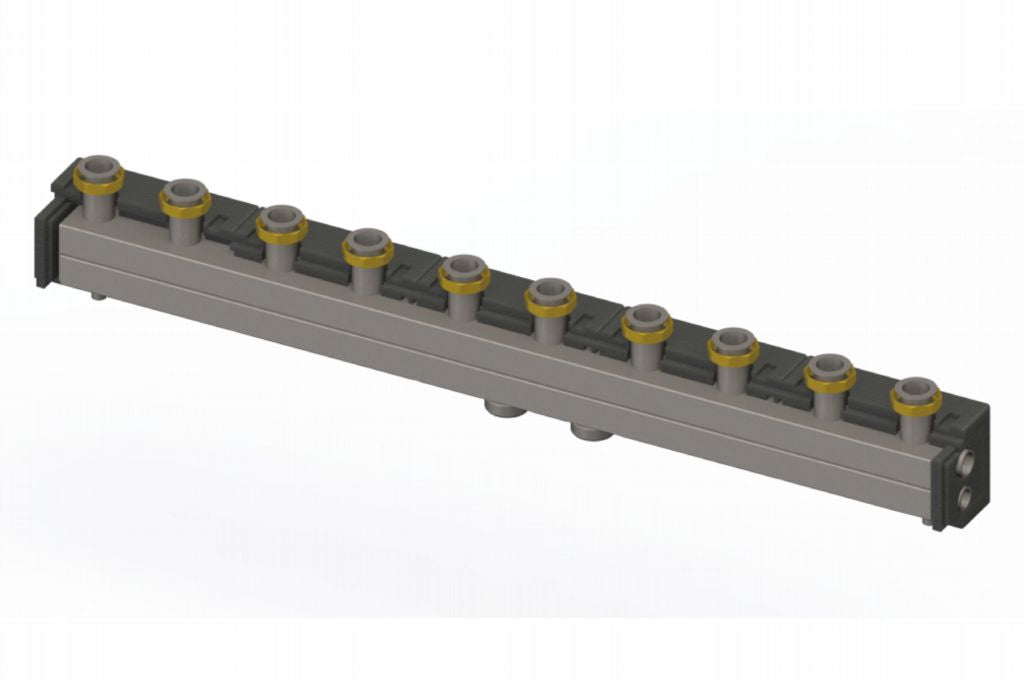

The zone manifolds with double chambers DN 32 C90 may manage from 2 to 5 zones with different plant requirements;

• It allows the management of multiple zone plants.

• It is made in square section.

• Thermal insulation in black EPP.

• Delivery chamber of Ø 52 (DN50).

• Return chamber of Ø 41 (DN40).

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
  • C90 Zone Manifolds - KOMPAT DN32
C90 Zone Manifolds - KOMPAT DN32
Specs

Pipework size: DN32
Output @ 20DT: 150 kW

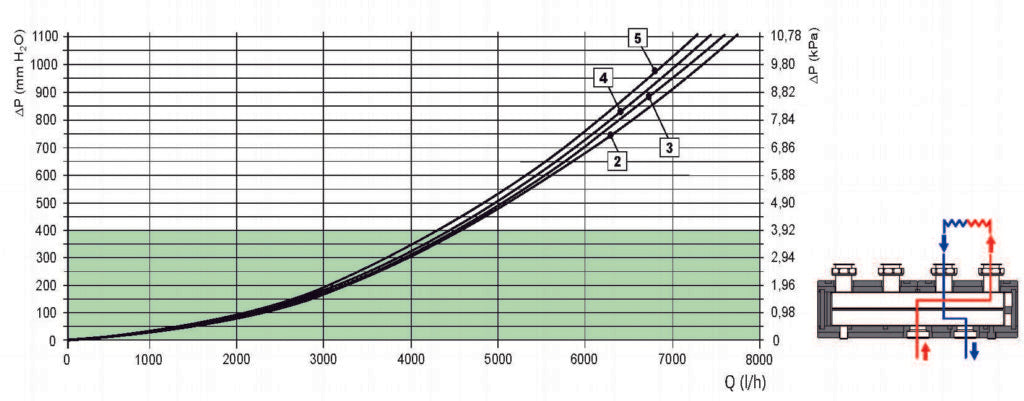

Flow Rate @ 20DT: 6500 l/h
Maximum Temperature: 110 Deg C
Maximum Pressure: 6 Bar
Insulation Material: EPP Black 40 g/l 0.039 W/mK sp 25mm
Circulation Unit Material: S235

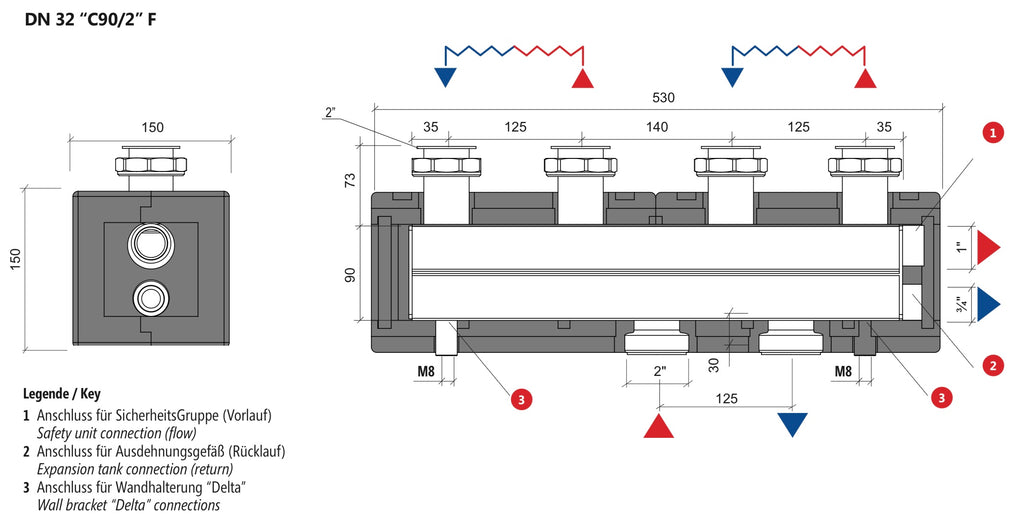

Dimensions -

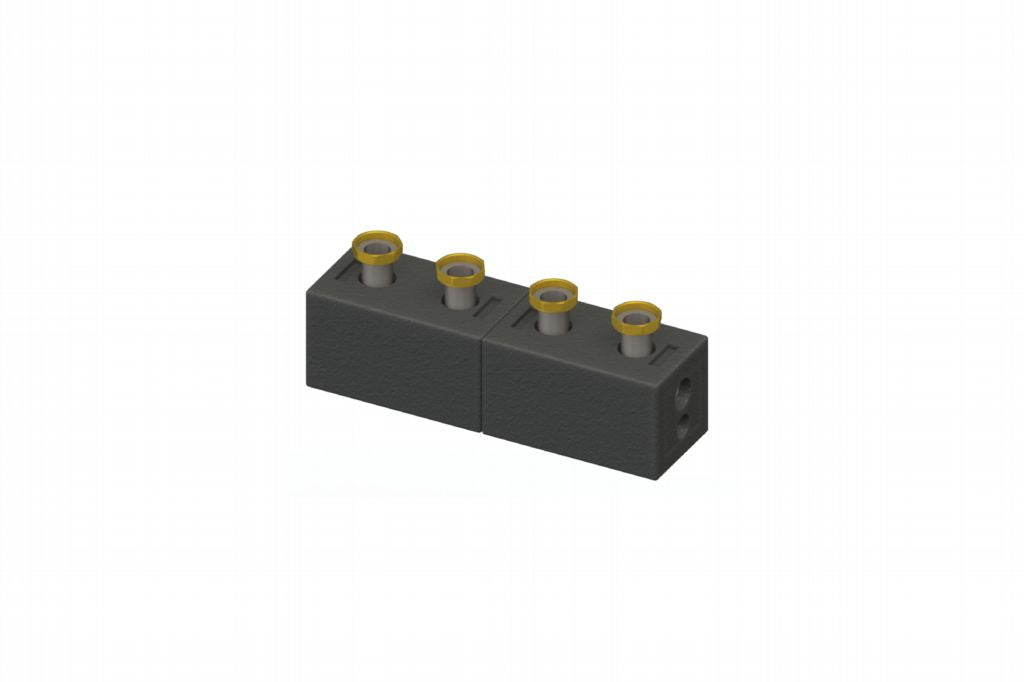

2 Zone: 165x210x540 mm

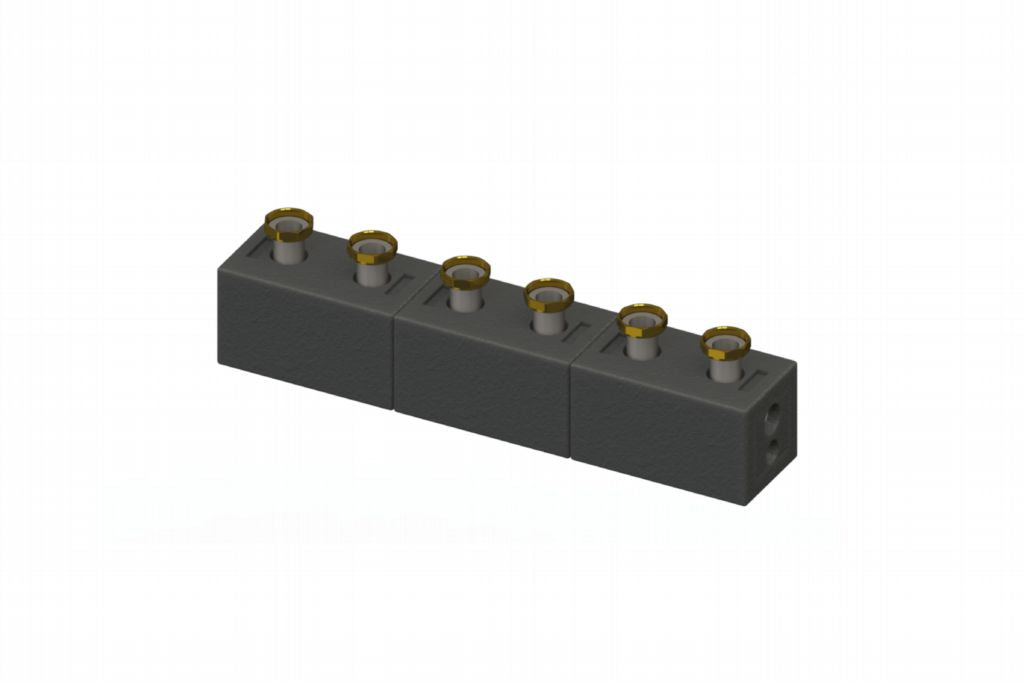

3 Zone: 165x210x800 mm

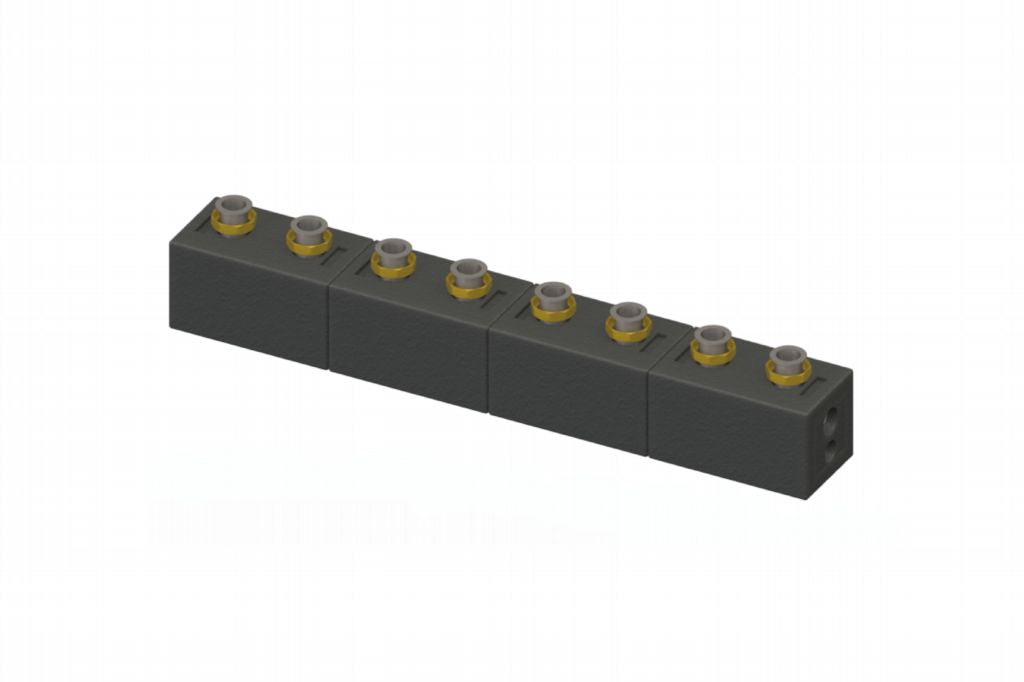

4 Zone: 165x210x1070 mm

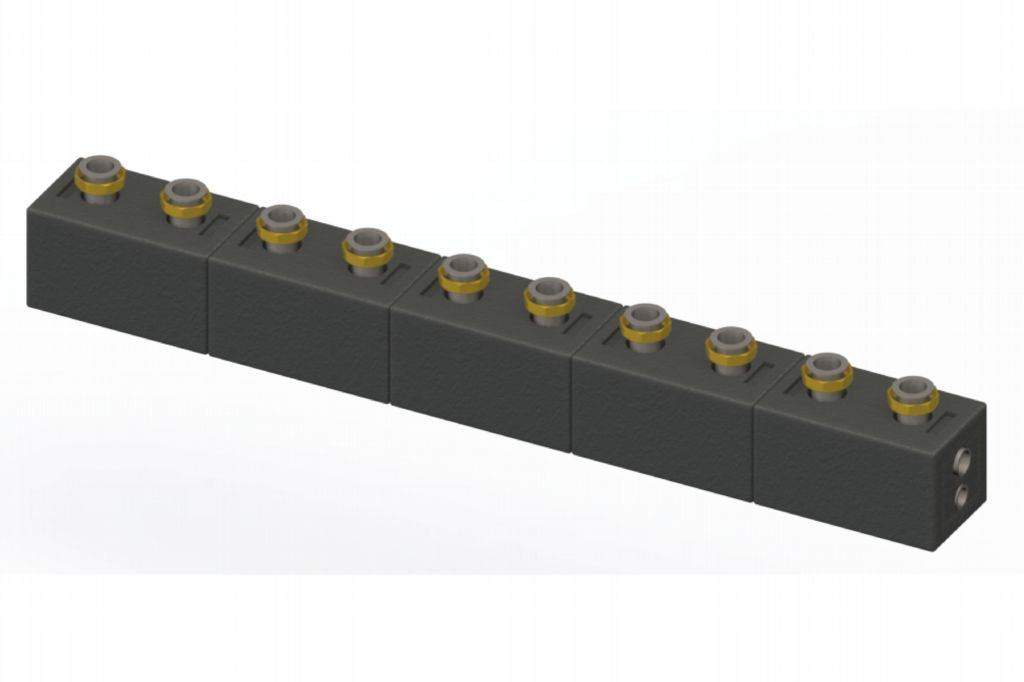

5 Zone: 165x210x1335 mm
Benefits

• It allows the management of multiple zone plants.

• It is made in square section.

• Thermal insulation in black EPP.

• Delivery chamber of Ø 52 (DN50).

• Return chamber of Ø 41 (DN40).
Details

The zone manifolds with double chambers DN 32 C90 may manage from 2 to 5 zones with different plant requirements;

• It allows the management of multiple zone plants.

• It is made in square section.

• Thermal insulation in black EPP.

• Delivery chamber of Ø 52 (DN50).

• Return chamber of Ø 41 (DN40).
