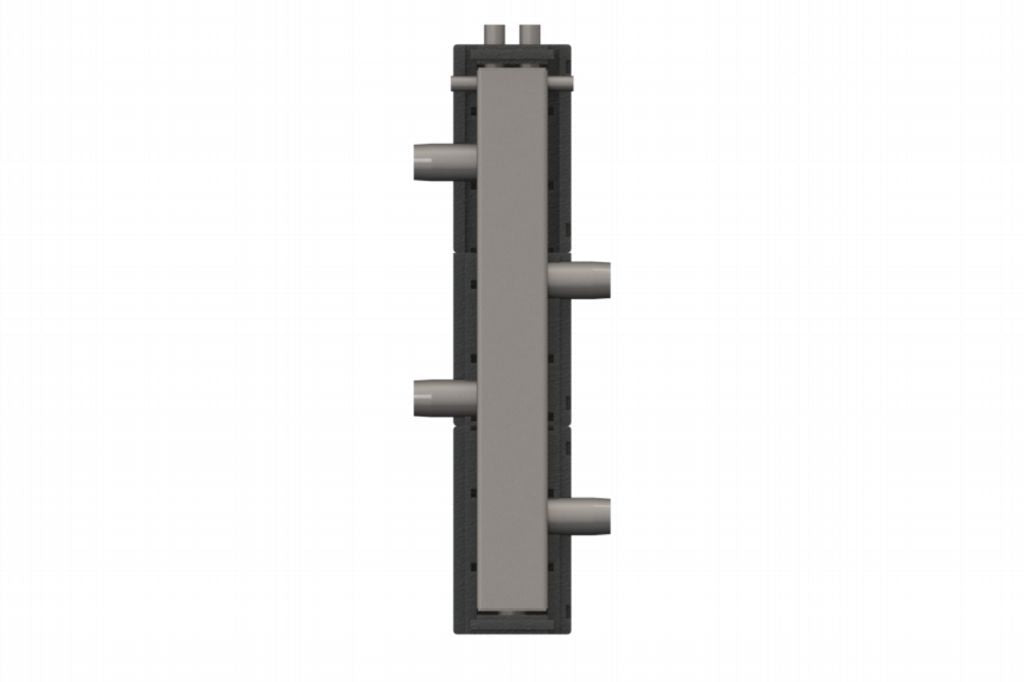

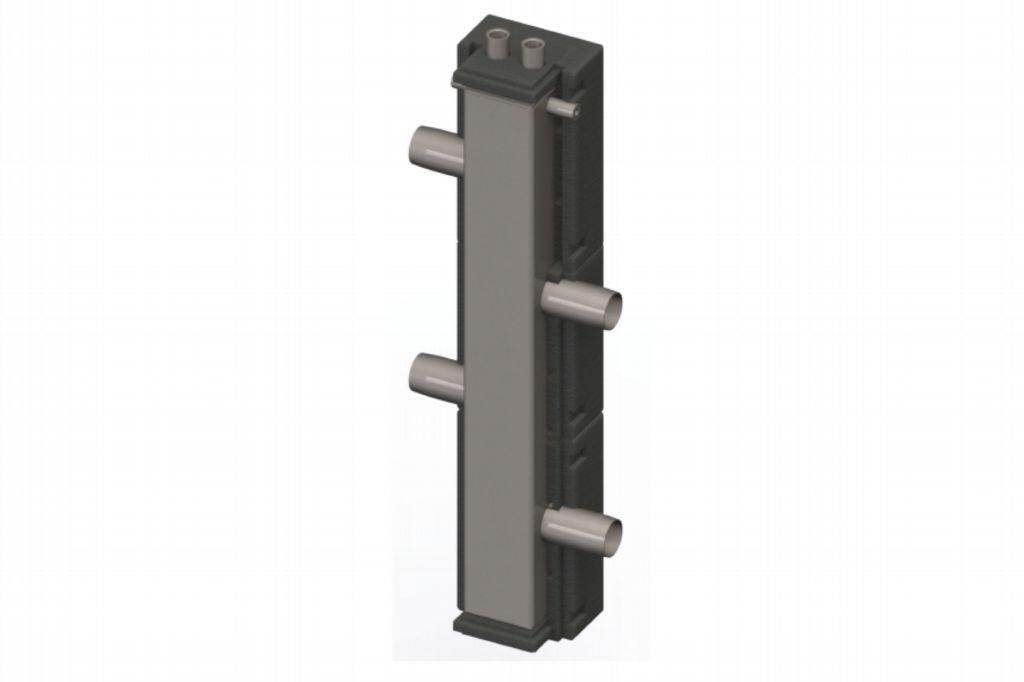

CP90 Low Loss Header - KOMPAT DN32

Name: CP90 Low Loss Header - KOMPAT DN32
Brand: Hamwic Technical Products
SKU: 49017057
Price: 266.59 GBP
Availability: InStock

£266.59 GBP

The CP90 hydraulic separator is an airlock designed to make independent, connected hydraulic circuits.

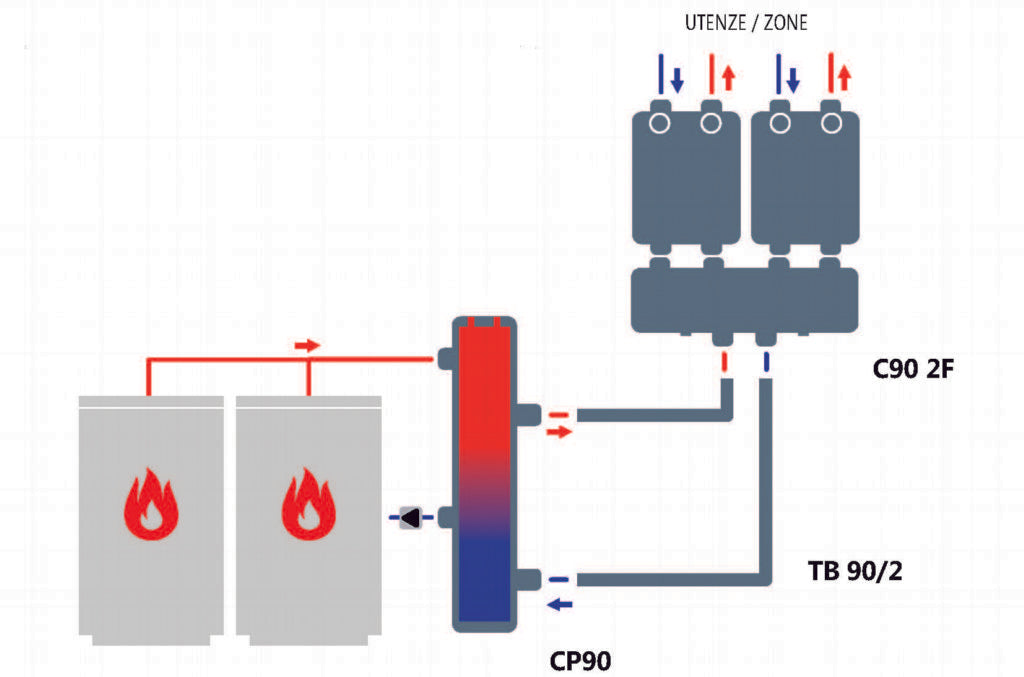

It is used when, in the same system, the pump of the primary circuit (energy source) and one or more pumps of the secondary circuit (utilities) interact.
its use helps to eliminate problems related to variations in flow rate and head of the circuits.

In addition, the separator performs the function of deaerator.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With

Specs

Pipework size: DN32
Connection: 1 1/2” M
Output @ 20DT: 150 kW
Flow Rate @ 20DT: 6500 l/h
Maximum Temperature: 110 Deg C
Maximum Pressure: 6 Bar
Internal Speed: 0.26 m/s
Speed at Entrance: 1.30 m/s
Insulation Material: EPP 40 g/l 0.036 W/mK sp 25mm
Material: Steel - S235
Surface Treatment: Cataphoresis Anti-Corrosion
Dimensions: 130x535x196.5 mm

Benefits

• It renders connected independent hydraulic circuits.
• It guarantees that secondary circuits operate efficiently
which ensure the hydraulic need of air-conditioning
systems.
• Air vent connection and draining of plant impurities
(muds).
• Thermal insulation in black EPP.
• Connection kit to zone manifold.

Details

The CP90 hydraulic separator is an airlock designed to make independent, connected hydraulic circuits.

It is used when, in the same system, the pump of the primary circuit (energy source) and one or more pumps of the secondary circuit (utilities) interact.
its use helps to eliminate problems related to variations in flow rate and head of the circuits.

In addition, the separator performs the function of deaerator.
