KS-125 Direct Pump Group - KOMPAT DN32

KS-125 Direct Pump Group - KOMPAT DN32

£205.80 GBP
Type
The unmixed group KOMPAT DN 25 - 1” KS-125 is suitable for high temperature circuits (radiators, fan coils and cylinder loads).

The unit is supplied with right flow
Plus / Advantages:
• Ready-to-install compact control and regulation unit
- Unit for high temperature systems
- Electronic circulator, H = 180 mm, Connections 11/2"
- The change of flow from right to left can be made directly by the installer by inverting the pipe and circulator positions
- Extremely easy maintenance: Checking and replacing the pump without emptying the system
- Return pipe with check valve
- Seals secured by flat stops and seals
- Ball valves on the flow and return pipe with integrated thermometer
- Black EPP thermal insulation 40 g/l 0.036 W/mK sp 20 mm

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
Black and gray electronic device with yellow lights on a white background
  • Black and gray electronic device with yellow lights on a white background
  • Mechanical device with gauges and pipes on a white background
  • Mechanical device with two cylindrical components and a switch on a white background
  • KS-125 Direct Pump Group - KOMPAT DN32
  • KS-125 Direct Pump Group - KOMPAT DN32
  • KS-125 Direct Pump Group - KOMPAT DN32
  • Black and gray electronic device with yellow lights on a white background
  • Mechanical device with gauges and pipes on a white background
  • Mechanical device with two cylindrical components and a switch on a white background
  • KS-125 Direct Pump Group - KOMPAT DN32
  • KS-125 Direct Pump Group - KOMPAT DN32
  • KS-125 Direct Pump Group - KOMPAT DN32
Black and gray electronic device with yellow lights on a white background
Specs

Pipework size: DN32
Connection: 1 1/4” F - 2” F
Output @ 20DT: 69.7 kW
Flow Rate @ 20DT: 3000 l/h
Maximum Temperature: 95 Deg C
Insulation Material: EPP 40 g/l 0.036 W/mK sp 20mm
Check Valve Material: Acetal Copolymer
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM

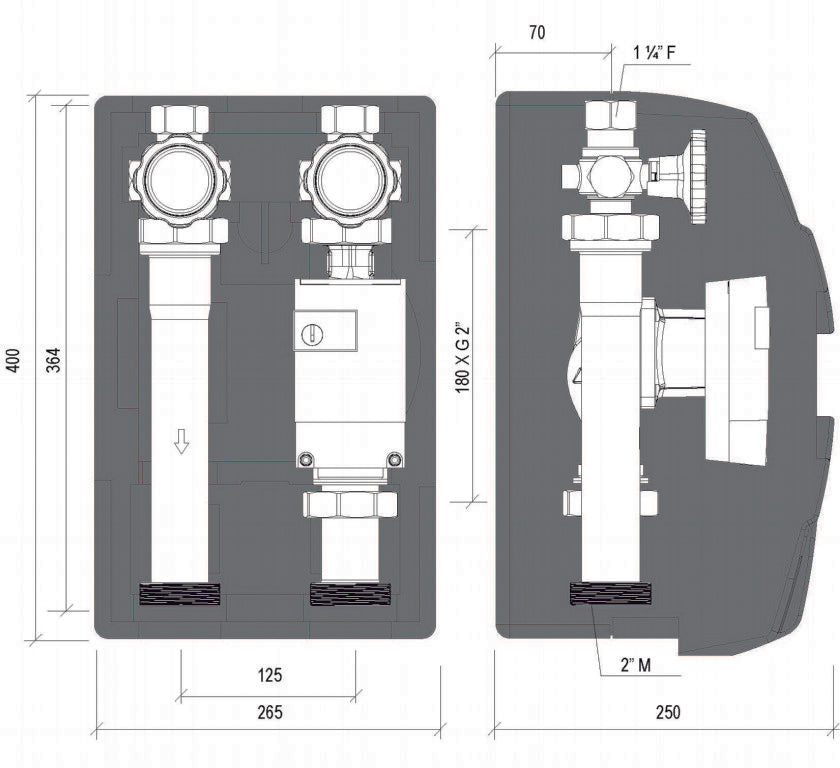

Dimensions: 280x275x440 mm
Benefits

• Compact control unit ready for installation;
• 3-way mixing valve with rotary electric actuator;
• Electronic circulating pump H = 180 mm, Connections 2”;
• Easy maintenance: pump can be changed and controlled without emptying the plant;
• Easy reversal of flow position from right to left. It may be converted to left flow by the installer inverting the positions of the return tube and pump and positioning the valve
• Return pipe with check valve;
• All seals are assured by flat fittings and gaskets;
• Flanged ball valves with thermometers on flow/return side;
• Thermal insulation in black EPP.
Details

The direct unit KOMPAT DN 32 - 1 ¼” “KS-125” is a unit suitable for high temperature circuits (radiators, fan coils and boilers).

The standard unit is supplied with right flow.
