MK3 DN32 Mixing Valve - KOMPAT DN32

MK3 DN32 Mixing Valve - KOMPAT DN32

£144.00 GBP

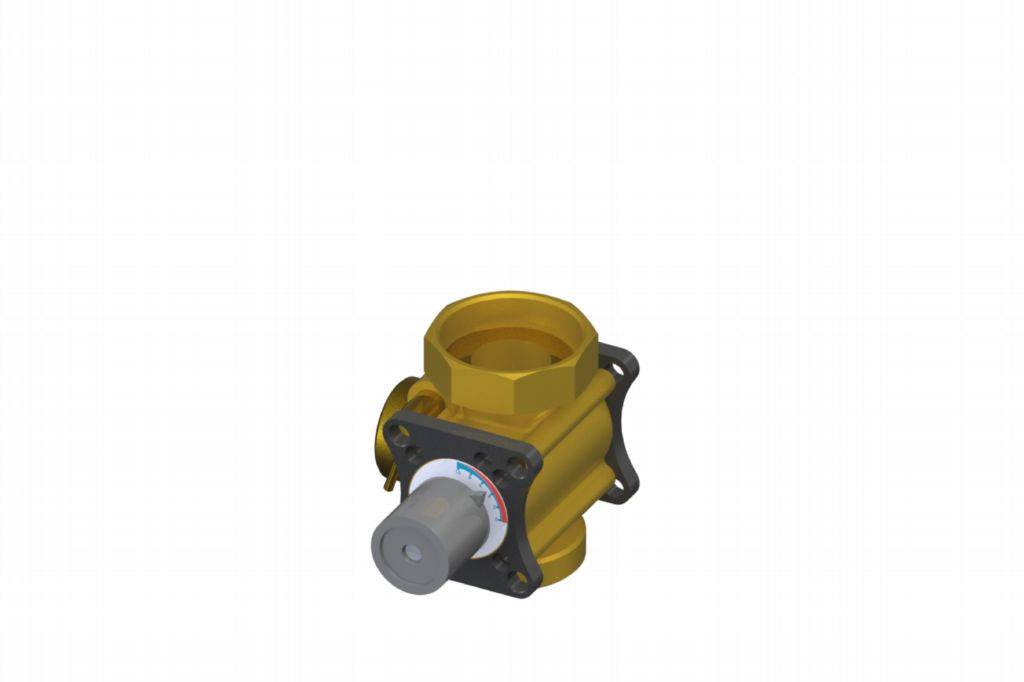

The 3-way mixing valve DN 32 - 1¼” MK3 is extremely compact with high hydraulic performance.

The valve is supplied with right flow; through easy operations it is possible to convert to left.

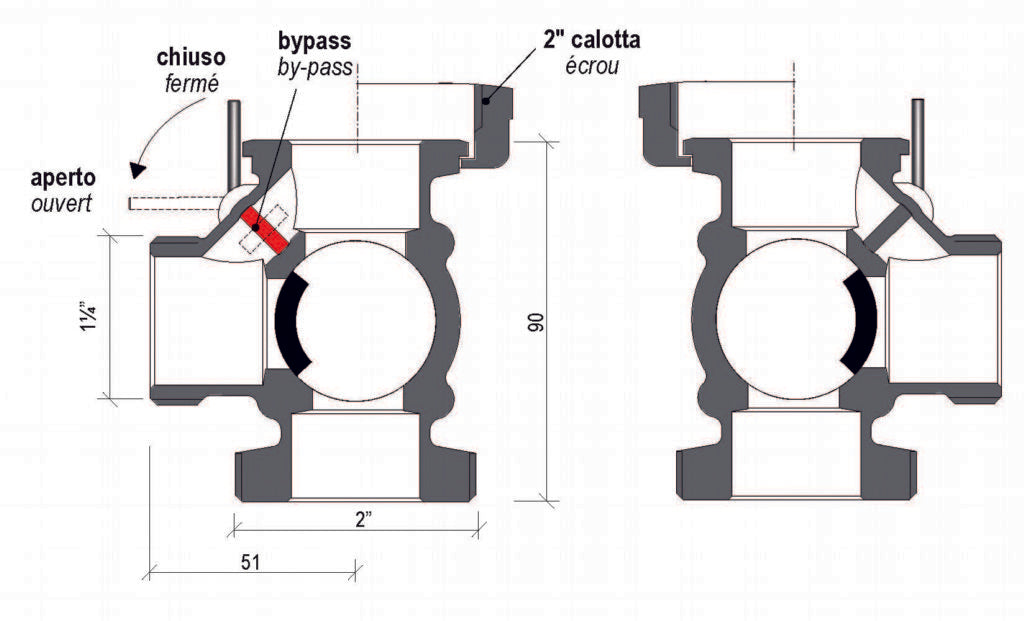

The bypass (plant side) takes a part of return water plant side, allows to recover the heat and balances the temperature of the underfloor heating system.

The valve is designed for adjustment by rotary electric actuator.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
MK3 DN32 Mixing Valve - KOMPAT DN32
  • MK3 DN32 Mixing Valve - KOMPAT DN32
  • MK3 DN32 Mixing Valve - KOMPAT DN32
  • MK3 DN32 Mixing Valve - KOMPAT DN32
  • MK3 DN32 Mixing Valve - KOMPAT DN32
  • MK3 DN32 Mixing Valve - KOMPAT DN32
  • MK3 DN32 Mixing Valve - KOMPAT DN32
  • MK3 DN32 Mixing Valve - KOMPAT DN32
  • MK3 DN32 Mixing Valve - KOMPAT DN32
MK3 DN32 Mixing Valve - KOMPAT DN32
Specs

Pipework size: DN32
Connection: 2” F - 2” M
KVS: 17
Maximum Temperature: 110 Deg C
Maximum Pressure: 6 Bar
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM
Benefits

• Extremely compact with high hydraulic performance;
• 3-way mixing valve with integrated bypass plant side;
• Easy to change flow position from right to left;
• Integrated bypass can be excluded;
• Flanged connection G 2” for direct connection to the circulating pump.
Details

The 3-way mixing valve DN 32 - 1¼” MK3 is extremely compact with high hydraulic performance.

The valve is supplied with right flow; through easy operations it is possible to convert to left.

The bypass (plant side) takes a part of return water plant side, allows to recover the heat and balances the temperature of the underfloor heating system.

The valve is designed for adjustment by rotary electric actuator.
