KM3-125 Mixing Pump Group - KOMPAT DN32

KM3-125 Mixing Pump Group - KOMPAT DN32

£318.90 GBP
Type
System with 3-way mixing valve controlled by an electric rotary actuator (accessory) and can be connected to any type of electronic control unit. The valve is equipped with 1 upper by-pass (system side) to take part of the water from the system return flow, allowing to recover heat and balance the temperature; ideal for floor systems.
Plus / Advantages:
• Compact control unit ready for installation.
• 3-way mixing valve controlled by an electric actuator
• Extremely easy maintenance: control and replacement of the pump without emptying the system
• Extremely easy to reverse the flow from right to left; can be carried out directly by the installer by inverting
the pipe and pump positions and acting on the valve
• Return pipe with check valve
• Seals assured by flat stops and seals
• ball valves on the flow and return with integrated thermometer
• Black EPP thermal insulation

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
Mechanical valve or pump component on a white background
  • Mechanical valve or pump component on a white background
  • Black and gray electronic device with yellow lights on a white background
  • Mechanical valve assembly with pipes and connectors on a white background
  • KM3-125 Mixing Pump Group - KOMPAT DN32
  • KM3-125 Mixing Pump Group - KOMPAT DN32
  • KM3-125 Mixing Pump Group - KOMPAT DN32
  • Mechanical valve or pump component on a white background
  • Black and gray electronic device with yellow lights on a white background
  • Mechanical valve assembly with pipes and connectors on a white background
  • KM3-125 Mixing Pump Group - KOMPAT DN32
  • KM3-125 Mixing Pump Group - KOMPAT DN32
  • KM3-125 Mixing Pump Group - KOMPAT DN32
Mechanical valve or pump component on a white background
Specs

Pipework size: DN32
Connection: 1 1/4” F - 2” F
Output @ 20DT: 55.8 kW
Flow Rate @ 20DT: 2400 l/h
Maximum Temperature: 95 Deg C
Insulation Material: EPP 40 g/l 0.036 W/mK sp 20mm
Check Valve Material: Acetal Copolymer
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM

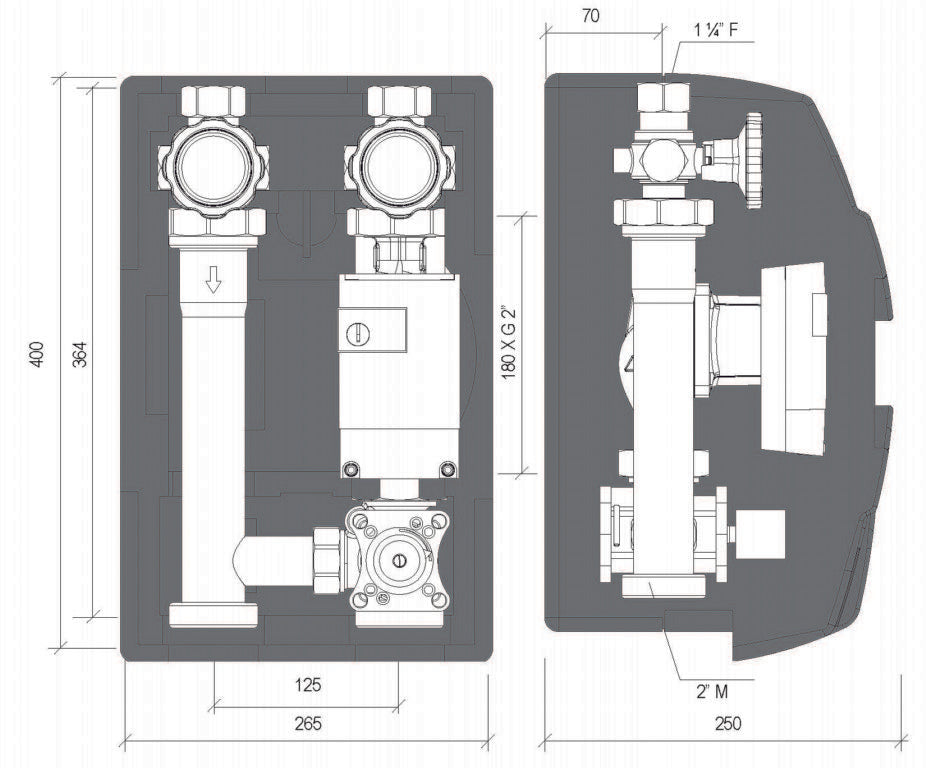

Dimensions: 295x280x450 mm
Benefits

• Compact control unit ready for installation;
• 3-way mixing valve with rotary electric actuator;
• Electronic circulating pump H = 180 mm, Connections 2”;
• Easy maintenance: pump can be changed and controlled without emptying the plant;
• Easy reversal of flow position from right to left. It may be converted to left flow by the installer inverting the positions of the return tube and pump and positioning the valve
• Return pipe with check valve;
• All seals are assured by flat fittings and gaskets;
• Flanged ball valves with thermometers on flow/return side;

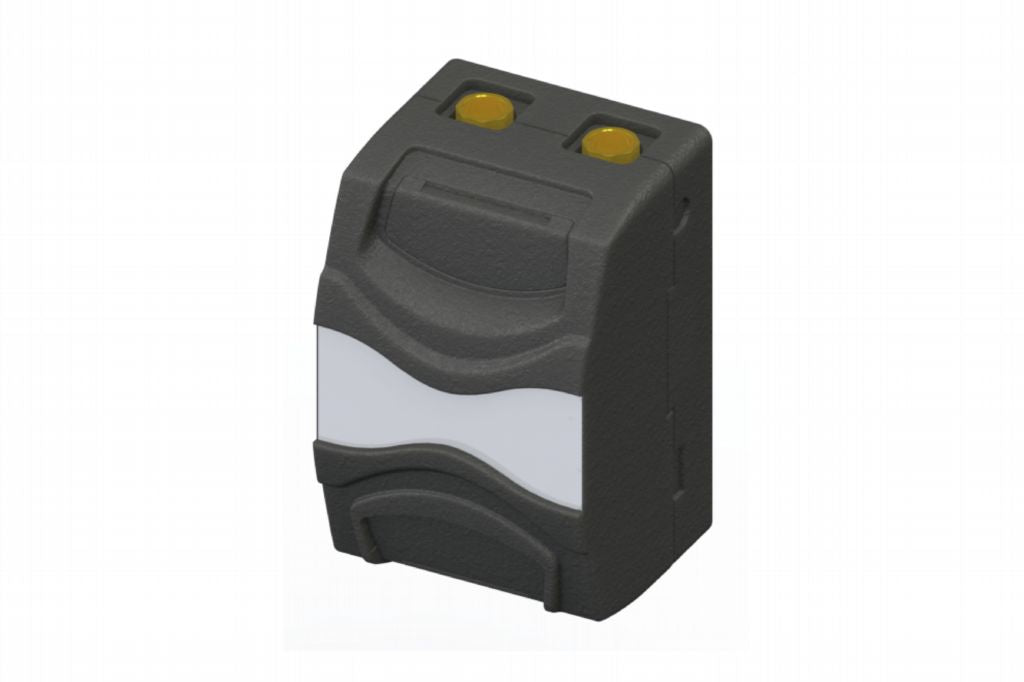

• Thermal insulation in black EPP.
Details

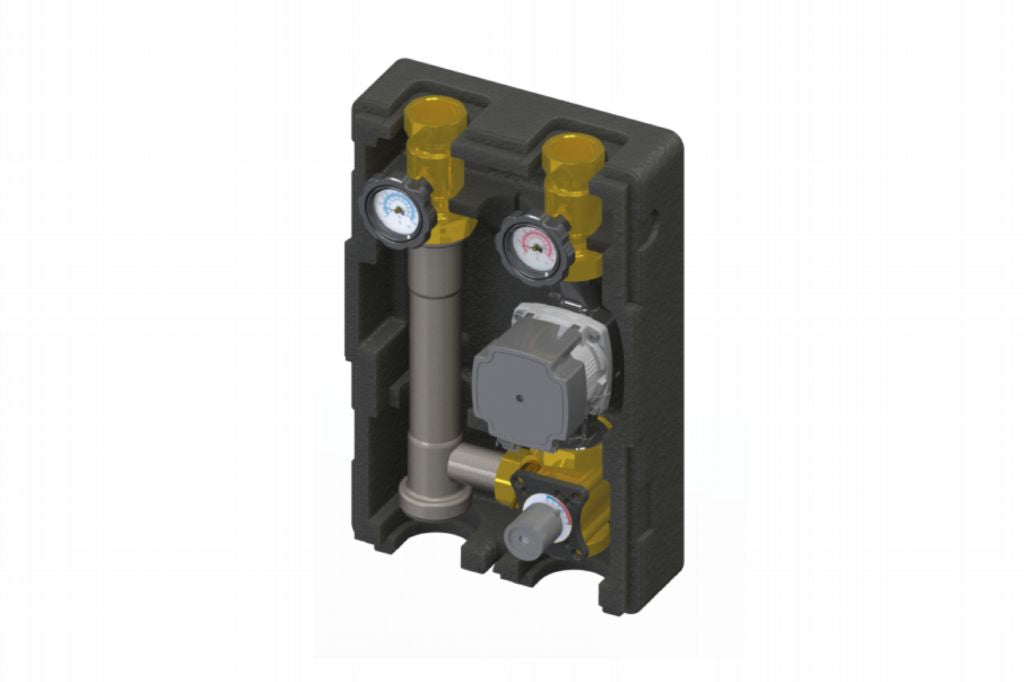

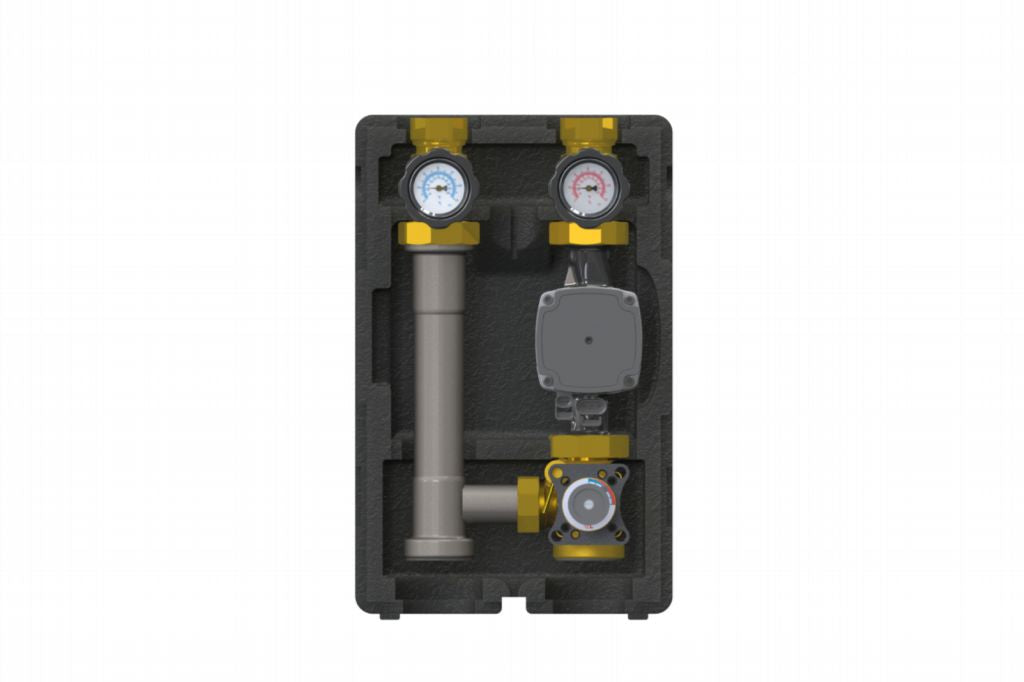

KOMPAT DN 32 - 1”¼ KM3-125 is a unit suitable for underfloor heating systems.

It has a 3-way mixing valve controlled by a rotary electric actuator and is connectable to any type of controller.

The valve has 1 bypass:

- upper bypass (plant side): takes a part of the plant’s return water and runs it into flow, thus allows the recovery of heat and the balance of flow temperature; ideal for underfloor heating systems;

The standard unit is supplied with right flow.
