The Lovato HS 325 DN65 hydraulic separator is a compensation chamber designed to make hydraulic circuits independents. It is used when, in the same system, the pump of the primary circuit (energy source) and one or more pumps of the secondary circuit (heating circuit) interact; its use helps to eliminate the problems of the variations of the flow rate and head of the circuits.
Deflector for stratification The main chamber conformation guarantees low speed of the heat transfer fluid reducing the mixing processes.
Air separator and dirt separator function Inside the compensation chamber there is a deflector that improves the stratification and a “flow breaker” that allows the sedimentation of the mud. Both systems also facilitate the breaking of the air microbubbles and their expulsion
The distribution modular zone manifold Lovato C DN65 2 and 3 circuits is made with cylindrical flow and return tubes, completely separated and uinsulated. The main connections to the heat generator and to the secondary circuit are flanged.
Suitable for all applications.

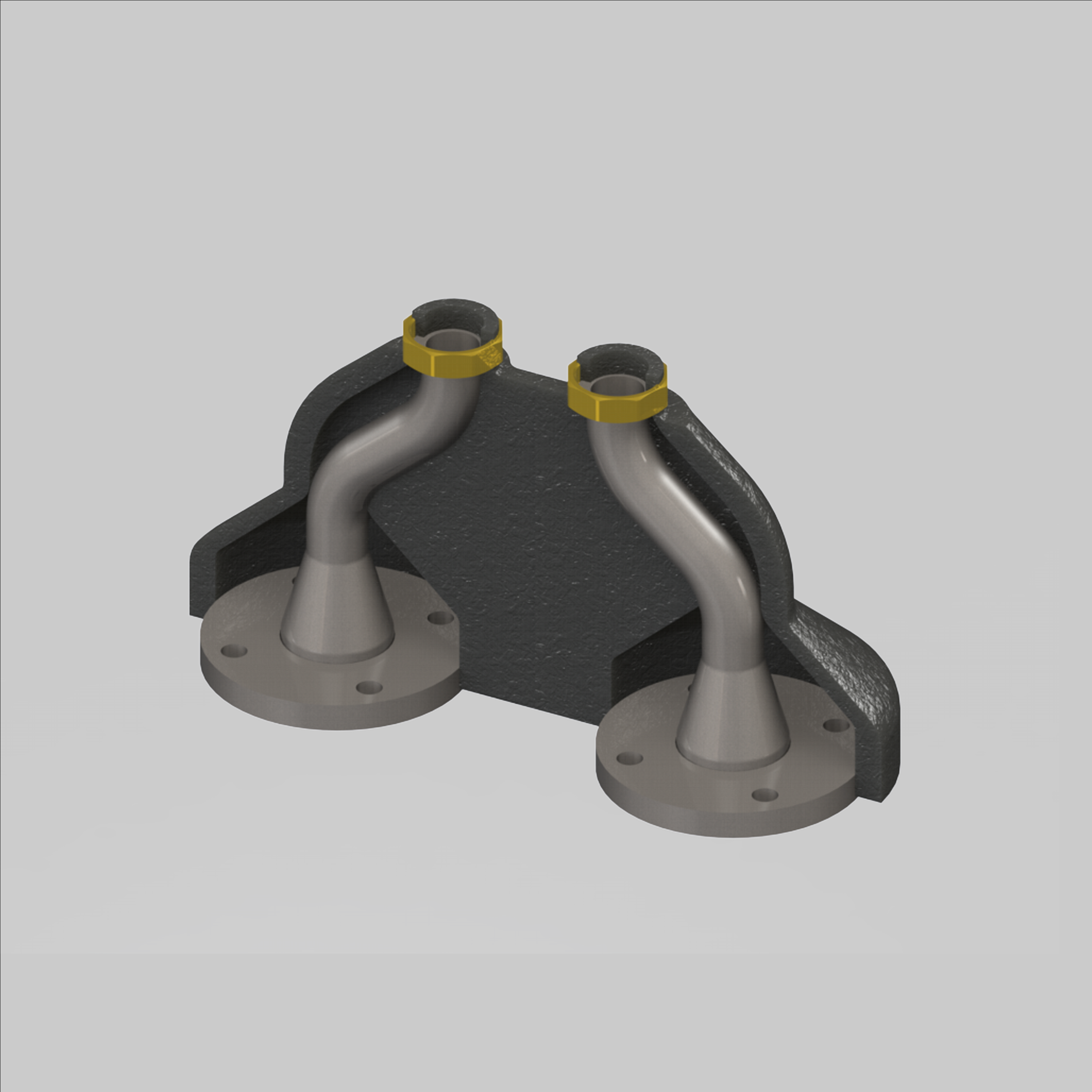

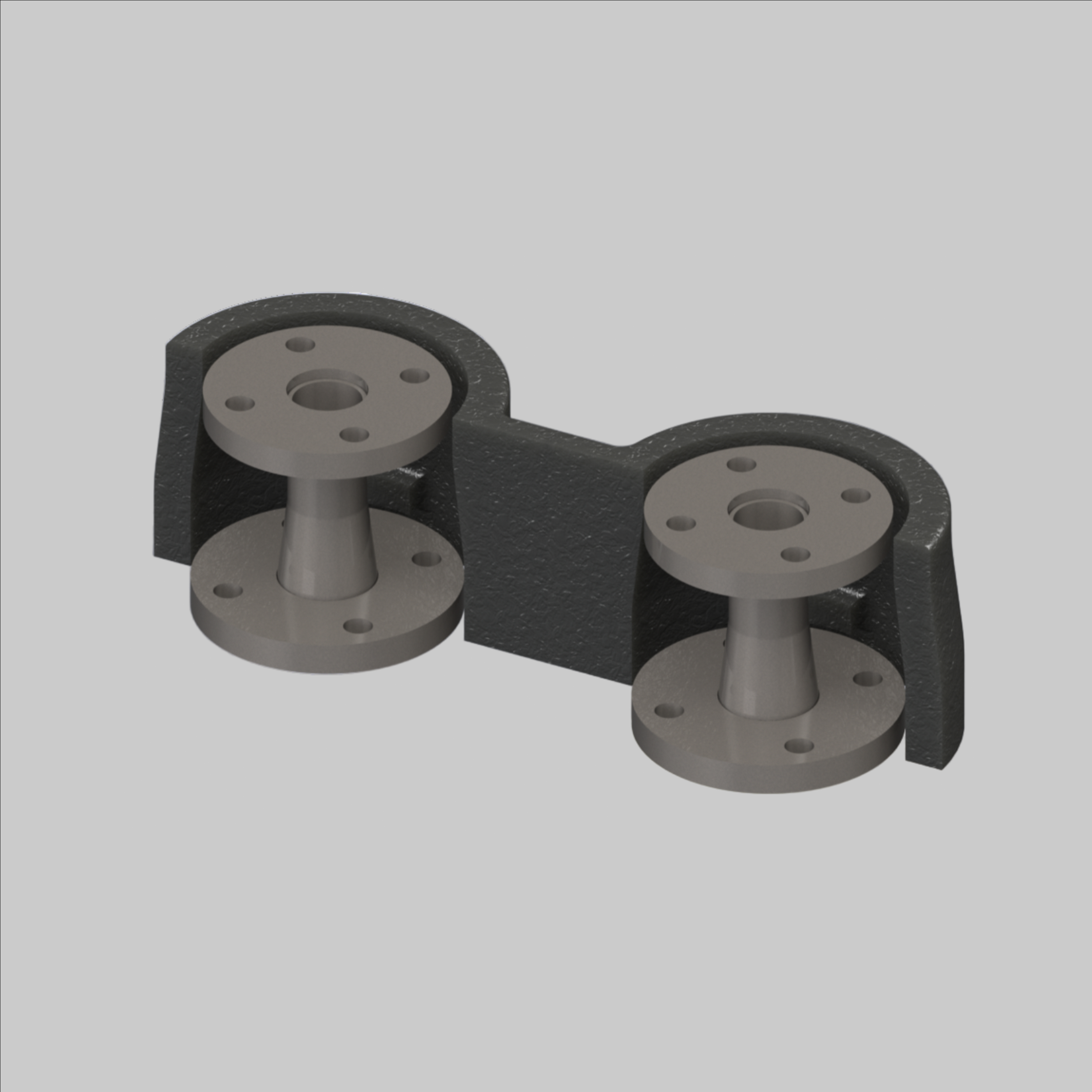

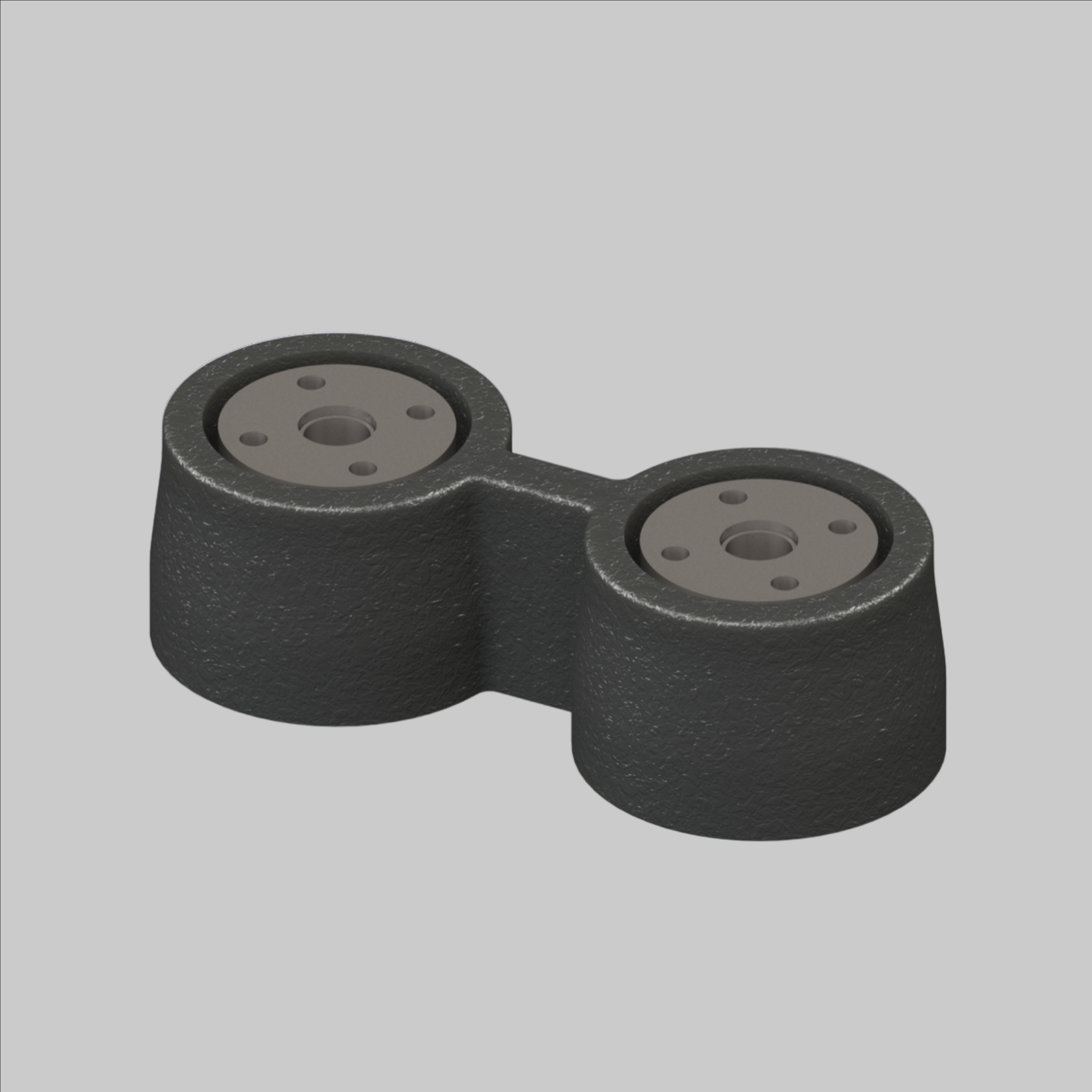

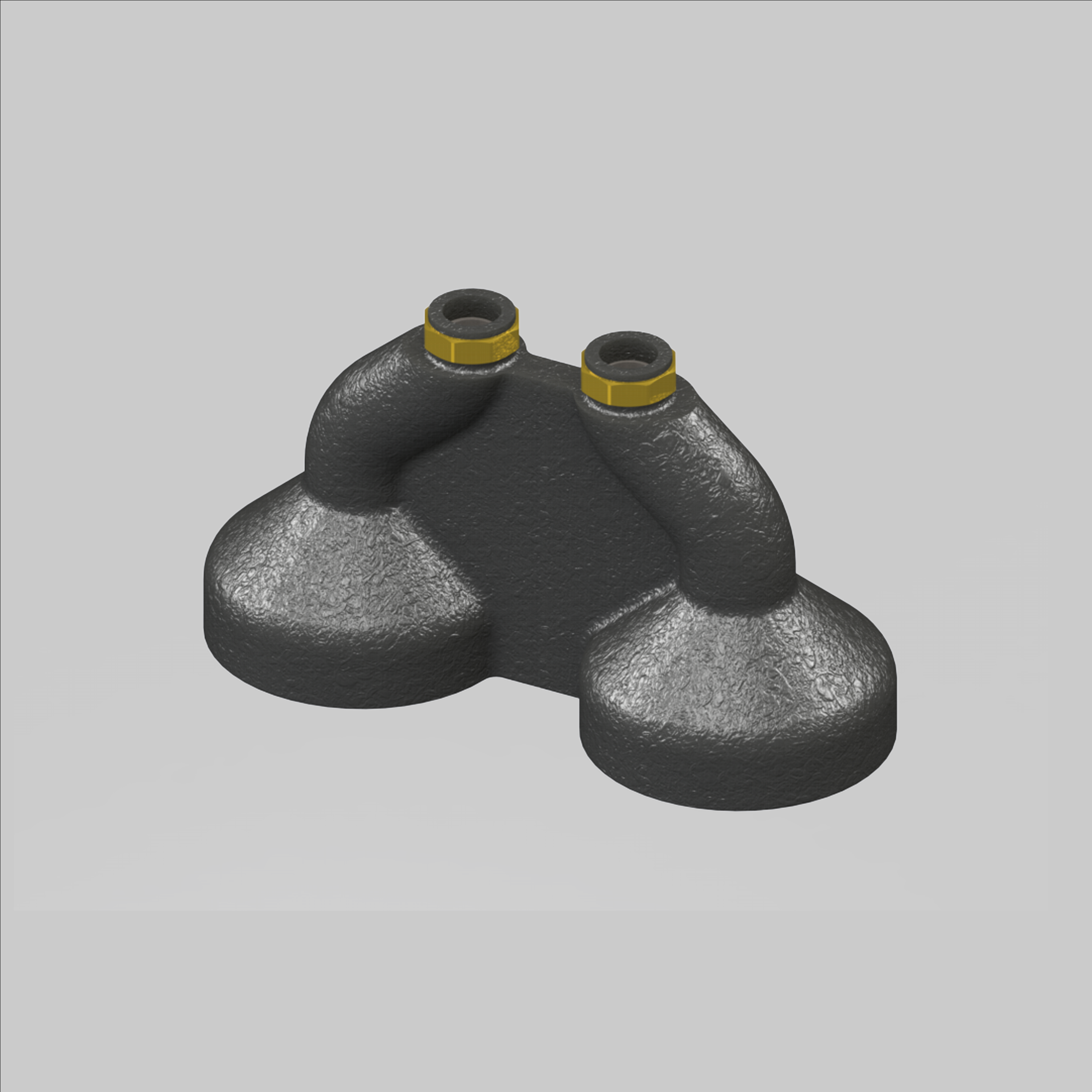

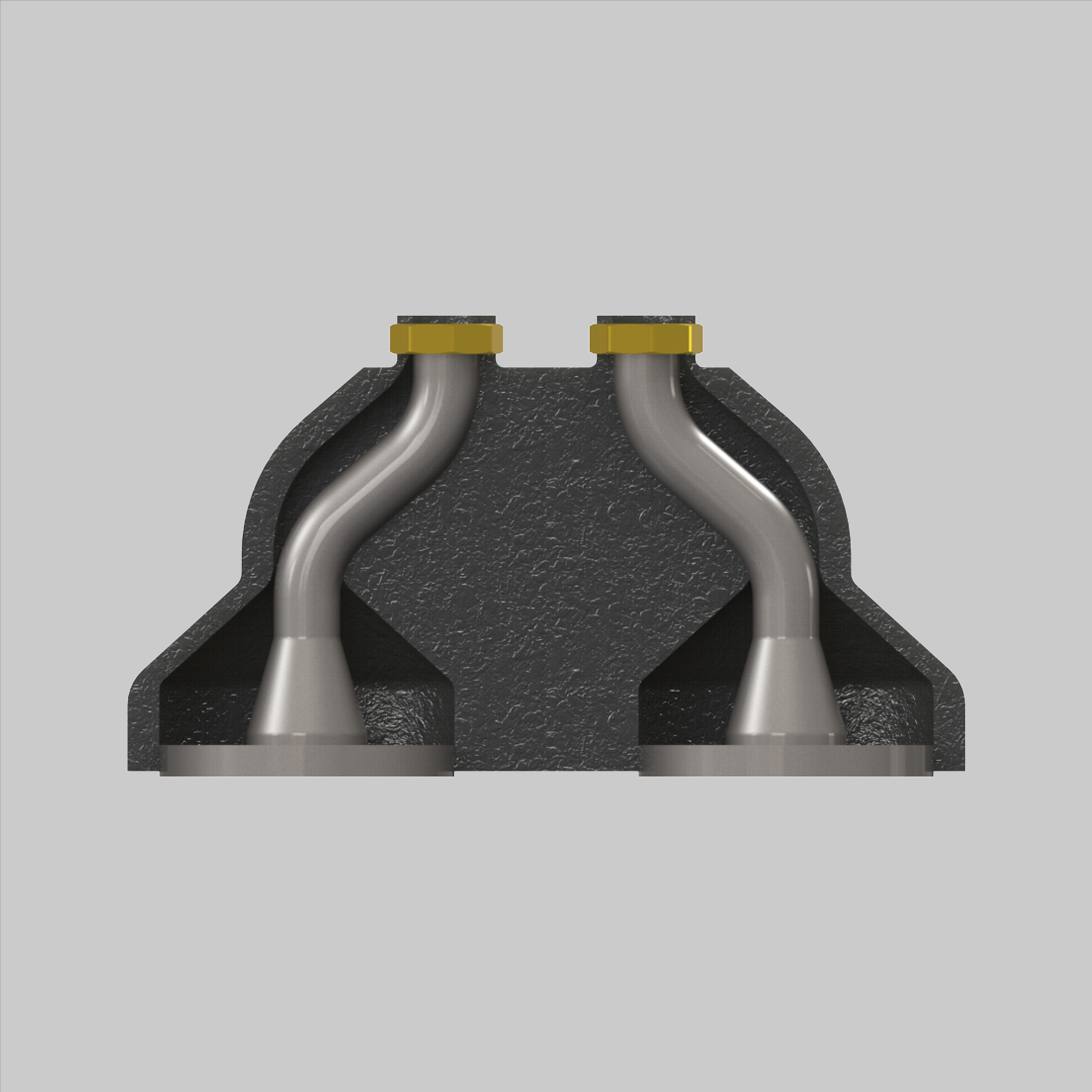

Thanks to the “CONNECTA”KIT is possible: • install it in small spaces (90° curved connection for the zone manifolds) • connect several zone manifolds of different sizes (axial reduction kit) • satisfy any type of heating/cooling demand independently to the zone manifold connection (adapter kit for pump groups up to DN25).

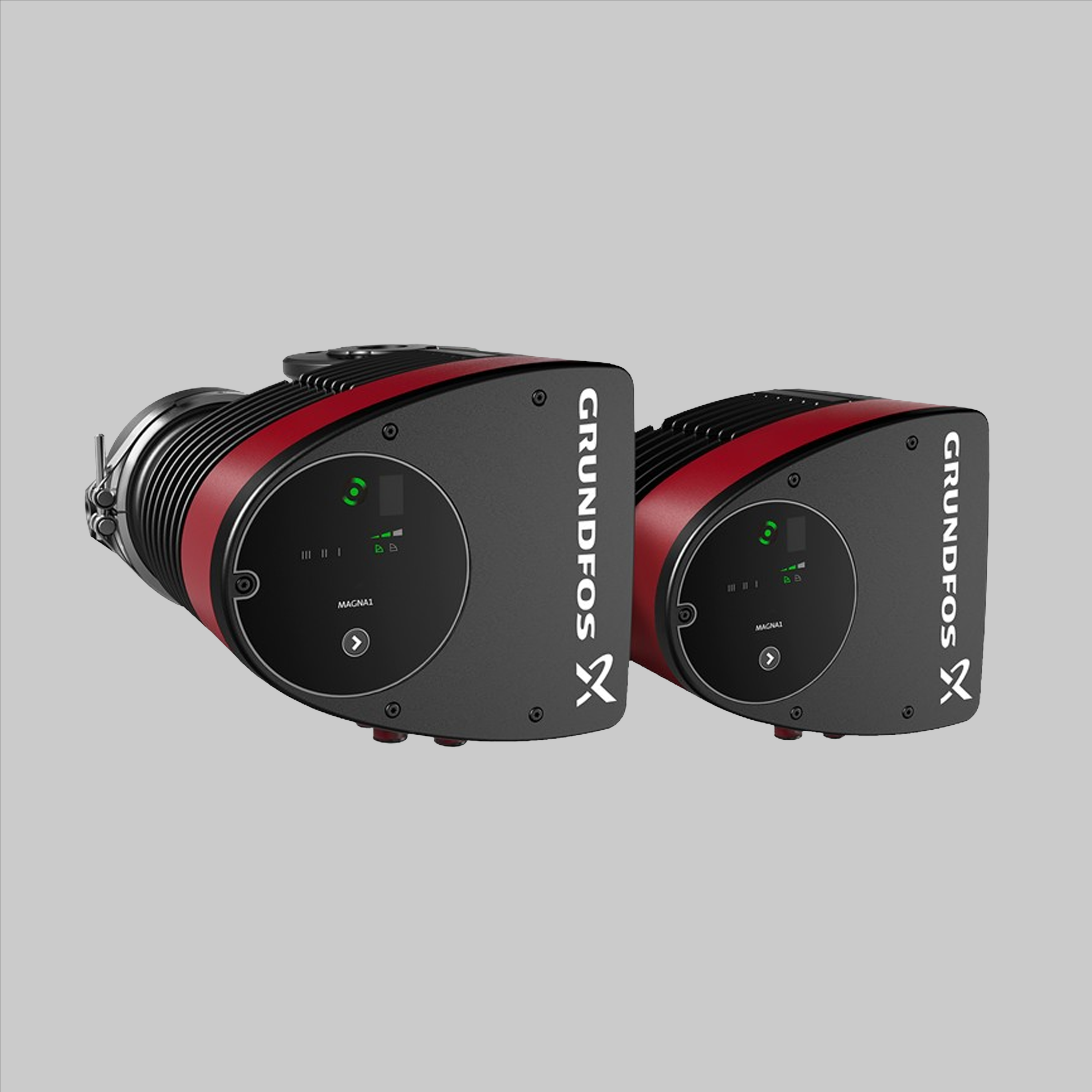

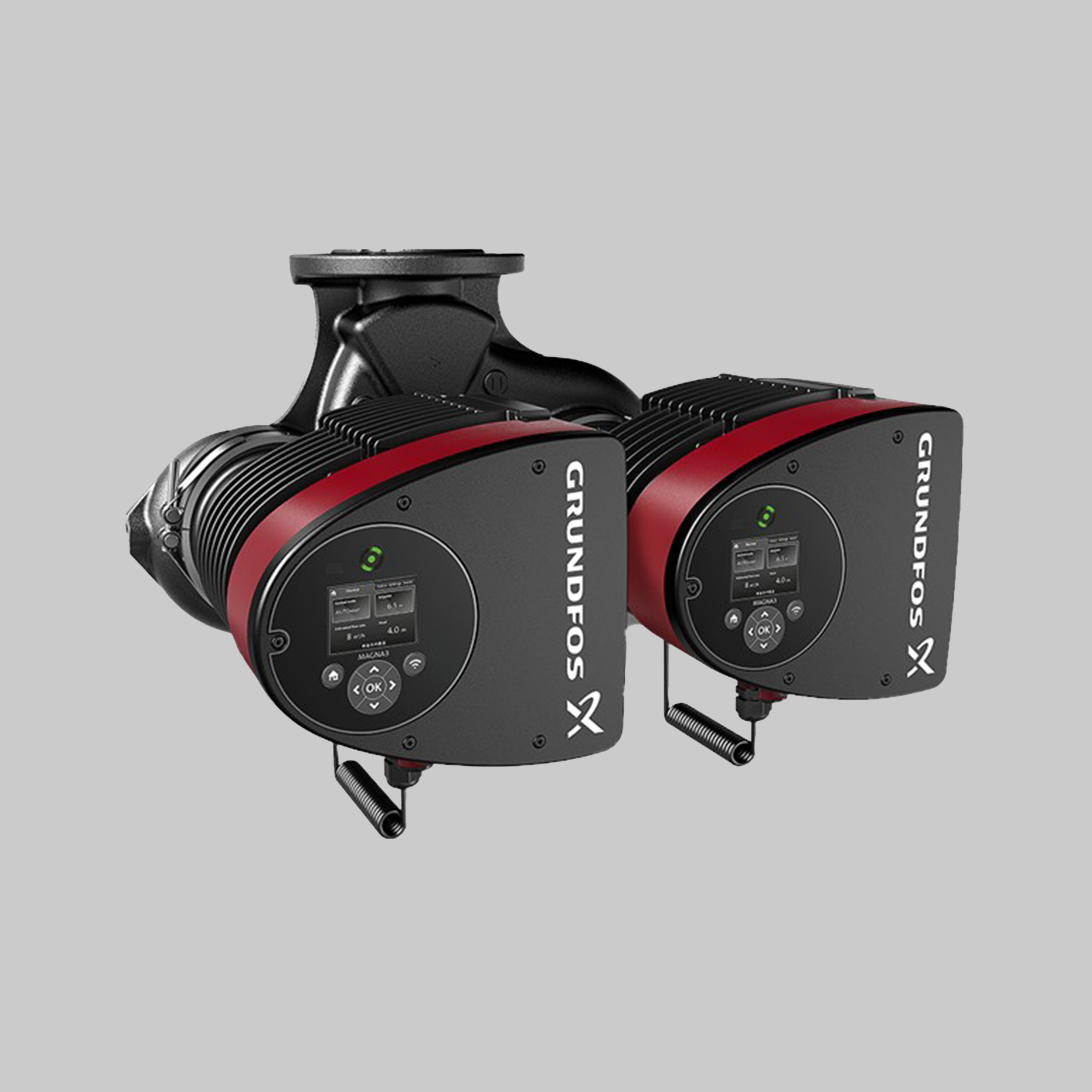

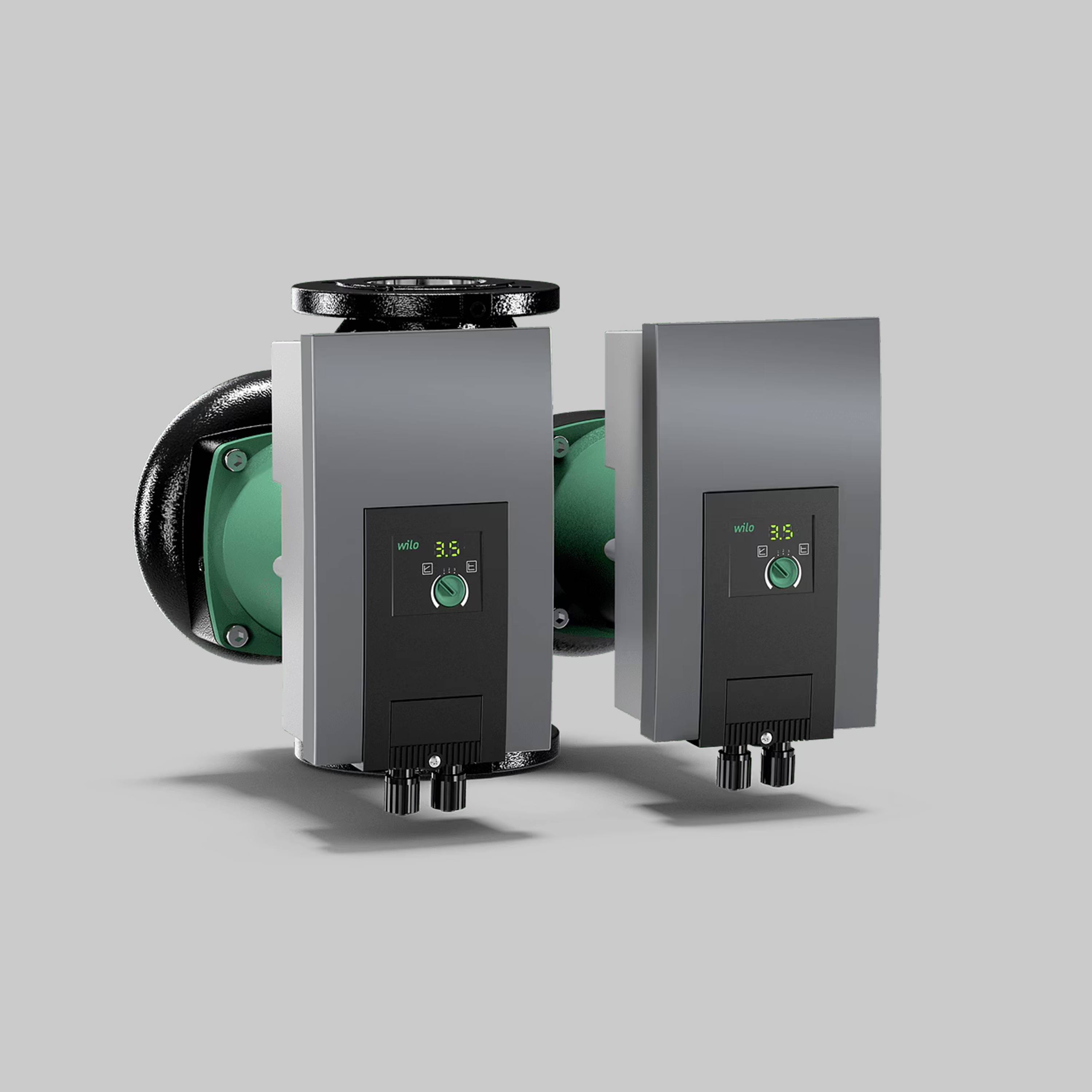

Hercules is the first ready-to-use system on which twin pumps can be installed.
The Lovato DN65 TV3-300 mixing pump group is used for the mixed circulation of the heating/cooling transfer fluid in the systems. It can be directly installed on the zone manifolds Hercules range independently to the zone manifold connections.
Hercules is the first ready-to-use system on which twin pumps can be installed.
