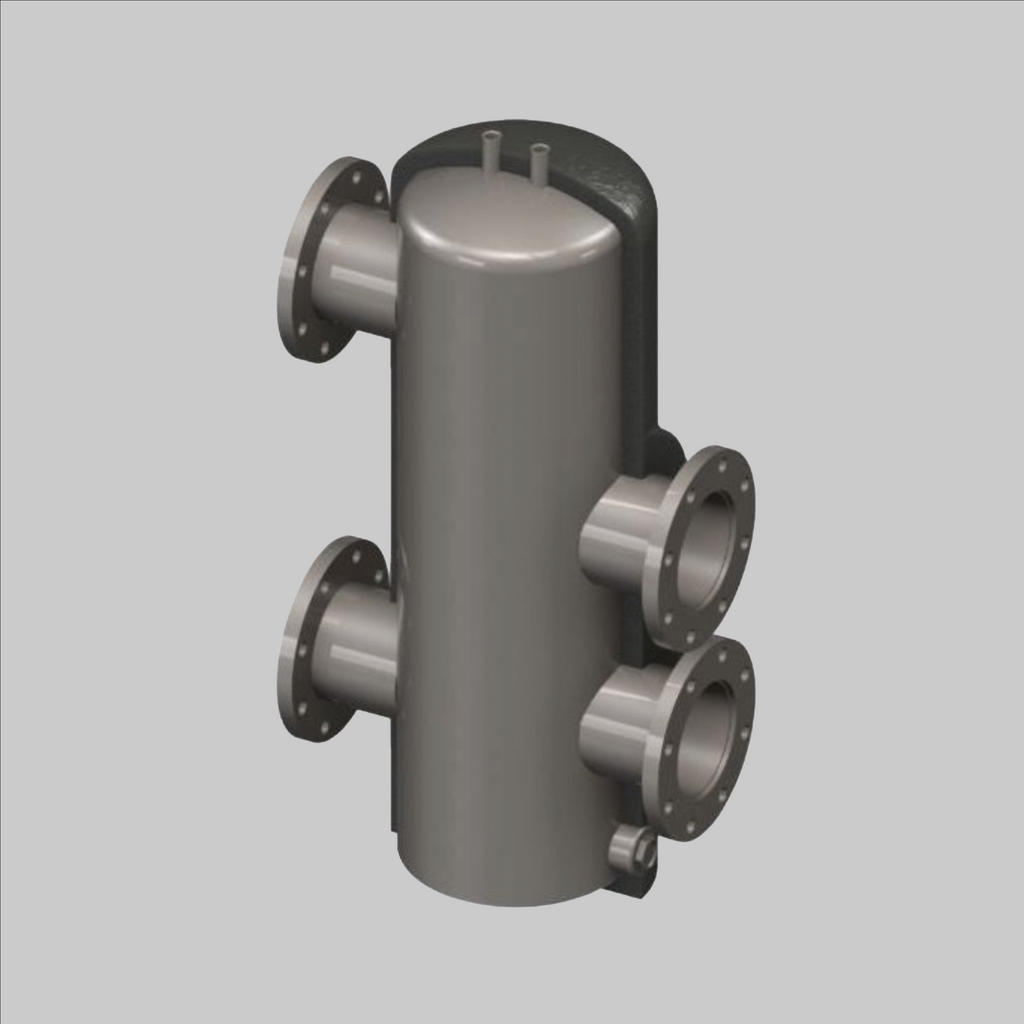

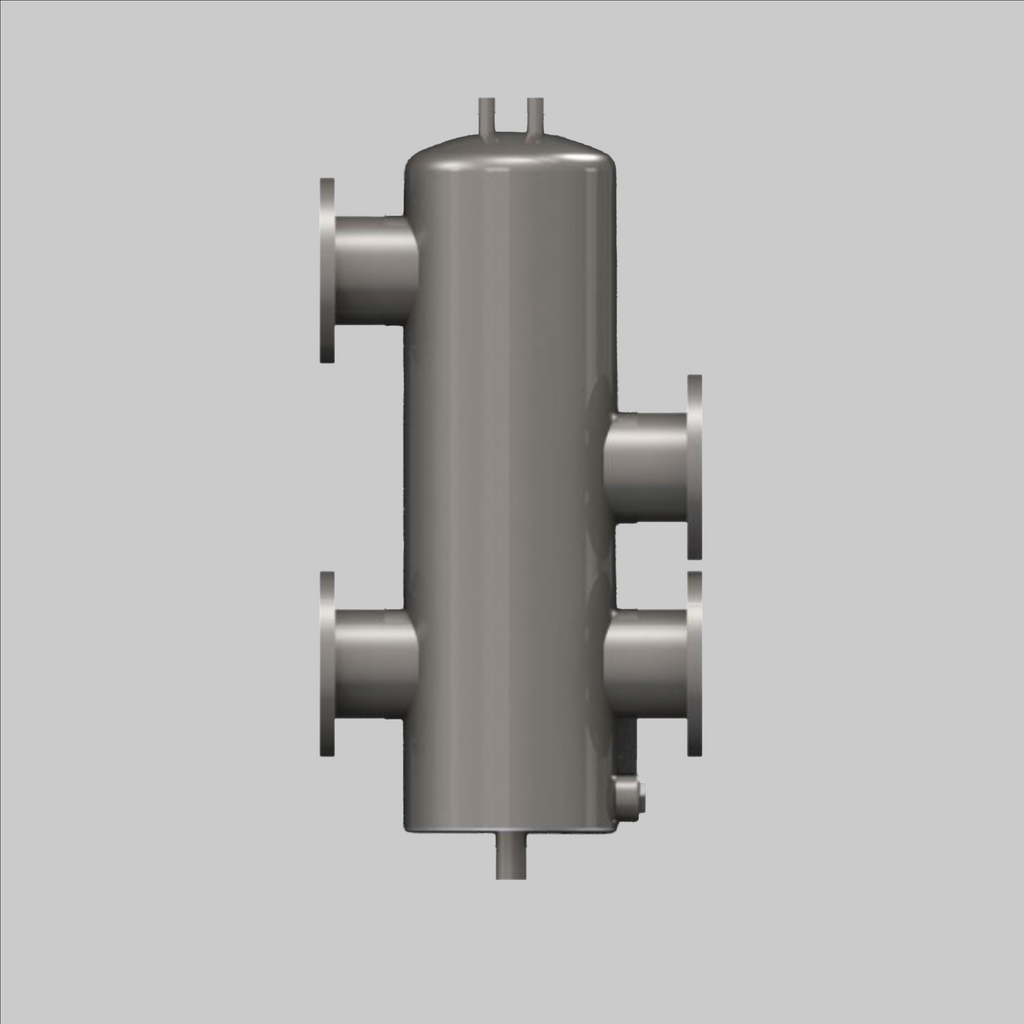

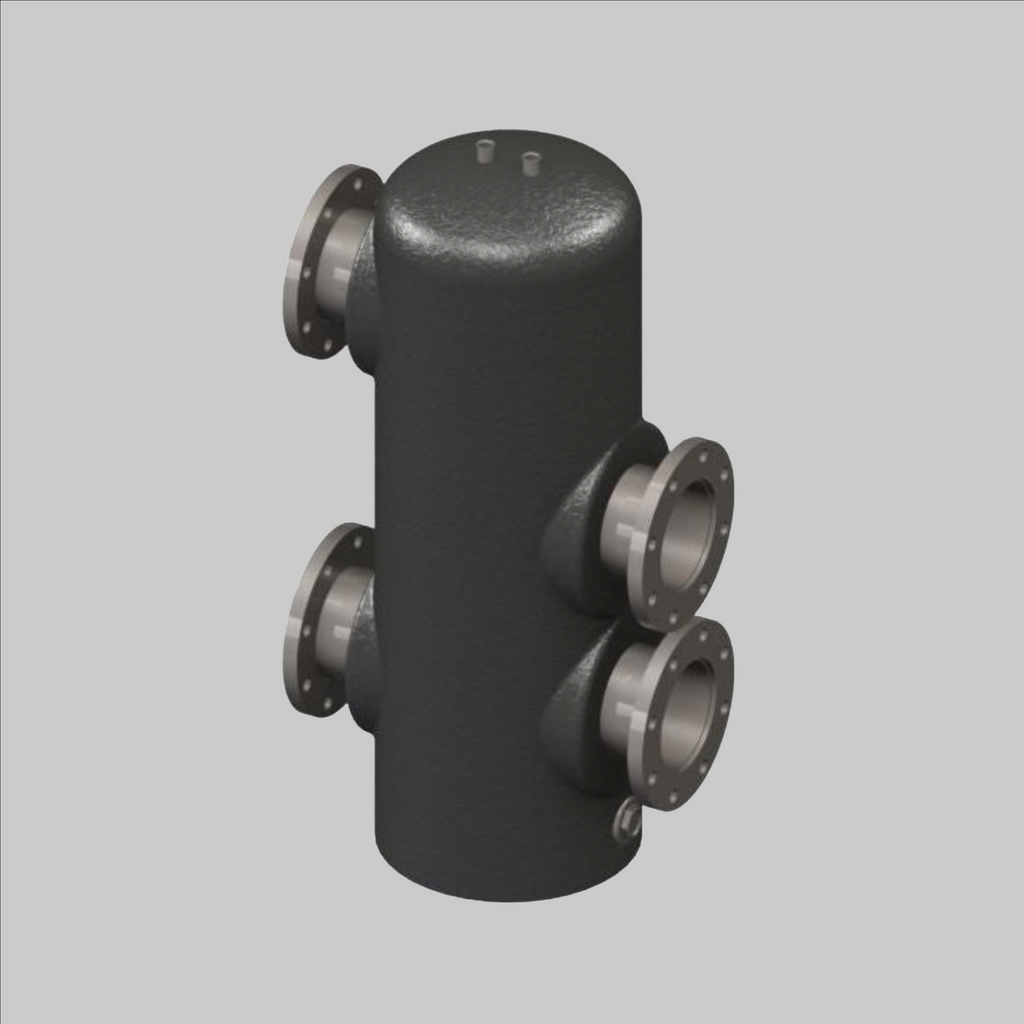

HS 325 DN65 Low Loss Header - Hercules

HS 325 DN65 Low Loss Header - Hercules

£1,277.87 GBP
The Lovato HS 325 DN65 hydraulic separator is a compensation chamber designed to make hydraulic circuits independents. It is used when, in the same system, the pump of the primary circuit (energy source) and one or more pumps of the secondary circuit (heating circuit) interact; its use helps to eliminate the problems of the variations of the flow rate and head of the circuits.
Deflector for stratification
The main chamber conformation guarantees low speed of the heat transfer fluid reducing the mixing processes.

Air separator and dirt separator function
Inside the compensation chamber there is a deflector that improves the stratification and a “flow breaker” that allows the sedimentation of the mud. Both systems also facilitate the breaking of the air microbubbles and their expulsion

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
Hercules Heating Pump Group, Low Loss Header

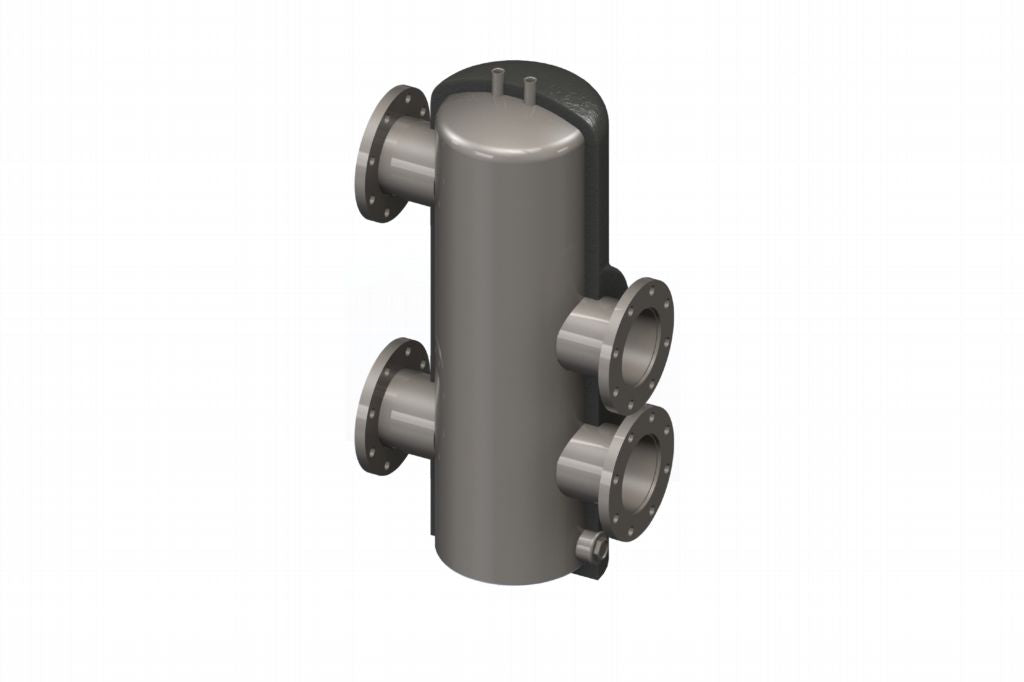

  • Hercules Heating Pump Group, Low Loss Header

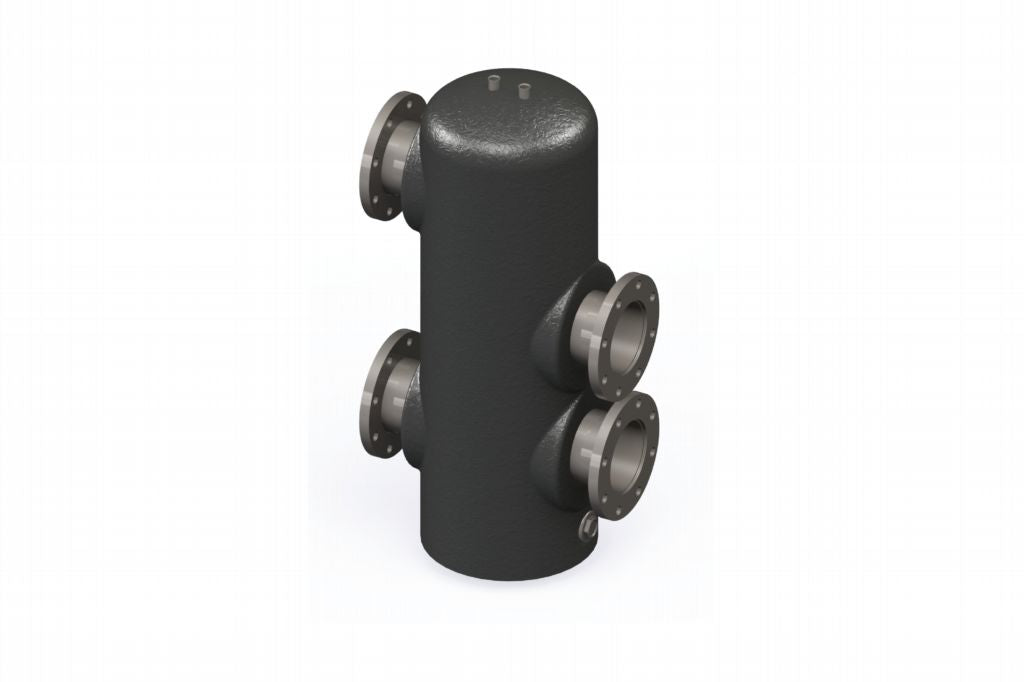

  • Hercules Heating Pump Group, Low Loss Header Insulated

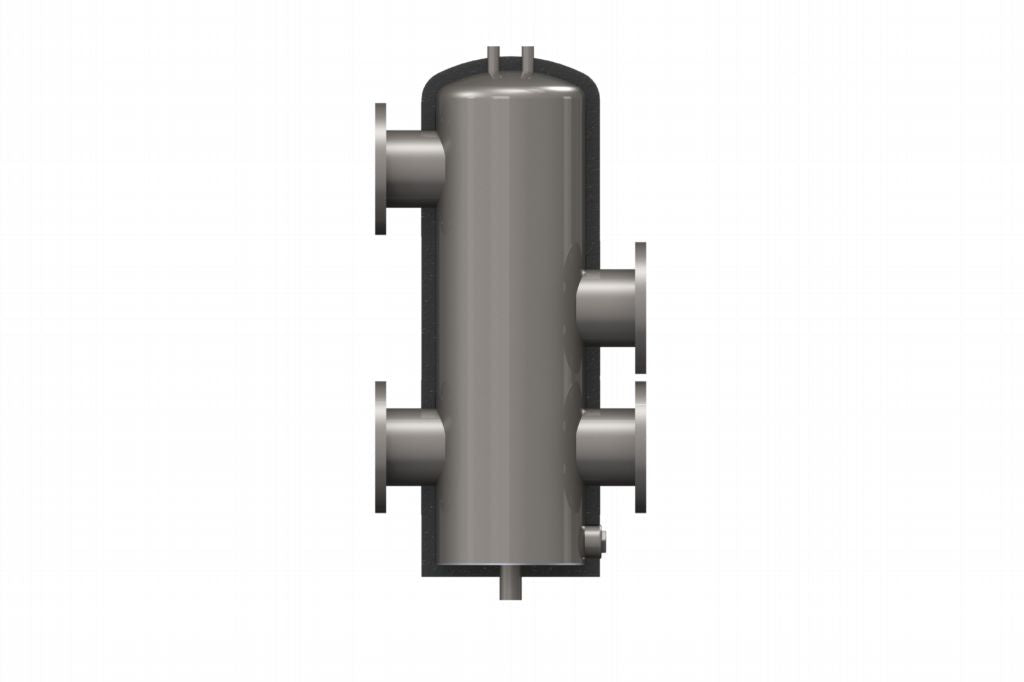

  • Hercules Heating Pump Group, Low Loss Header Cut

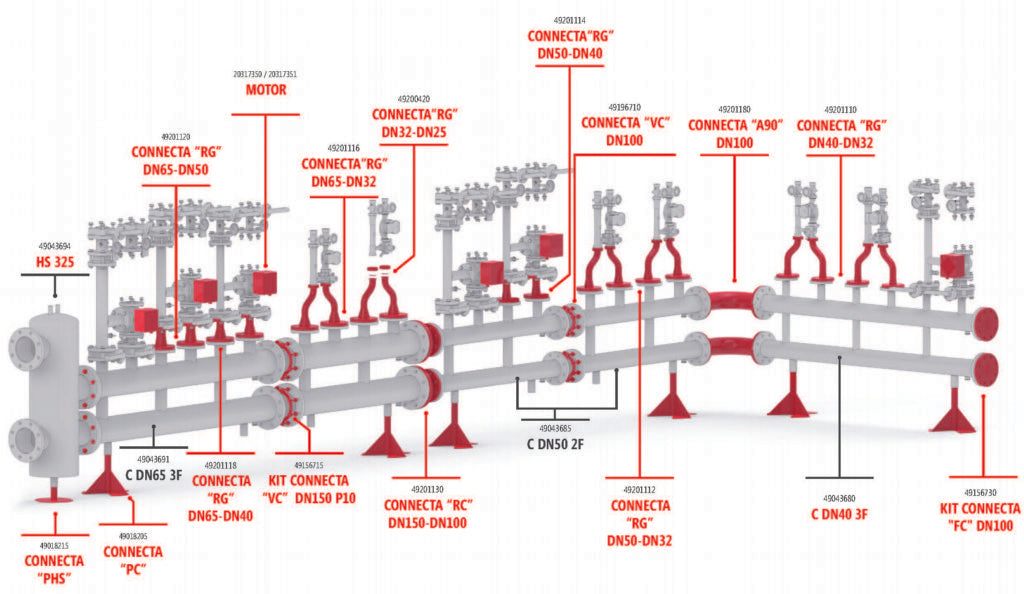

  • Hercules Heating Pump Group, Parts Drawing

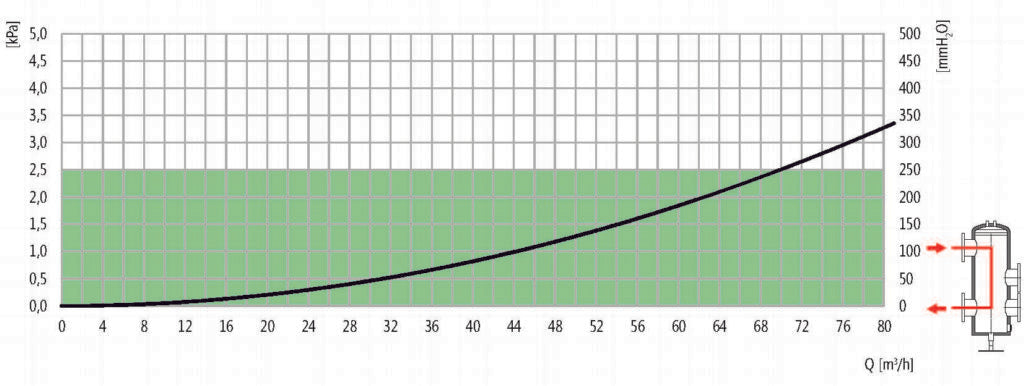

  • Hercules Heating Pump Group, Low Loss Header Performance Chart

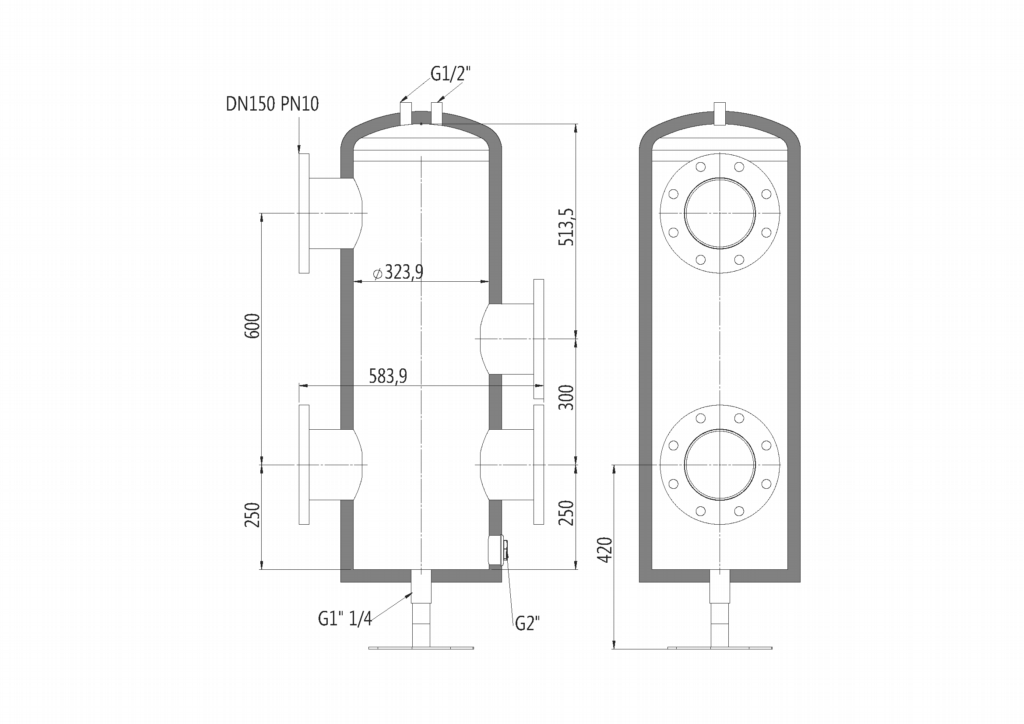

  • Hercules Heating Pump Group, Low Loss Header Dimensional Drawing
  • Hercules Heating Pump Group, Low Loss Header
  • Hercules Heating Pump Group, Low Loss Header Insulated
  • Hercules Heating Pump Group, Low Loss Header Cut
  • Hercules Heating Pump Group, Parts Drawing
  • Hercules Heating Pump Group, Low Loss Header Performance Chart
  • Hercules Heating Pump Group, Low Loss Header Dimensional Drawing
Hercules Heating Pump Group, Low Loss Header
Specs

Pipework size: DN150
Connection: DN150 PN10
Output @ 20DT: 1600 kW
Flow Rate @ 20DT: 70 m3/h
Maximum Temperature: 100 Deg C
Maximum Pressure: 10 Bar
Internal Speed: 0.26 m/s
Speed at Entrance: 1.00 m/s
Insulation Material: Trocellen C080 RN2 sp 30 mm 0,034 W/mK
Material: Steel - Fe EN 10217-1
Surface Treatment: Painted with Epoxy Powder Coating
Dimensions: 1360x420x958 mm
Benefits

• Tested, insulated and ready to use
• Integrated system of air separation and sedimentation of mud.
• Access point for draining the system
• Possibility of housing temperature sensors
• Painted with epoxy powder coating
• For heating and cooling
• Suitable for DN65 applications
Details

The Lovato HS 325 DN65 hydraulic separator is a compensation chamber designed to make hydraulic circuits independents. It is used when, in the same system, the pump of the primary circuit (energy source) and one or more pumps of the secondary circuit (heating circuit) interact; its use helps to eliminate the problems of the variations of the flow rate and head of the circuits.

Deflector for stratification
The main chamber conformation guarantees low speed of the heat transfer fluid reducing the mixing processes.

Air separator and dirt separator function
Inside the compensation chamber there is a deflector that improves the stratification and a “flow breaker” that allows the sedimentation of the mud.

Both systems also facilitate the breaking of the air microbubbles and their expulsion
