Hercules C DN65 Distribution Manifold - Hercules
£1,177.15 GBP

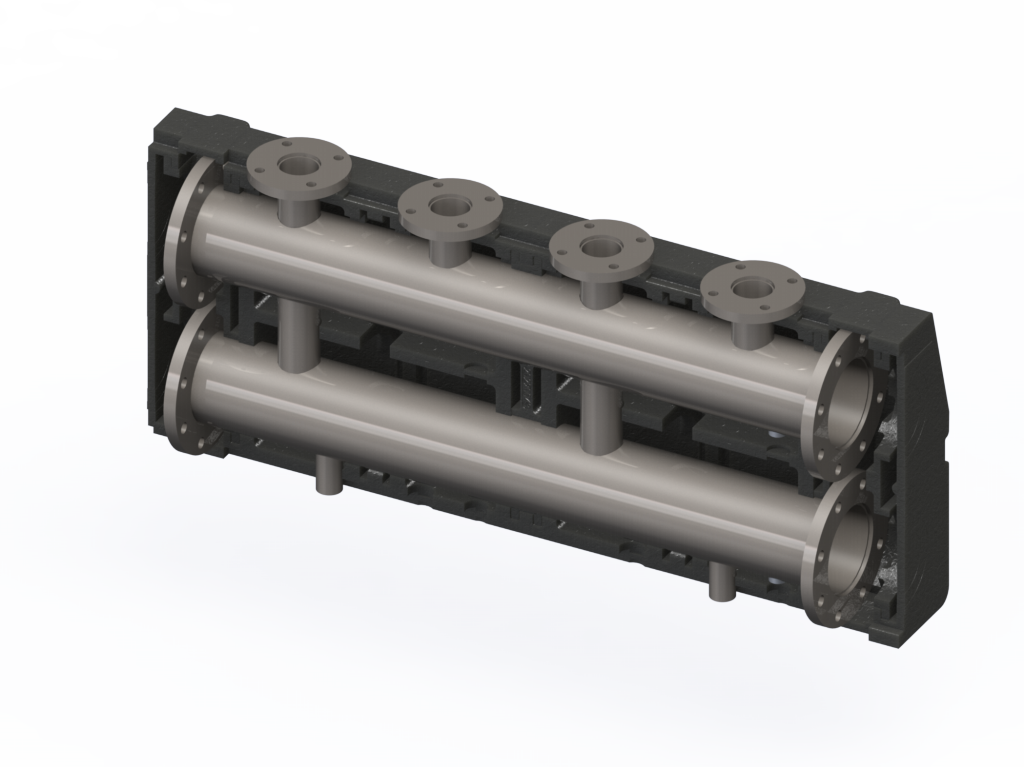

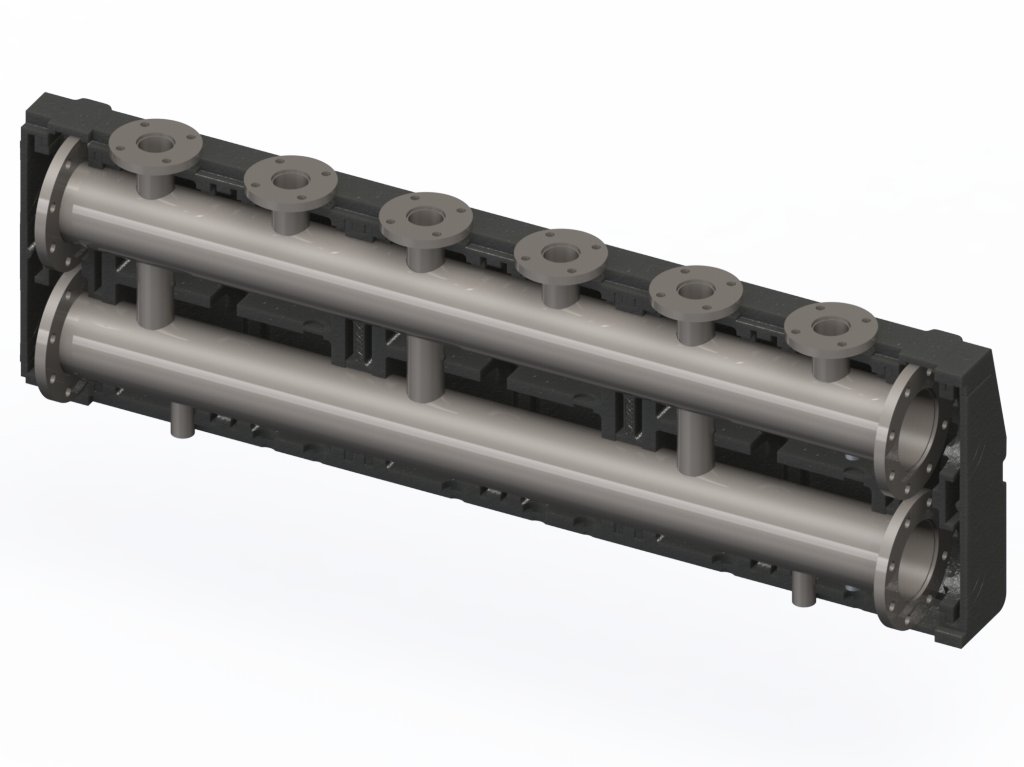

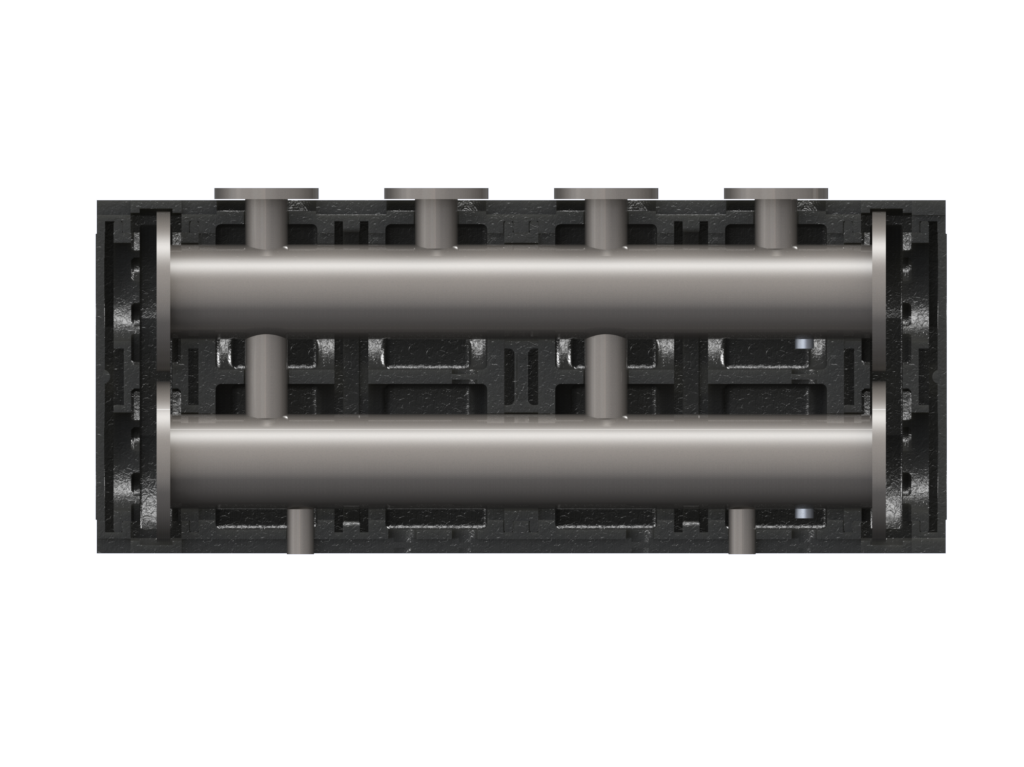

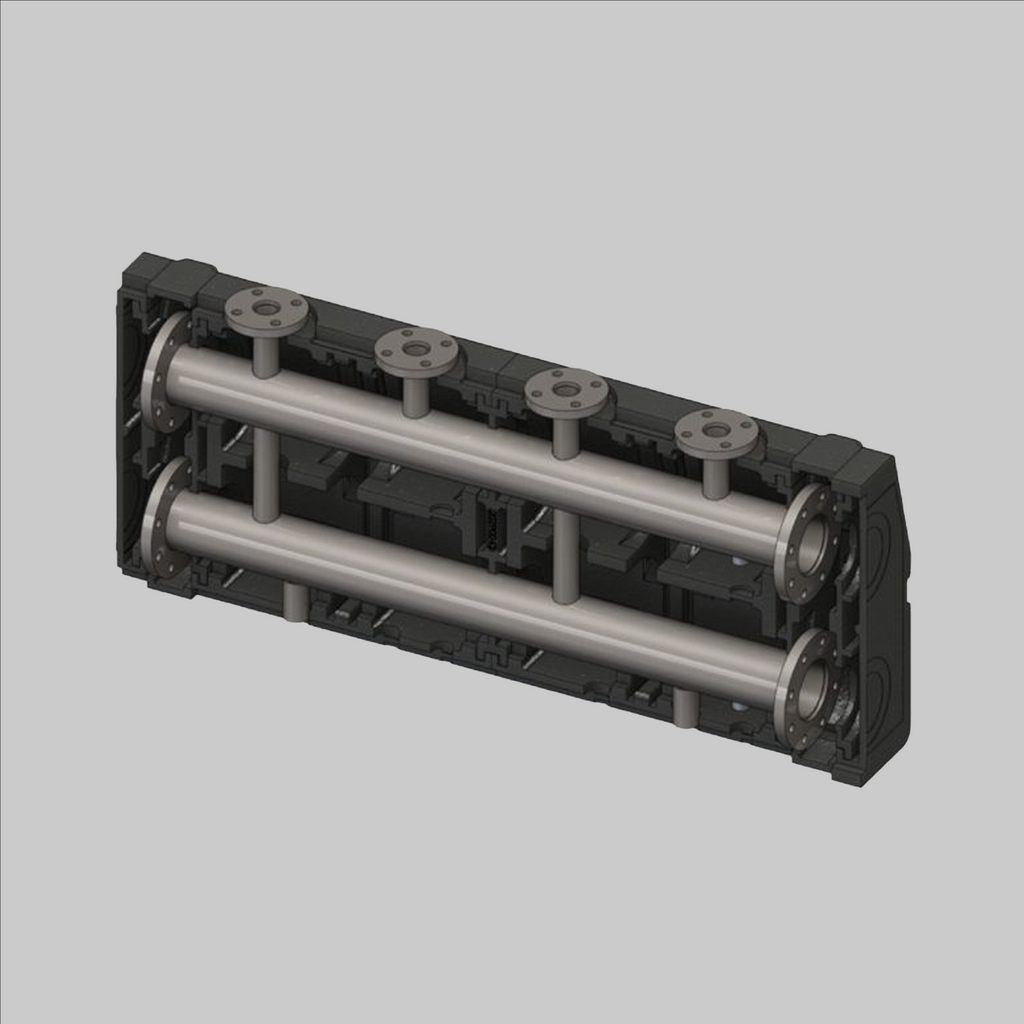

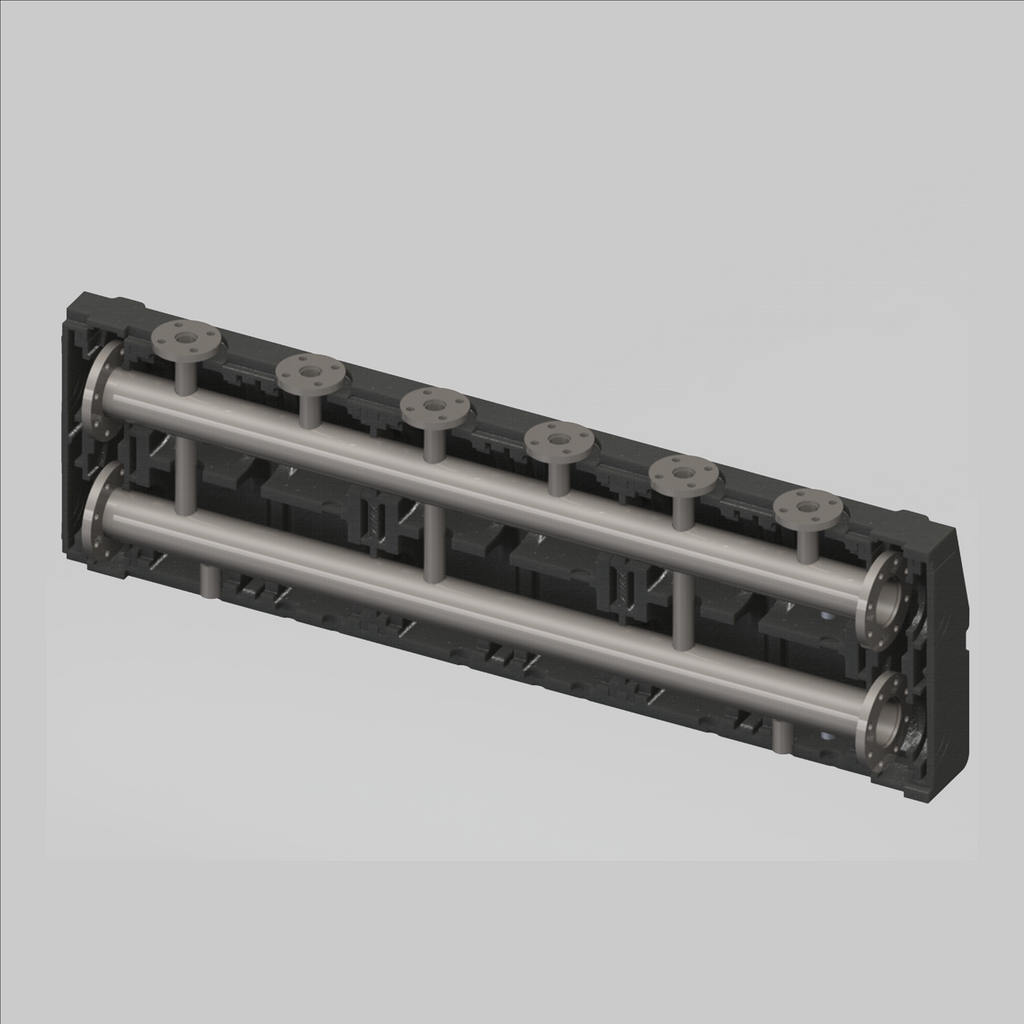

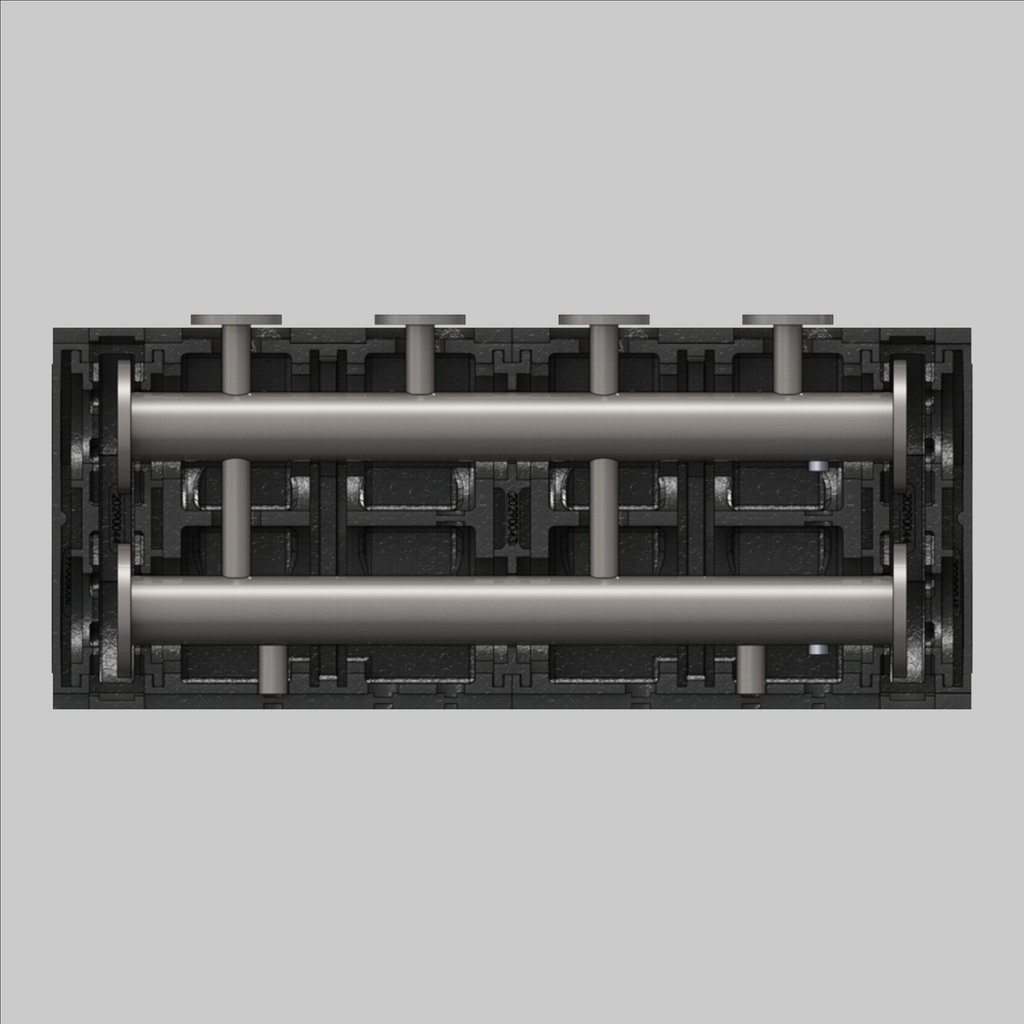

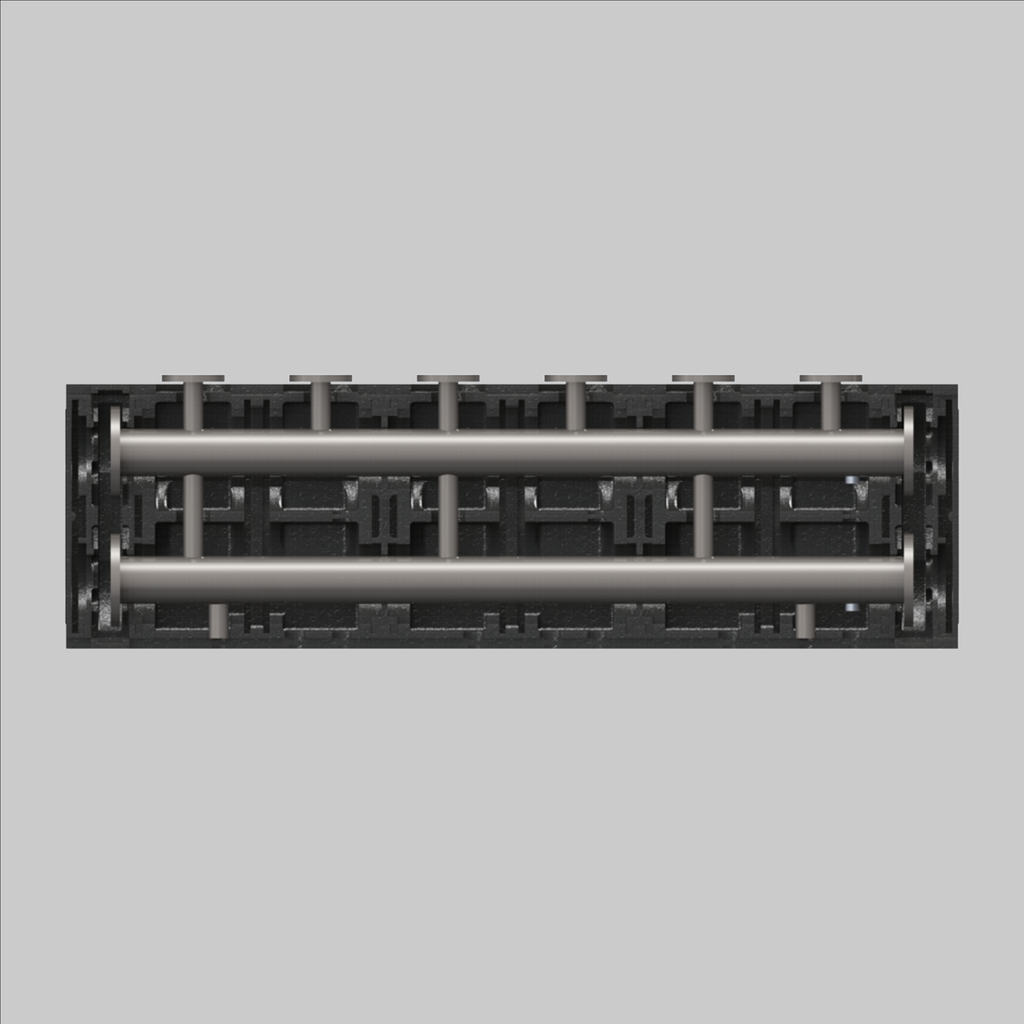

The distribution modular zone manifold Lovato C DN65 2 and 3 circuits is made with cylindrical flow and return tubes, completely separated and uinsulated. The main connections to the heat generator and to the secondary circuit are flanged.
Suitable for all applications.
Thanks to the “CONNECTA”KIT is possible:
• install it in small spaces (90° curved connection for the zone manifolds)
• connect several zone manifolds of different sizes (axial reduction kit)
• satisfy any type of heating/cooling demand independently to the zone manifold connection (adapter kit for pump groups up to DN25).
Hercules is the first ready-to-use system on which twin pumps can be installed.
High Quality Construction
Ready to install
Modular Design
UK TECHNICAL Support
Styled With
Ultimate Space Saving Design
Hercules is the leading modular manifold system on the market with the ultimate compactness, modular design and performance.
Industry Leading Pump Support
The Hercules has been specifically designed to allow for the use of Single and Twin Head Pumps. Our standard range includes Grundfos Magna1, Grundfos Manga3 and Wilo Yonos Maxo Pumps.
Lasting Longevity
The Hercules system is coated in an anti-corrosive material in a process known as cataphoretic. This is the same treatment used by leading pump manufacturer's and has a proven and lasting results.
Rapid Bolt Together Design
The Hercules has been designed on an installer friendly rapid bolt together design. Each module is terminated in a standard flange connection, this enables the build of a whole header / manifold in less than an hour!
Designed For Maintenance
The Hercules includes Fill/Drain Ports, Dry Pockets, Isolation Valves, Temperature Gauges, Non-Return Valve, Test Points and a Removable Insulation Jacket to make setup and maintenance a breeze.
Low Loss & Dirt / Air Separator
The Hercules is crafted with inherent value, incorporating a Header that serves as a Low Loss Header with a baffle to separate dirt and air. Furthermore, the Header integrates a diverting pipe to deter mixing for enhanced energy efficiency.
Design Flexibility
The Hercules can be selected with bend kits and reducers to support a variety of installation shapes, sizes and restrictions including Back to Back, L Shaped and more.
