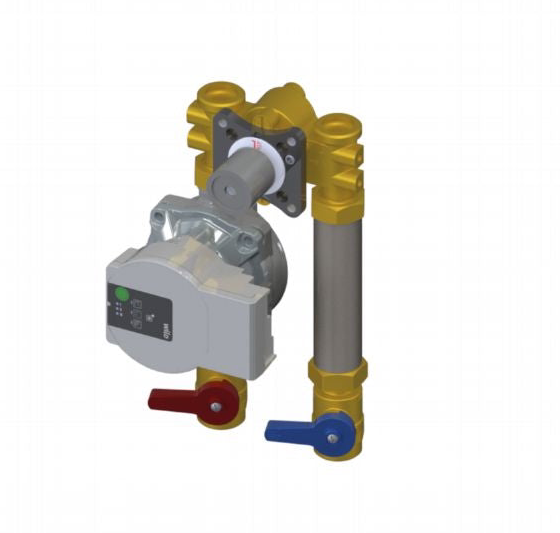

T-BOX TS DN20 - Mixed Temperature Pump Group

Modulating mixing pump group with 3-way mixing valve, Wilo PARA SC 15/1-6 high efficiency pump, check valve in return, piping kit and ball valves with red and blue handle levers in flow/return secondary circuit. Unit predisposed for control with electric rotary servomotor (accessory).

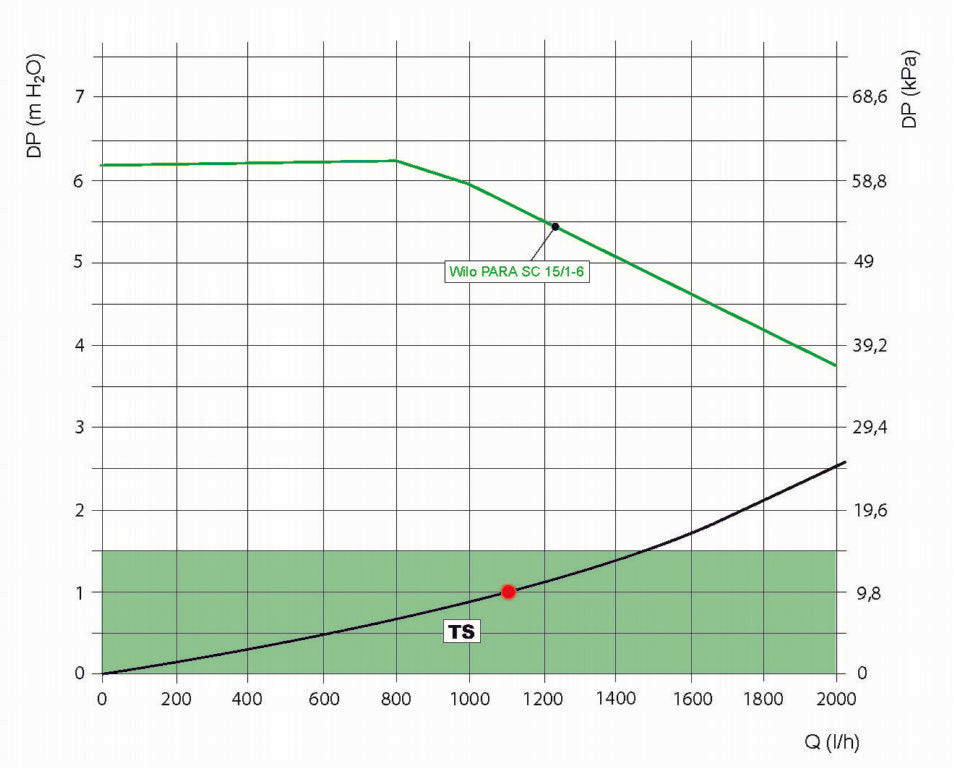

Nominal Flow Rate - 1170 l/h (DP 10 kPa)

Nominal Heating Power - 25.6 kW (DT 20 °C)
