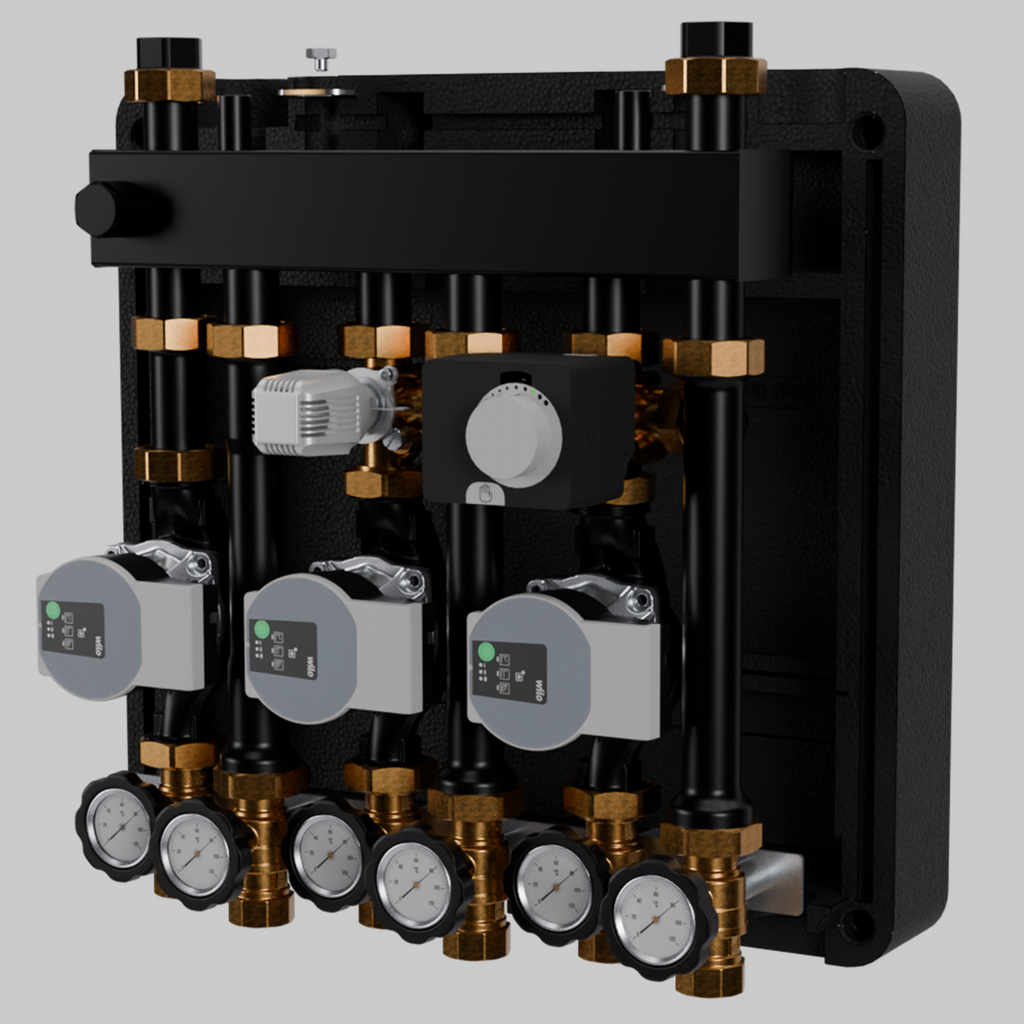

T-BOX DN20

T-BOX DN20

£235.63 GBP
Zones

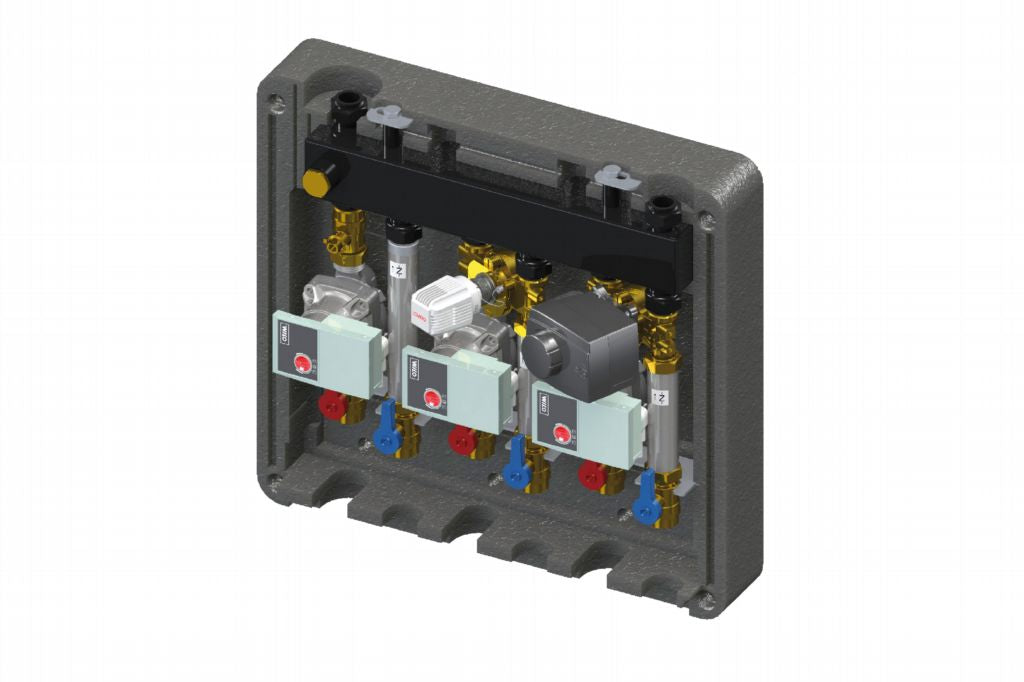

T-BOX is a compact distribution module for zone heating systems.

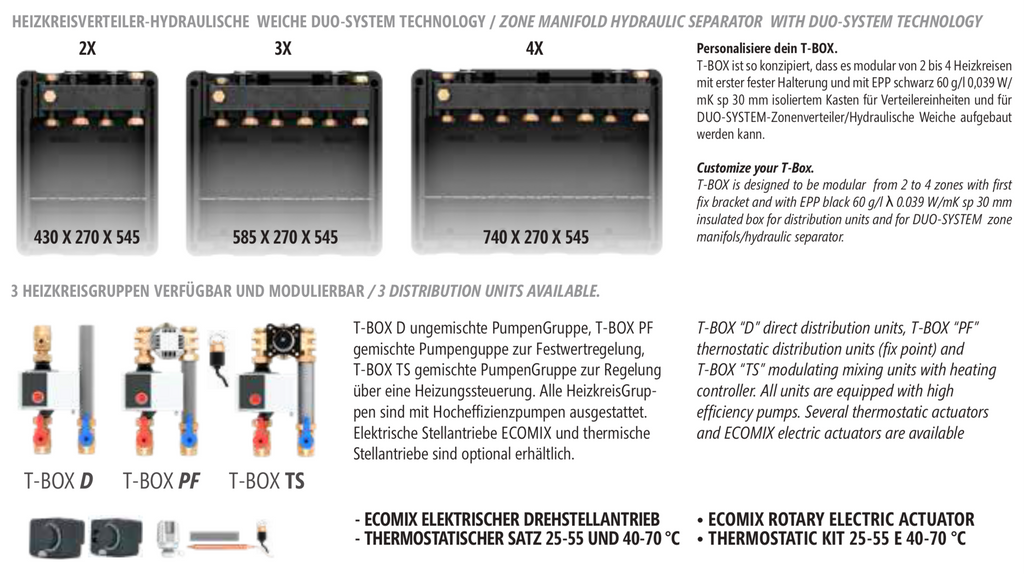

It can manage two, three or four zones in wall-hung version.
The zones can be controlled by 3 types of pump units:

- Direct unit (high temperature)

- Fixed point unit (constant temperature)

- Modulating temperature mixing unit (designed for the temperature control system)

 Download the product data sheet here.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
  • T-BOX DN20
T-BOX DN20

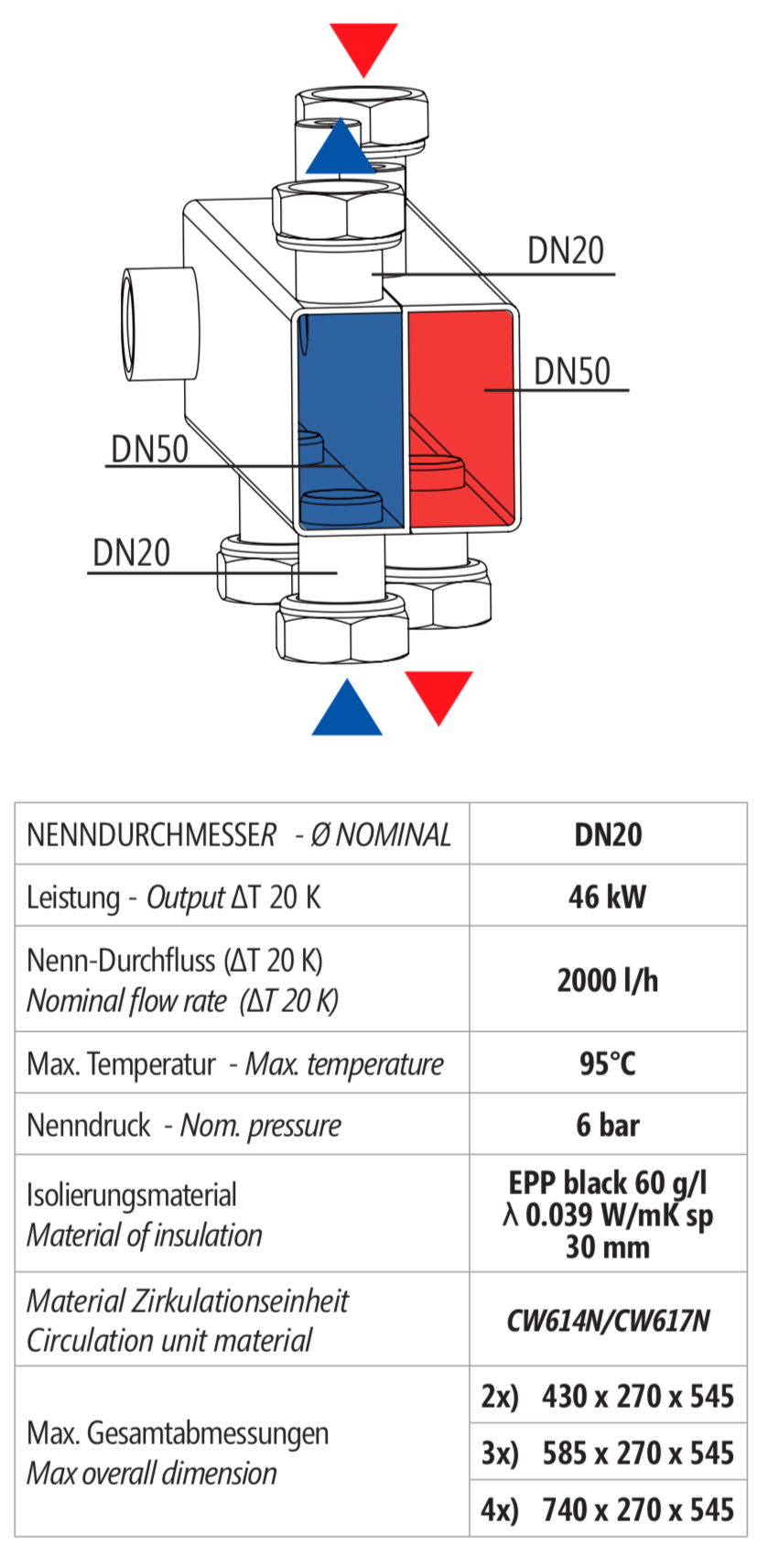

Specs

Pipework size: DN20
Output @ 20DT: 46 kW
Flow Rate @ 20DT: 2000 l/h
Maximum Temperature: 95 Deg C
Maximum Pressure: 6 Bar
Insulation Material: EPP Black 60 g/l 0.039 W/mK sp 30mm
Circulation Unit Material: CW614N / CW617N

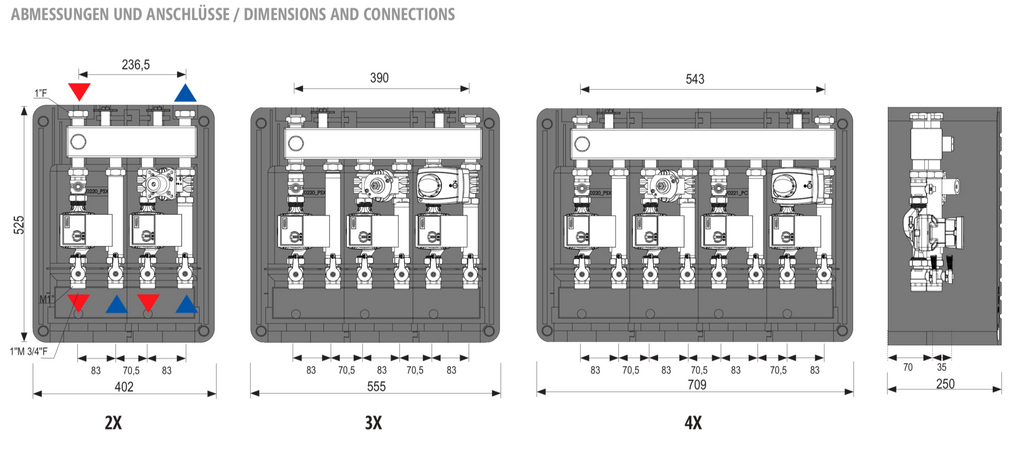

Dimensions -
2 Zone: 430x270x545 mm
3 Zone: 585x270x545 mm
4 Zone: 740x270x545 mm

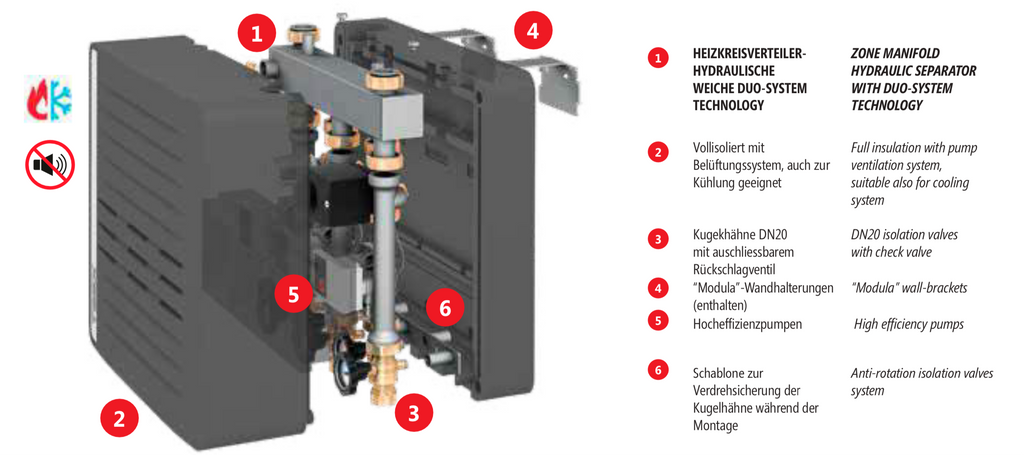

Benefits

•Modular distribution system

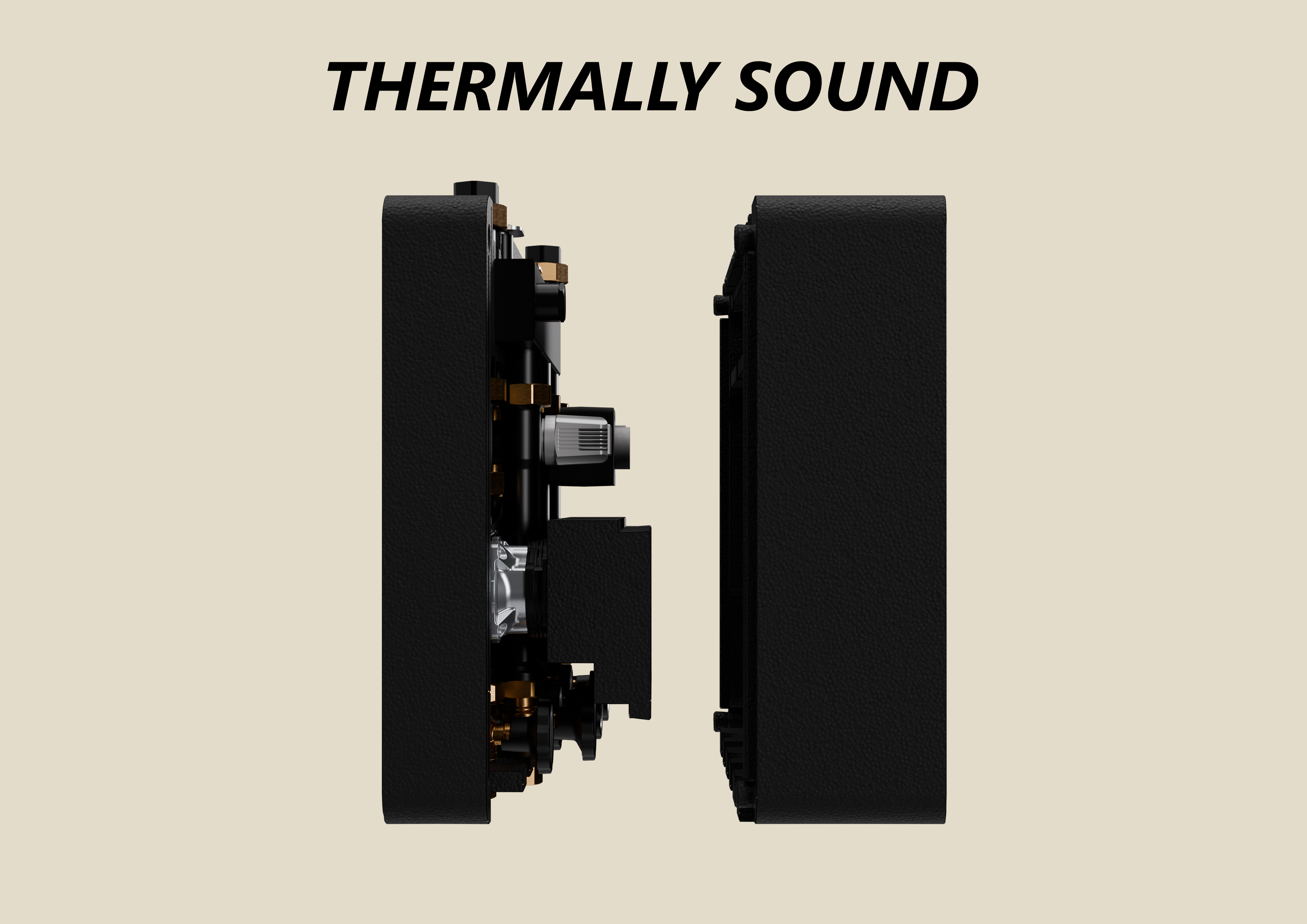

•Thermally insulated manifold with EPP 40 g/l

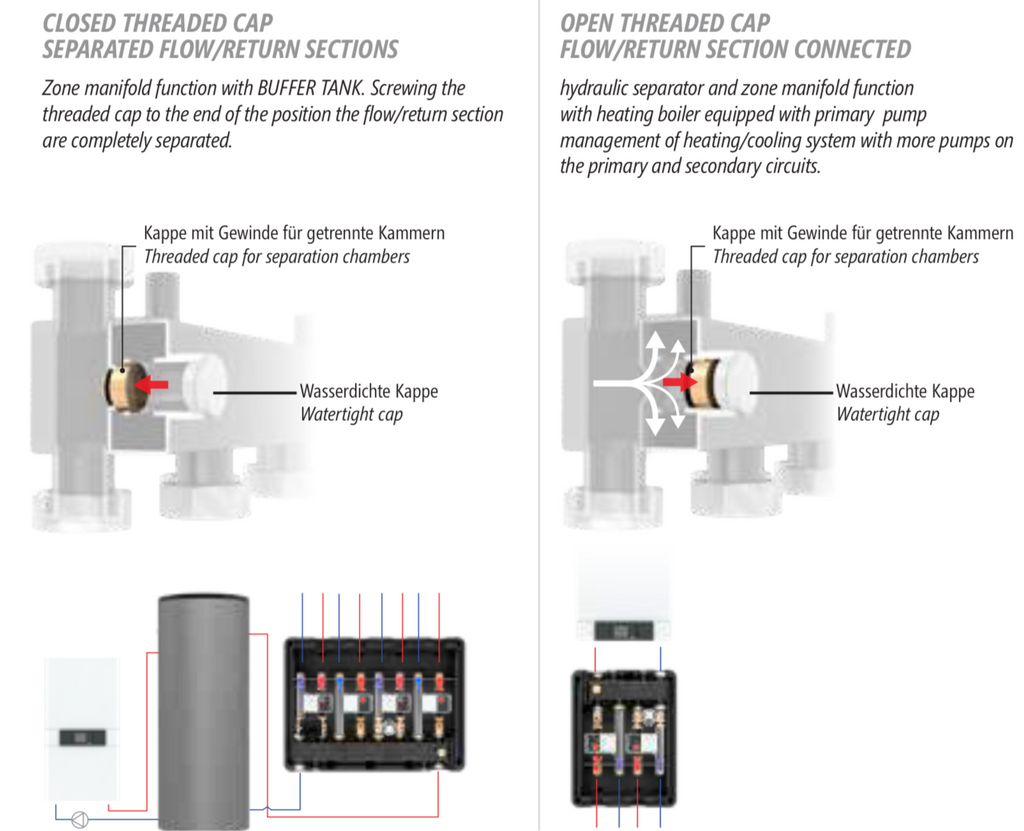

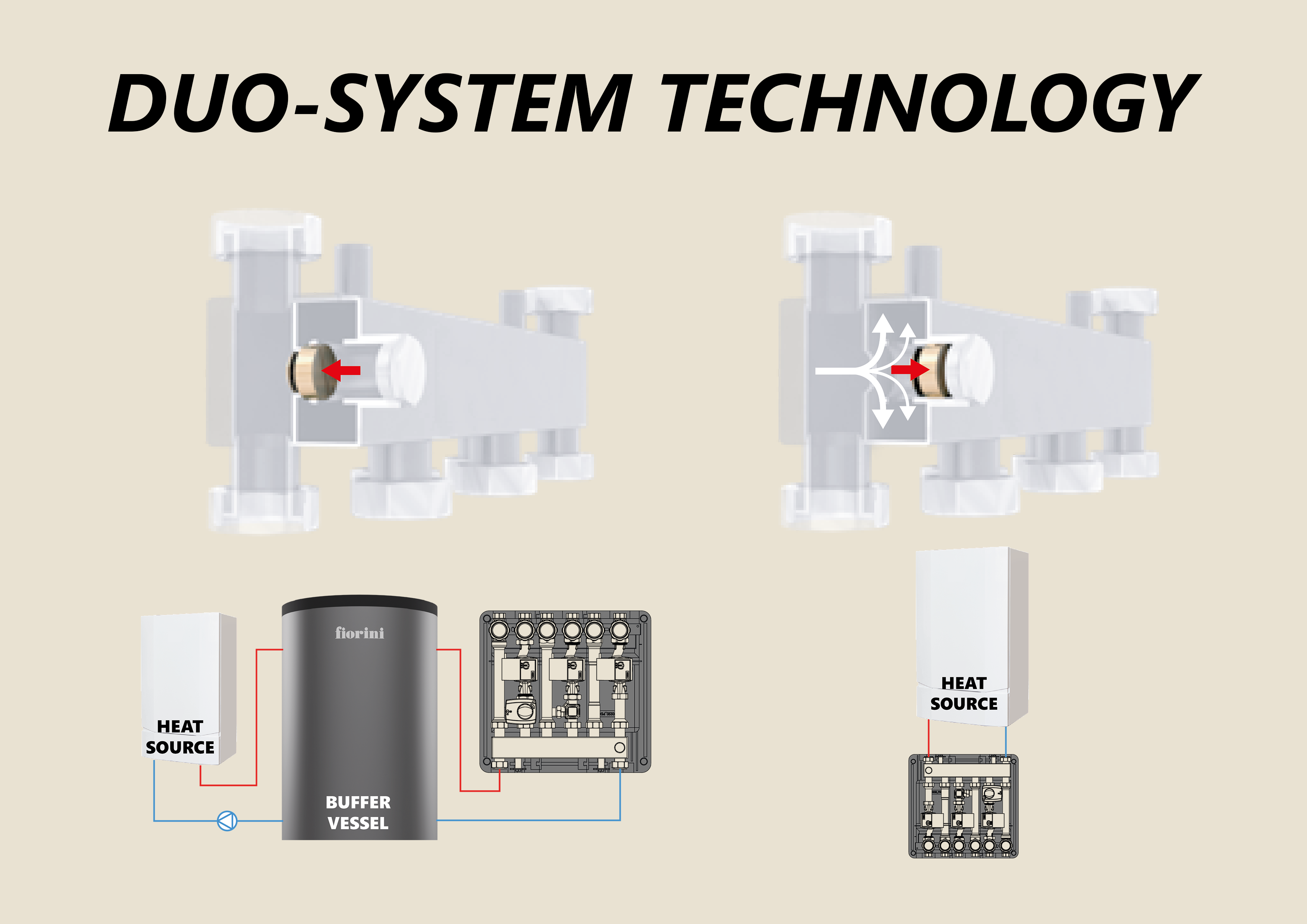

•2,3,4 zone distribution manifold/hydraulic separator with
"DUO SYSTEM" that allows thanks a threaded cap the connection or the separation of the flow and return "chambers"
•Compact module

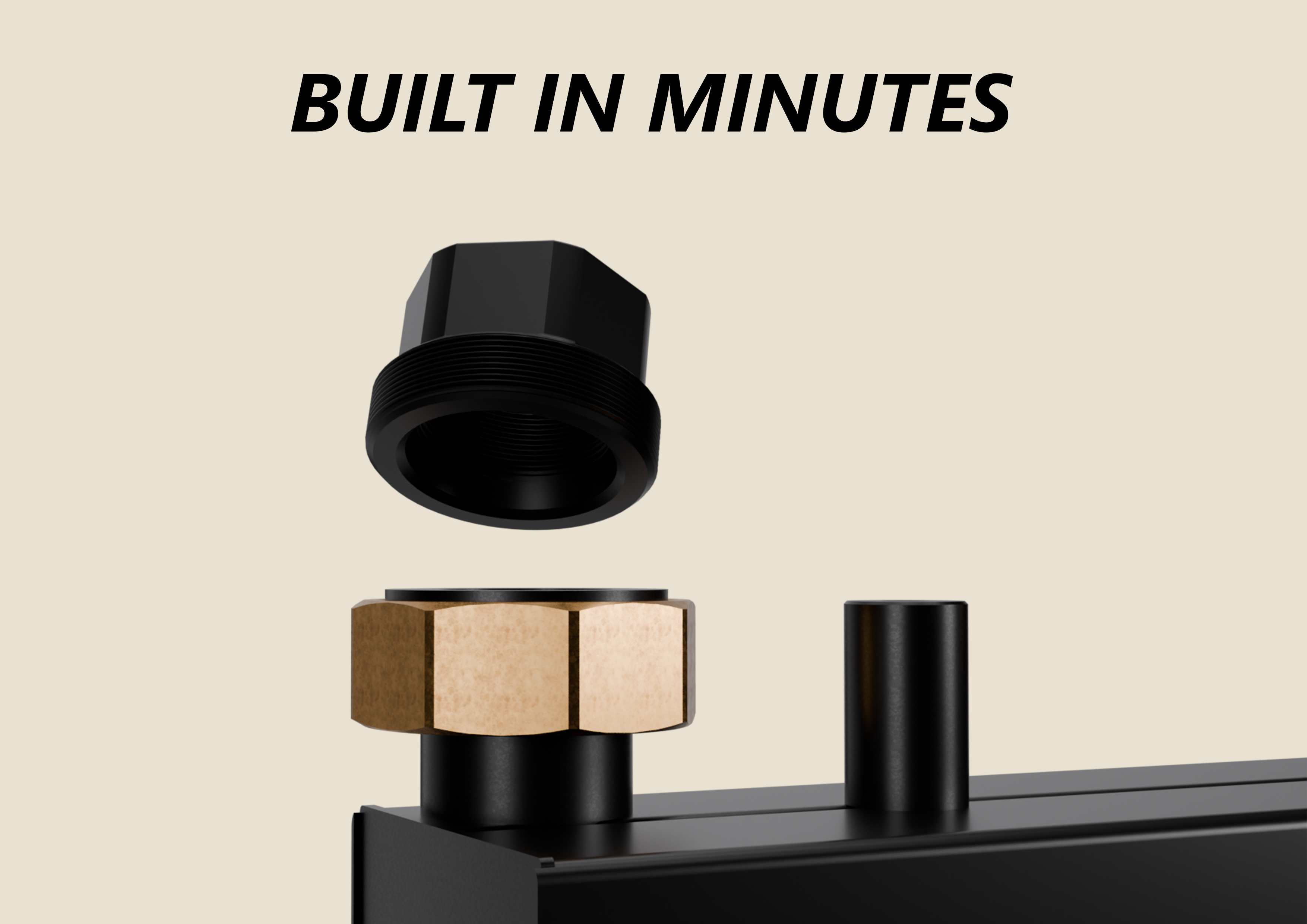

•Simplified hydraulic connections and seals assured by flat faces.
• Anti-rotation connection Jig
•Easy installation and maintenance.
Details

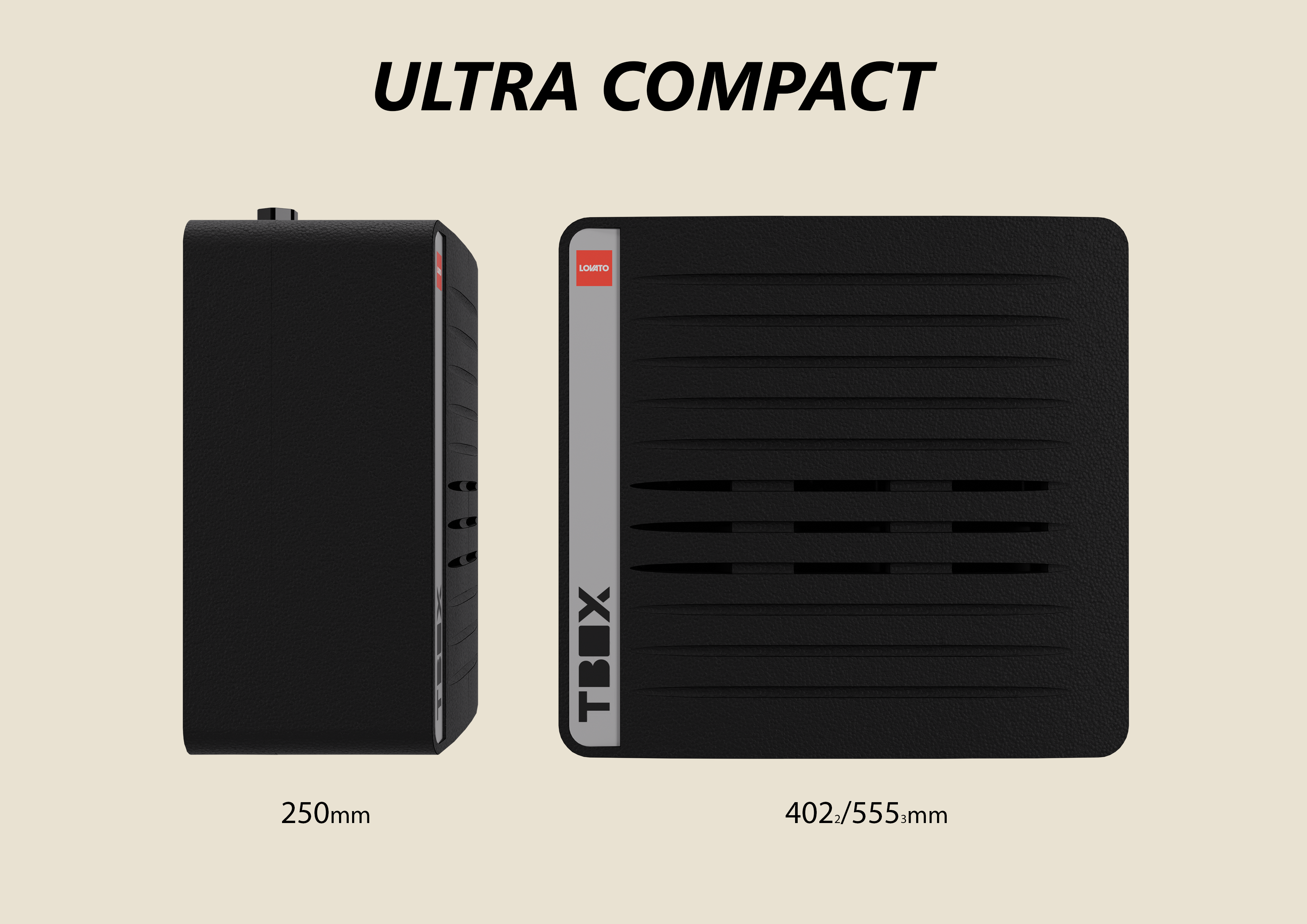

A” revolutionary” distribution pipe work system I that requires just 50% of the space compared to the traditional applications!

The new T-Box’s distribution units are designed for granting high performances in the smallest space as possible. Powerful and efficient even for the most hard systems demand. It can be installed in 3 different positions to make the best use of the space available.

T-BOX IS DESIGNED FOR MAKING EASIER THE INSTALLATIONS IN EVERY SITUATION EVEN IN SMALL BOILER ROOMS!

T-BOX is easy to install, small, lightweight, easy to handle. It can be installed by a single operator!

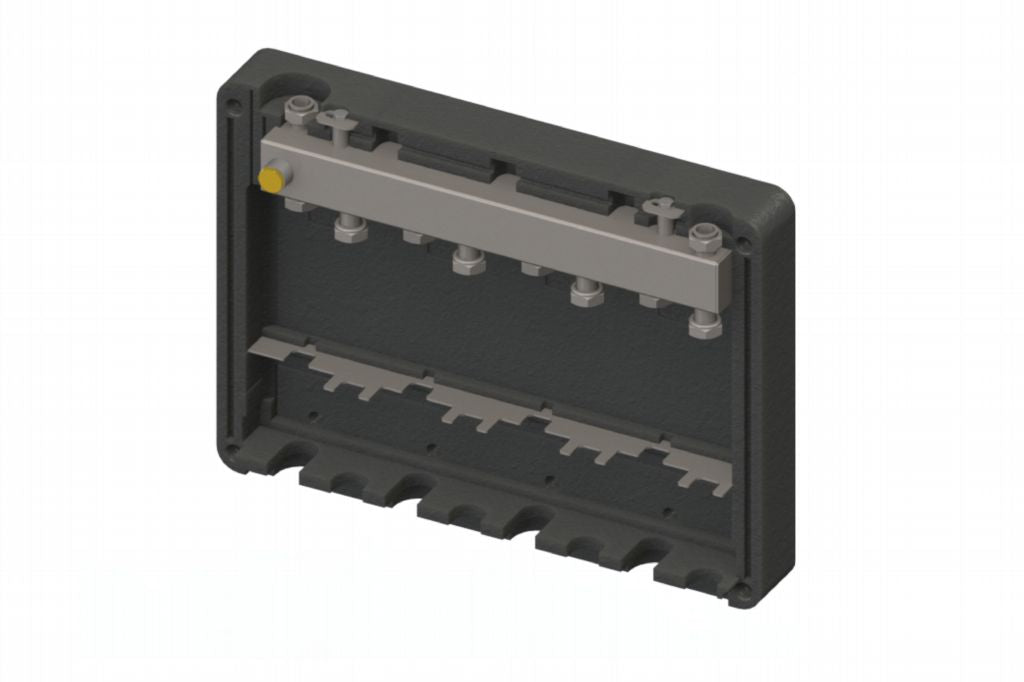

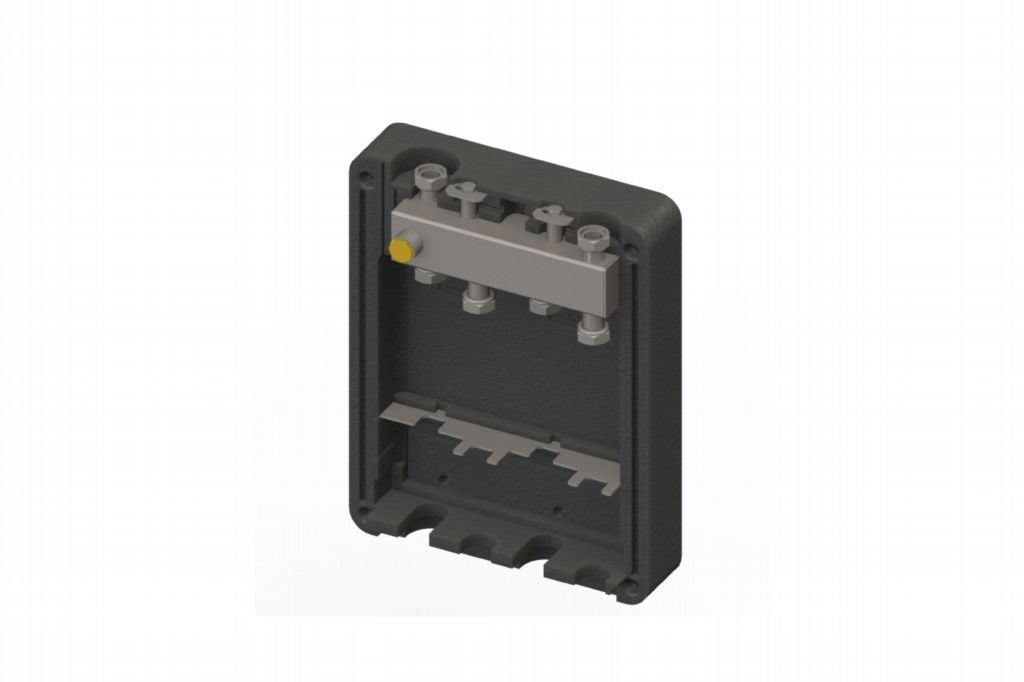

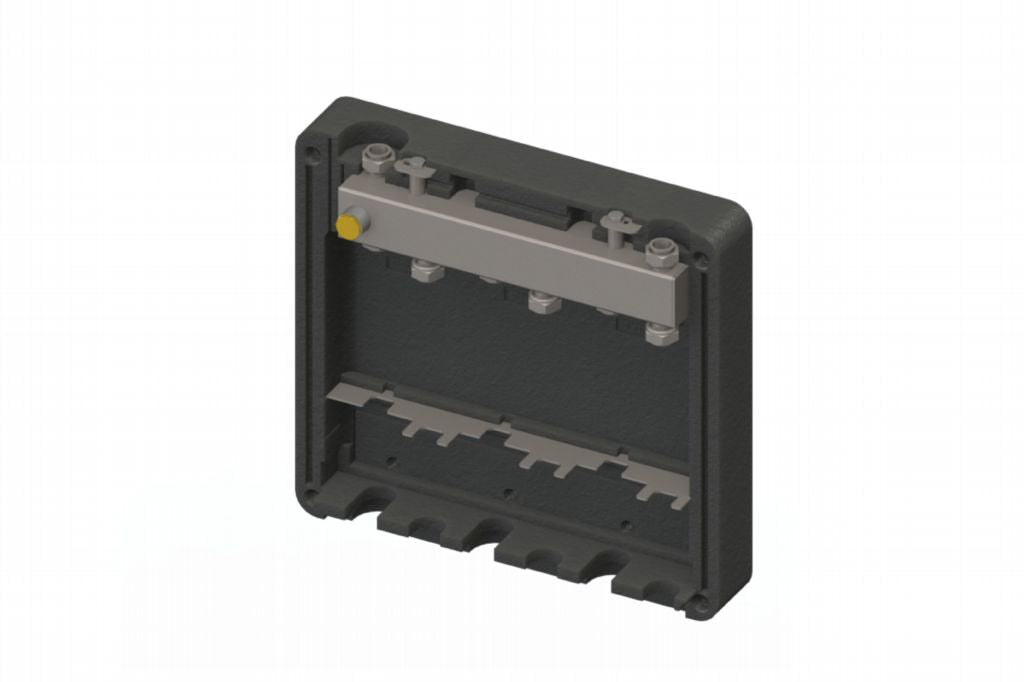

T-BOX is designed to be modular from 2 to 4 zones with first
fix bracket and with EPP black 60 g/l 0.039 W/mK sp 30 mm
insulated box for distribution units and for DUO-SYSTEM zone manifold /hydraulic separators.
