Features
T-BOX D DN20 - Constant Temperature Pump Group
£194.39 GBP

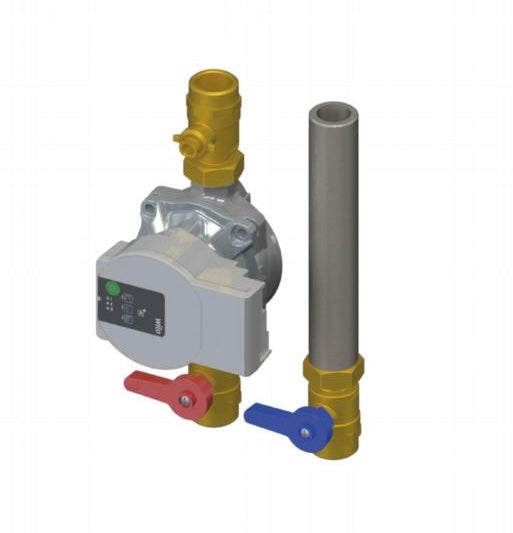

The T-BOX D is a constant temperature pump group complete with WILO PARA SC 15/1-6 high efficiency pump, check valve inside the return pipe, colour coded ball valves and fully insulated pipe work.

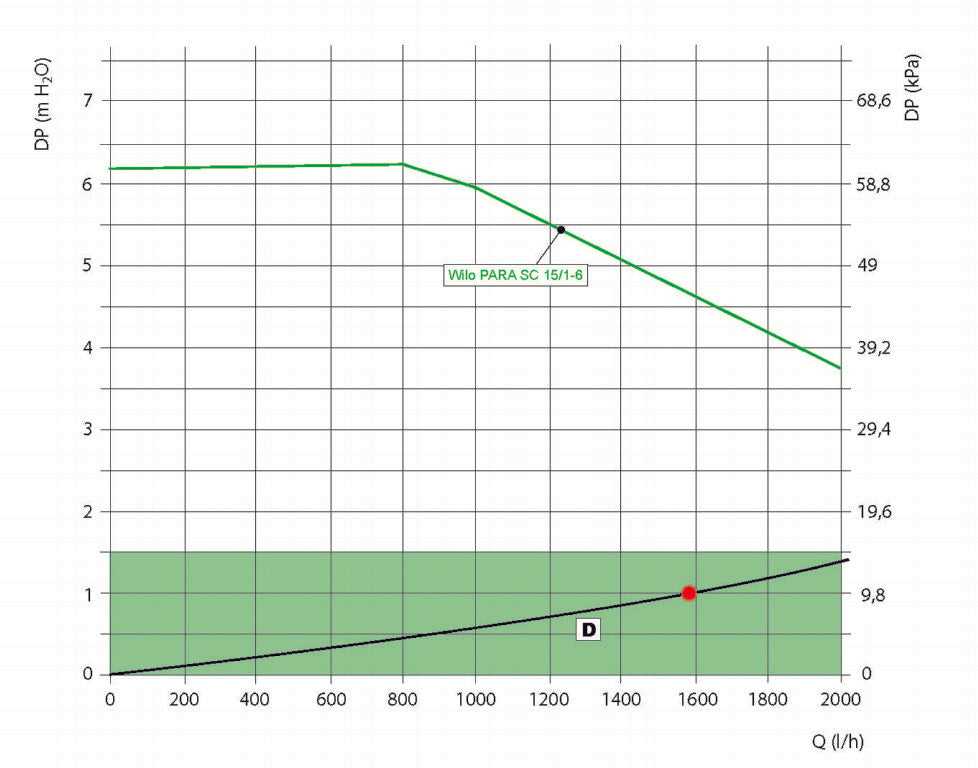

Nominal Flow Rate - 1570 l/h (DP 10 kPa)
Nominal Heating Power - 34.5 kW (DT 20 °C)
High Quality Construction
Ready to install
Modular Design
UK TECHNICAL Support
Styled With
Ultimate Space Saving Design
T-BOX has been designed with the ultimate compactness, modular design and performance, perfect for Domestic and Light Commercial Installations.
Pre-Insulated Perfection
The T-BOX offers superior EPP insulating jacket with 60 g/l 0.039 W/mK sp 30 mm properties, ensuring energy efficiency is maintained.
Lasting Longevity
The T-BOX system is coated in an anti-corrosive material in a process known as cataphoretic. This is the same treatment used by leading pump manufacturer's and has a proven and lasting results.
Unionised Connectivity
The T-BOX has been designed on an installer friendly unionised design. Each module is terminated in a union connection, this enables the build of a whole header / manifold in less than 15 minutes!
All-In-One
The T-BOX includes Isolation Valves, Temperature Gauges, Non-Return Valves, inbuilt wall bracket and a Removable Insulation Jacket to make setup and maintenance a breeze.
Low Loss Or Distribution Header
The T-BOX features DUO-SYSTEM technology which allows the header to function as a Low Loss Header or a Distribution Header, making it flexible for all installation types!
Product Overview
