T-BACK PRO DN25 - Hybrid System Loading Unit

T-BACK PRO DN25 - Hybrid System Loading Unit

£430.49 GBP
Model

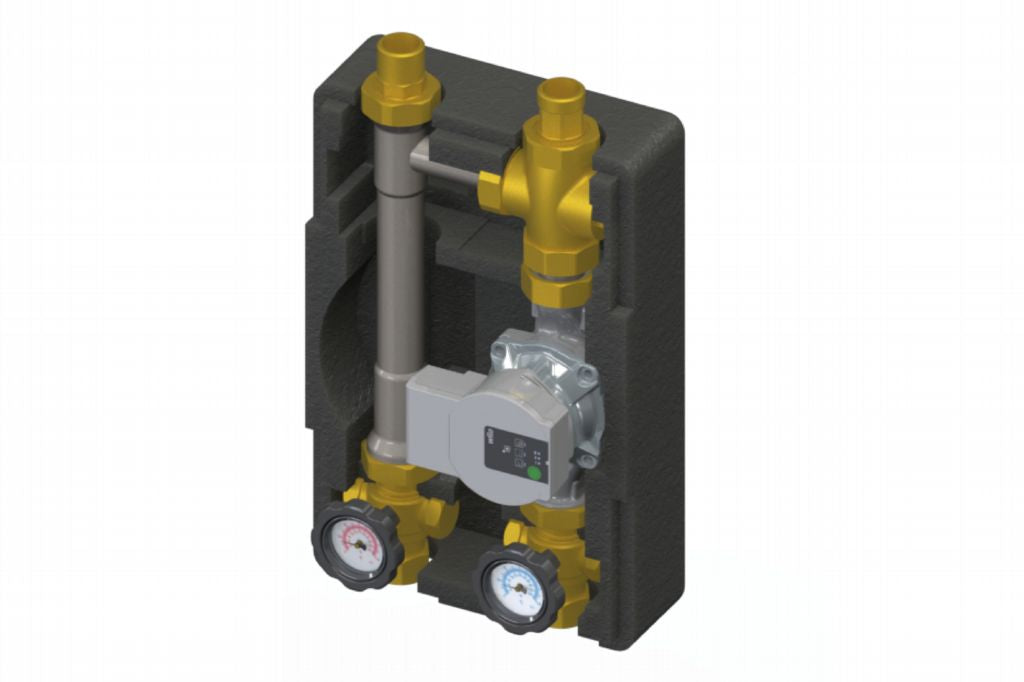

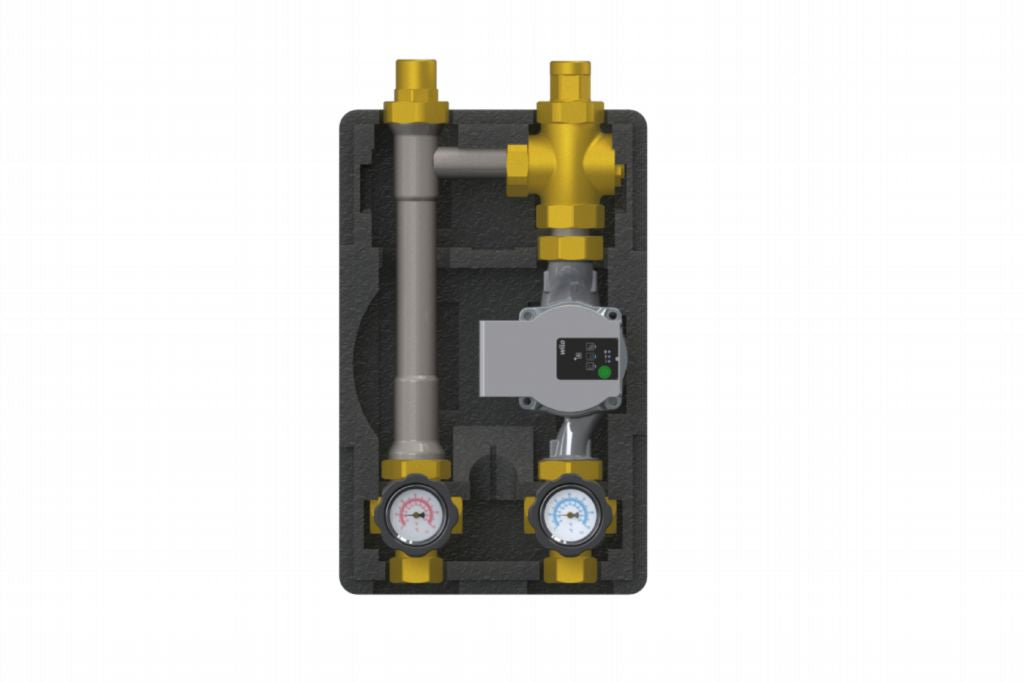

T-BACK PRO is a system that keeps constant the return temperature of the solid fuelboiler (firewood, pellet).

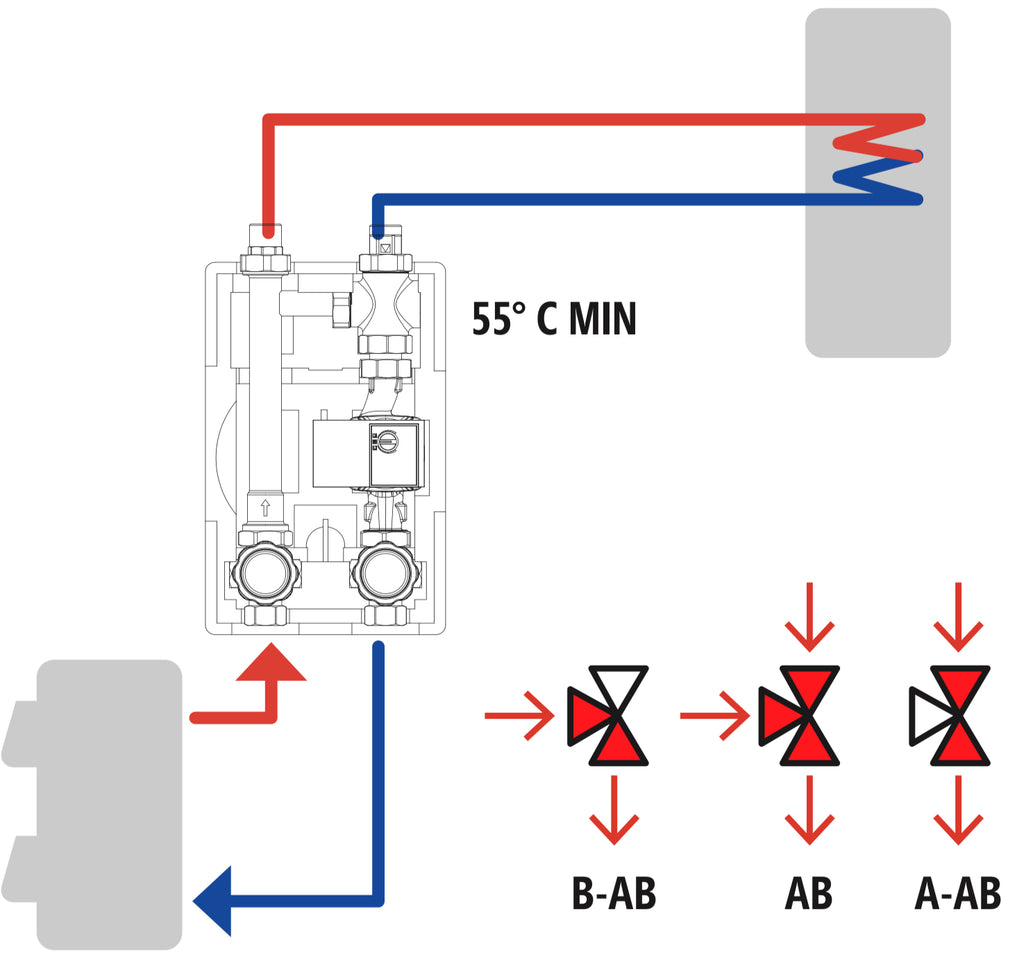

Through the 3-way thermostatic valve the system bypasses the water to the boiler flow on the return way up to the flow temperature set (55°C) is reached.

The valve proportionally closes the bypass and opens the return way;
In this case it allows the total circulation of the water to the users and the heating boiler in order to reach quickly the proper working temperature, prevents damages by smoke or soot inside the chimney flue and avoids the phenomenon of condensation in the heating boiler.

The unit is available with or without pump.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
  • T-BACK PRO DN25 - Hybrid System Loading Unit
T-BACK PRO DN25 - Hybrid System Loading Unit
Specs

Pipework size: DN25
Connection: 1” F x 1” M
Maximum Temperature: 95 Deg C
Insulation Material: EPP 40 g/l 0.036 W/mK sp 20mm
Check Valve Material: Acetal Copolymer
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM

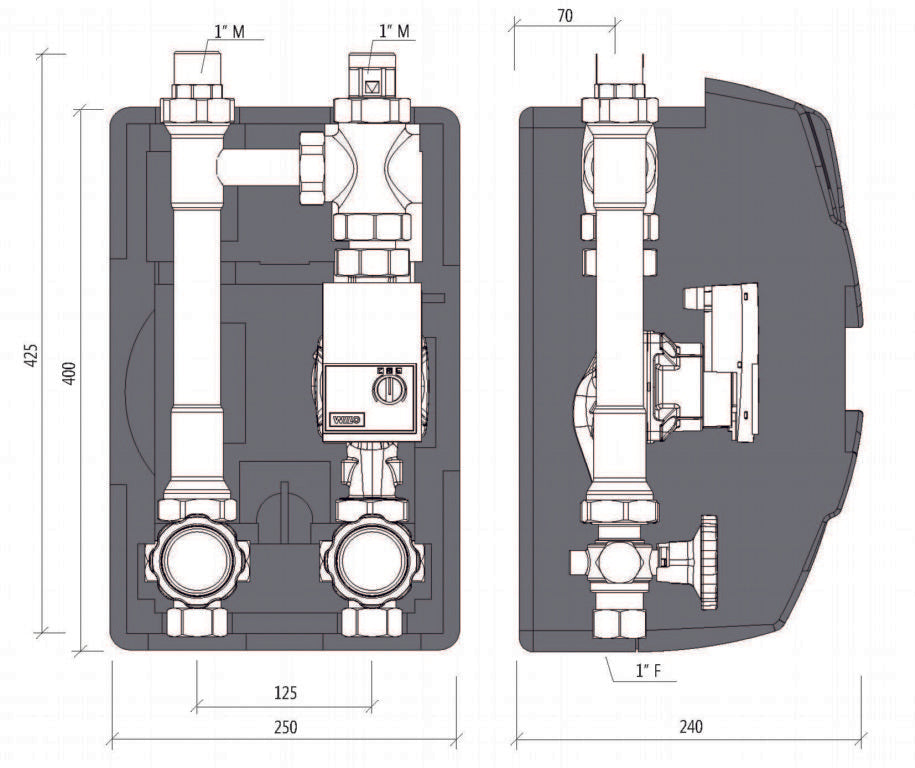

Dimensions: 280x275x440 mm
Benefits

• Keeps constant the return temperature of the solid fuel boiler;
• The heating boiler can quickly reach the proper working temperature;
• Prevents damages by smoke or soot inside the chimney flue;
• Control and maintenance of the pump without having to empy the system;
• All seals are assured by flat fittings and gaskets;
• Flanged ball valves with thermometers on flow/return position;
• Easy accessibility to all components;

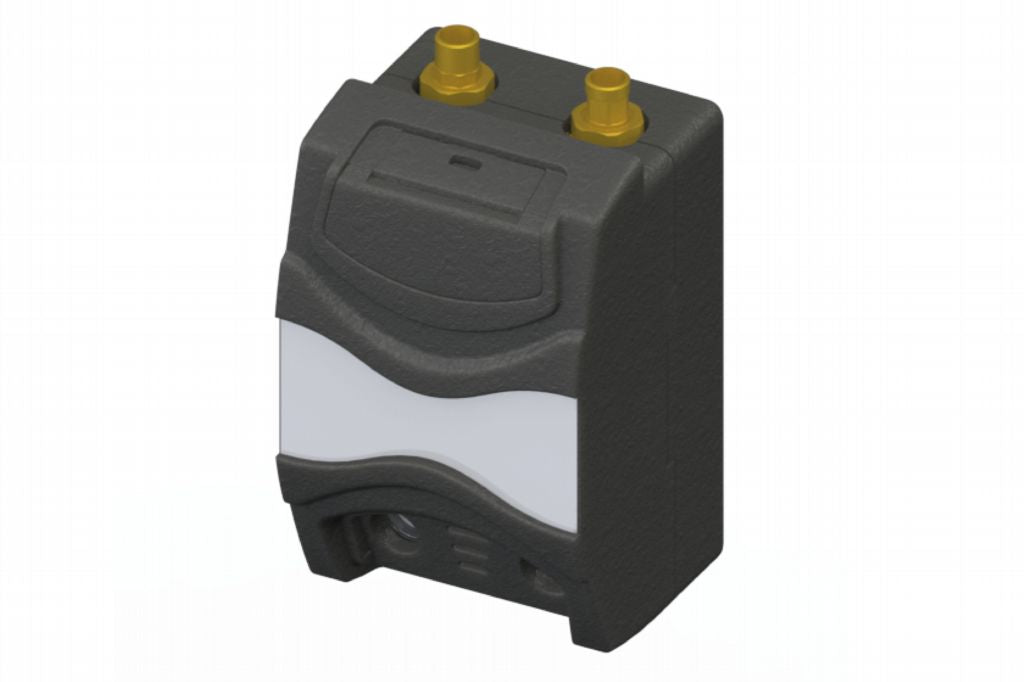

• Thermal insulation with black EPP;
• Directly connectable to the zone manifold.
Details

T-BACK PRO is a system that keeps constant the return temperature of the solid fuel boiler (firewood, pellet).
Through the 3-way thermostatic valve the system bypasses the water to the boiler flow on the return way up to the flow temperature set (55°C) is reached.

The valve proportionally closes the bypass and opens the return way;

In this case it allows the total circulation of the water to the users and the heating boiler in order to reach quickly the proper working temperature, prevents damages by smoke or soot inside the chimney flue and avoids the phenomenon of condensation in the heating boiler.

The unit is available with or without circulator.
