Play C1

Name: Play C1
Brand: Lovato Spa
SKU: 49047635
Price: 472.19 GBP
Availability: InStock

£472.19 GBP

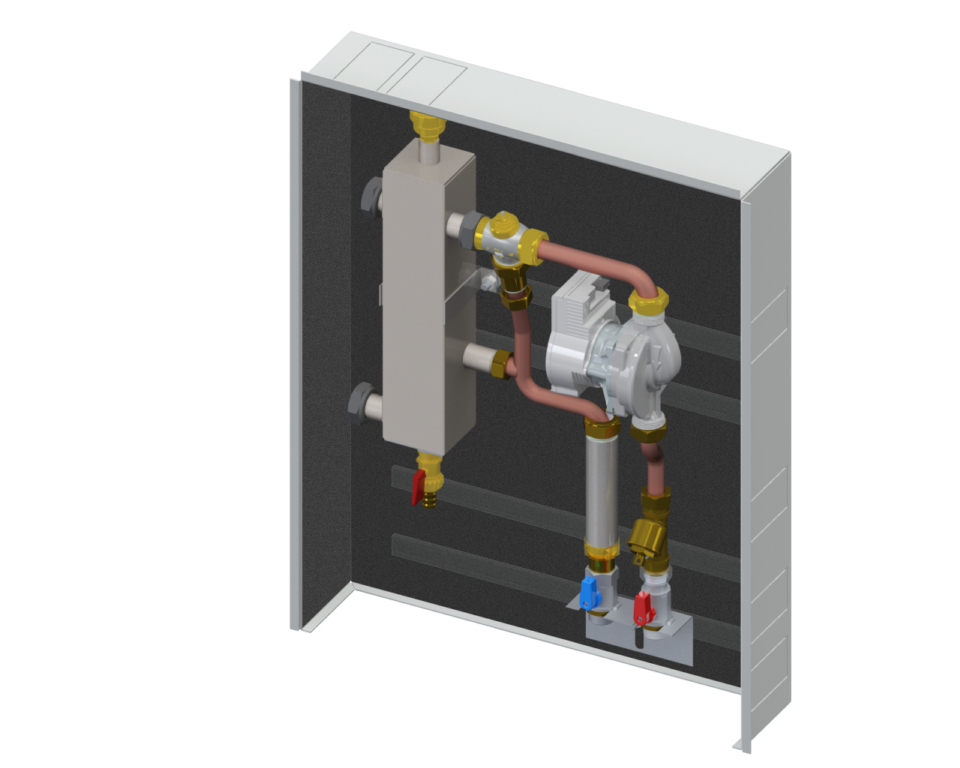

PLAY is a compact distribution module for zone heating systems, which can be connected to different energy sources (traditional and condensing boilers, heat pumps, biomass systems, combined systems, etc.) and is equipped with zone manifold/hydraulic separator

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With

Specs

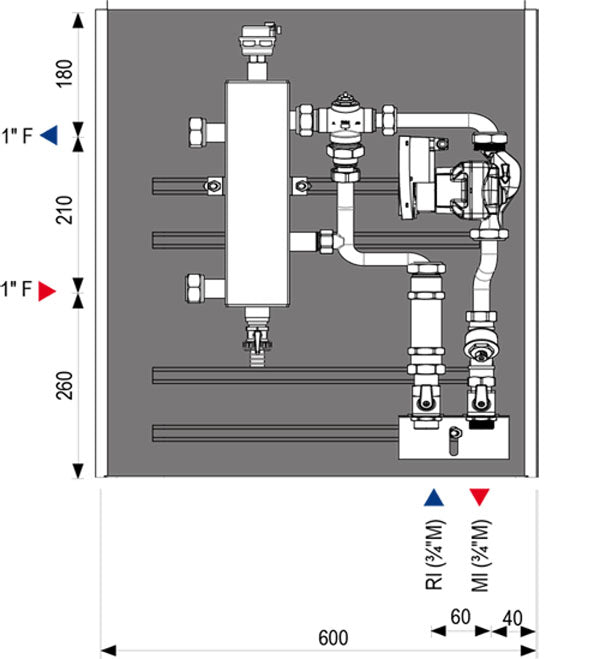

Connection Size: 3/4” - 1” M
Output @ 20DT: 23.3 kW

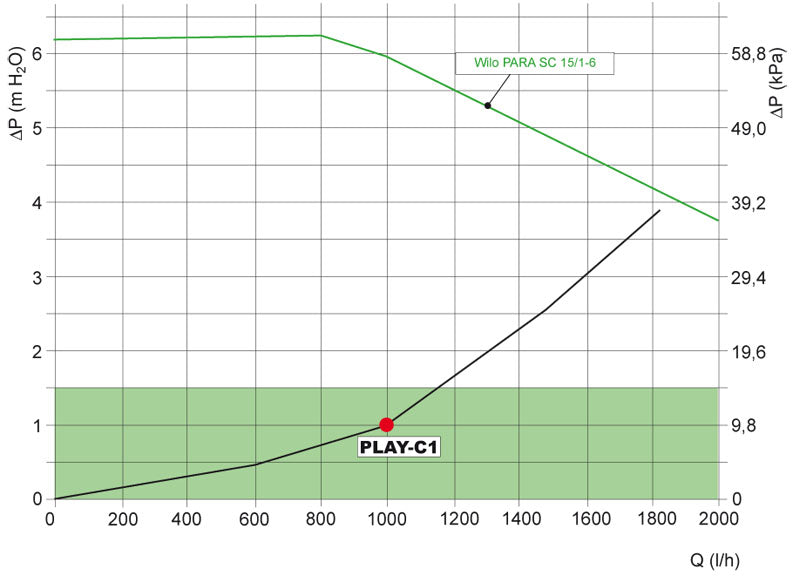

Flow Rate @ 20DT: 1 m3/h
Maximum Temperature: 95 Deg C
Maximum Temperature: 10 Deg C
Maximum Pressure: 6 Bar
Insulation Material: Trocellen C-EN5F13
Pump: Wilo PARA SC 15/1-6

Benefits

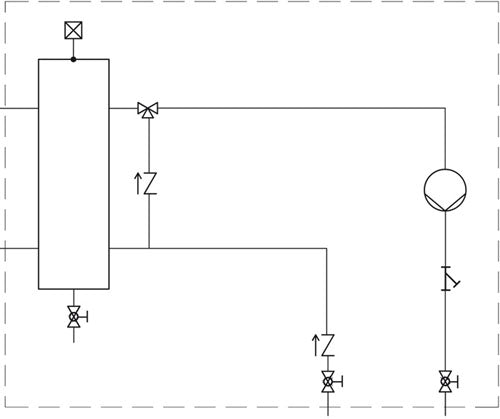

•Zone manifold with integrated hydraulic separator, separation system, air vent and dirty separation system
•Universal basic module designed for high temperature, variable temperature or fixed point control.
• Possibility to install the module also under the gas boiler thanks to its compact dimensions
•Box with thermal/acoustic insulation.

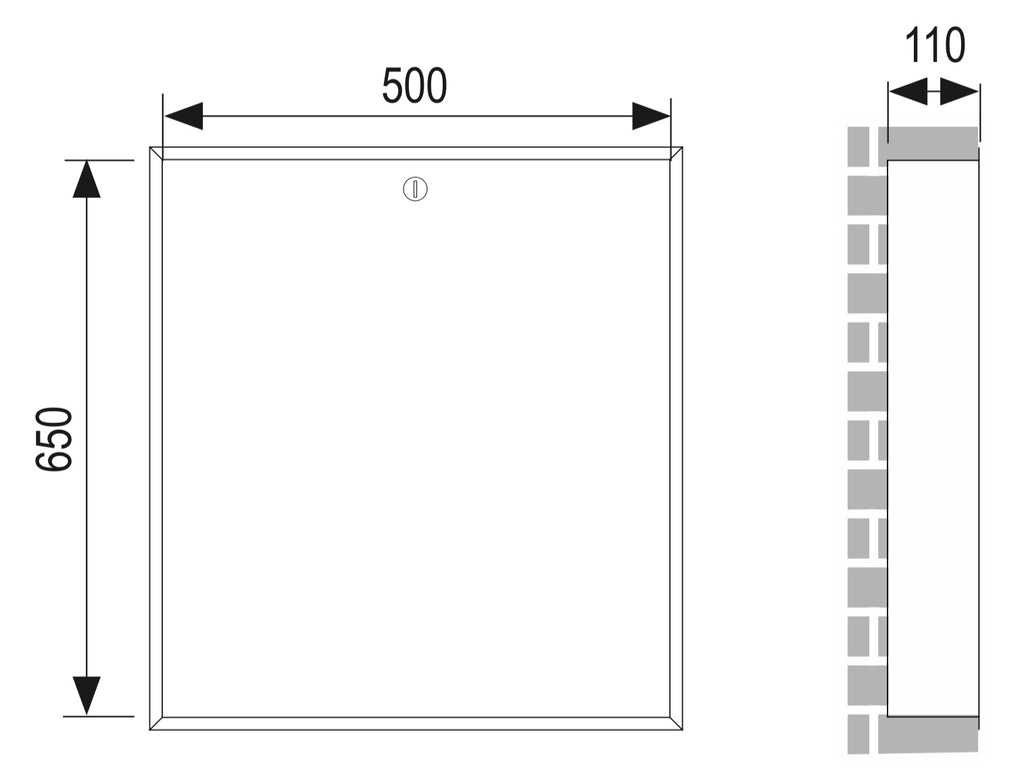

•Depth 110 mm
• Simplified hydraulic connections and seals assured by flat faces.

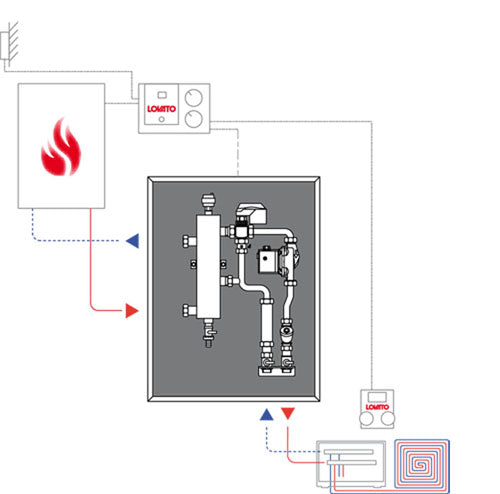

• Designed for installation of Lovato heating controllers with wheather compensation and ouside sensor for mixing unit with modulating temperature.
•Easy installation and maintenance

Details

The Play is a compact distribution module for zone heating systems, suitable for several heat sources (traditional gas and condensing heating boilers, heat pumps, biomass and combi systems ect.)

Each circulation unit has a 3-way diverting / mixing valve managed by:

- Electrothermic actuator On / Off (High Temperature)
- Thermostatic actuator (Constant Temperature)
- Electric actuator (Modulating Temperature) Suitable for use with the Lovato Controller Climagic Easy H (1F) / Climagic Pro HC (2F)
