C70/F PROFITEK - KOMPAT DN25 Zone Manifolds

Specs

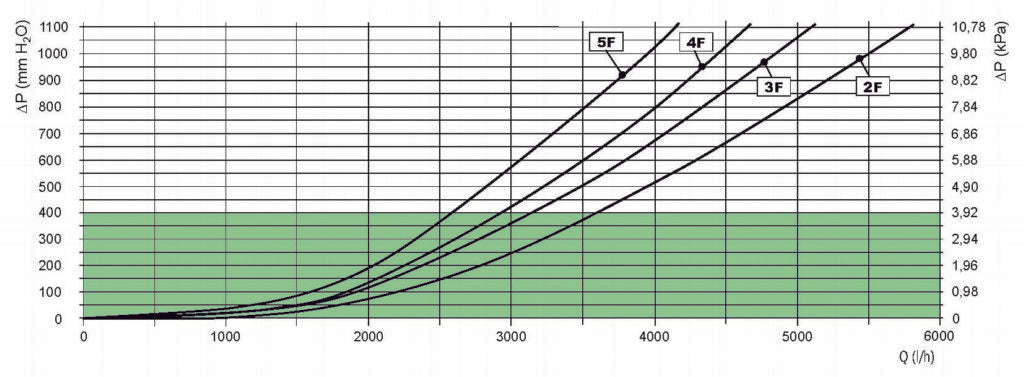

Pipework size: DN25
Output @ 20DT: 93 kW
Flow Rate @ 20DT: 4000 l/h
Maximum Temperature: 110 Deg C
Maximum Pressure: 6 Bar
Insulation Material: EPP Black 40 g/l 0.039 W/mK sp 30mm
Circulation Unit Material: S235
Dimensions -
2 Zone: 125x170x505 mm
3 Zone: 130x170x755 mm
4 Zone: 120x200x1070 mm
5 Zone: 120x200x1300 mm

Benefits

It allows the management of multiple zone plants:

• Built with a square profile.
• Thermal insulation in black EPP
• 3 versions according to connections:
- “C70/F” with flanged connections
- “C70/M” with “Minipump” ball valve
- “C70/F” with threaded connections

Delivery chamber of Ø 38 (DN40)
Return chamber of Ø 38 (DN40)

Details

KOMPAT DN 25 is used for the distribution and management of zones heating systems.

Made up a hydraulic separator, a zone manifold from 2 to 5 zones and 3 different circulating units:

- direct unit (high temperature);
- constant temperature mixing unit (controlled by thermostatic actuator);
- modulating temperature mixing unit (controlled by different electric actuators).

C70/F PROFITEK - KOMPAT DN25 Zone Manifolds

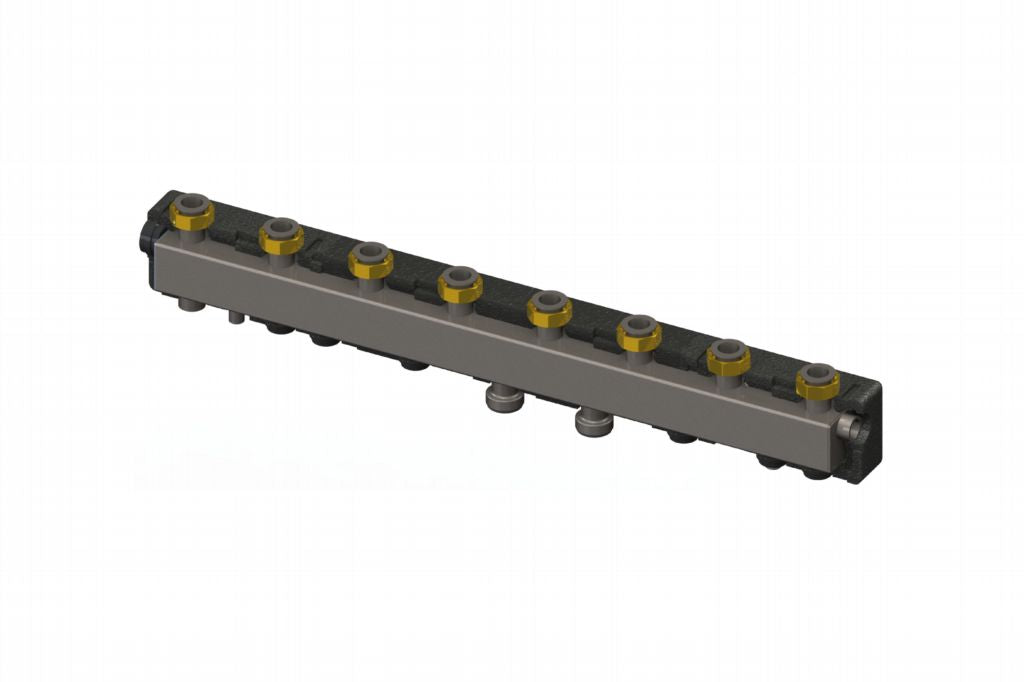

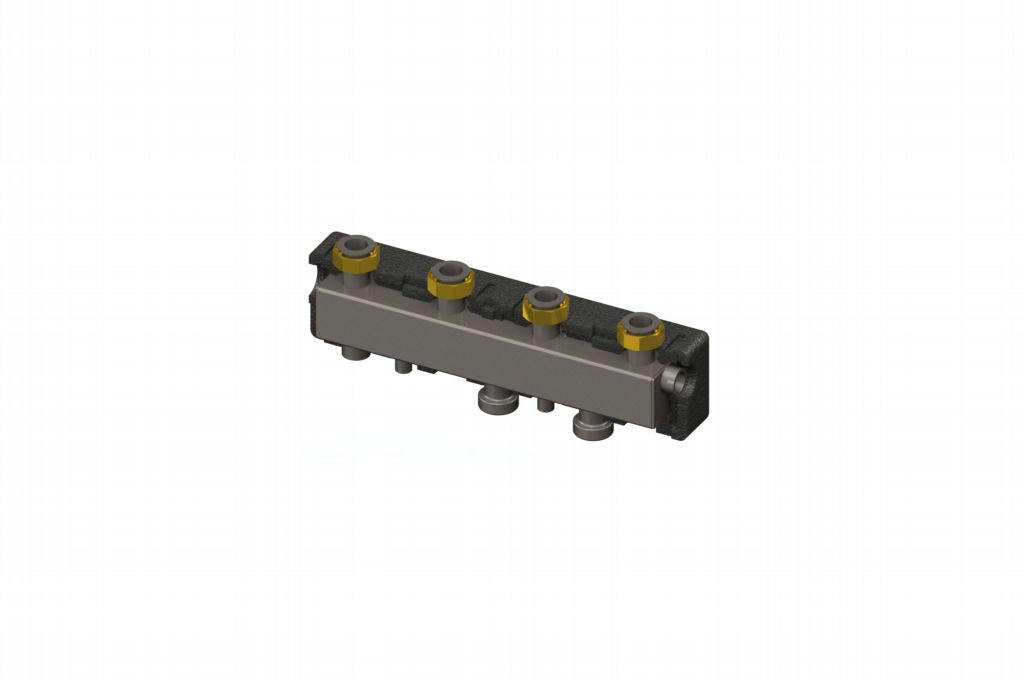

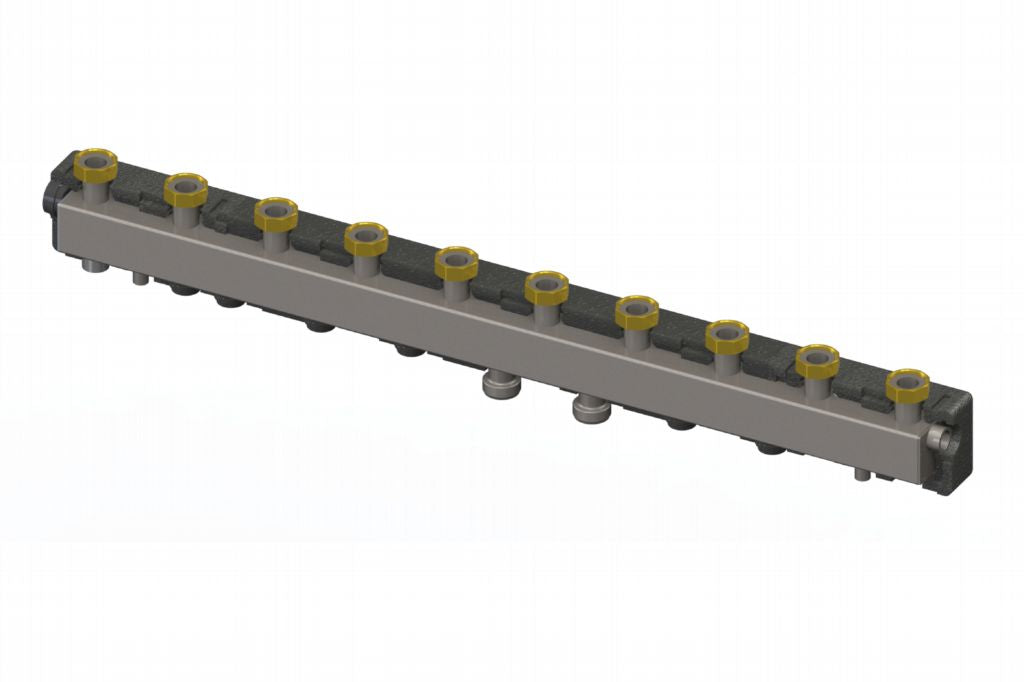

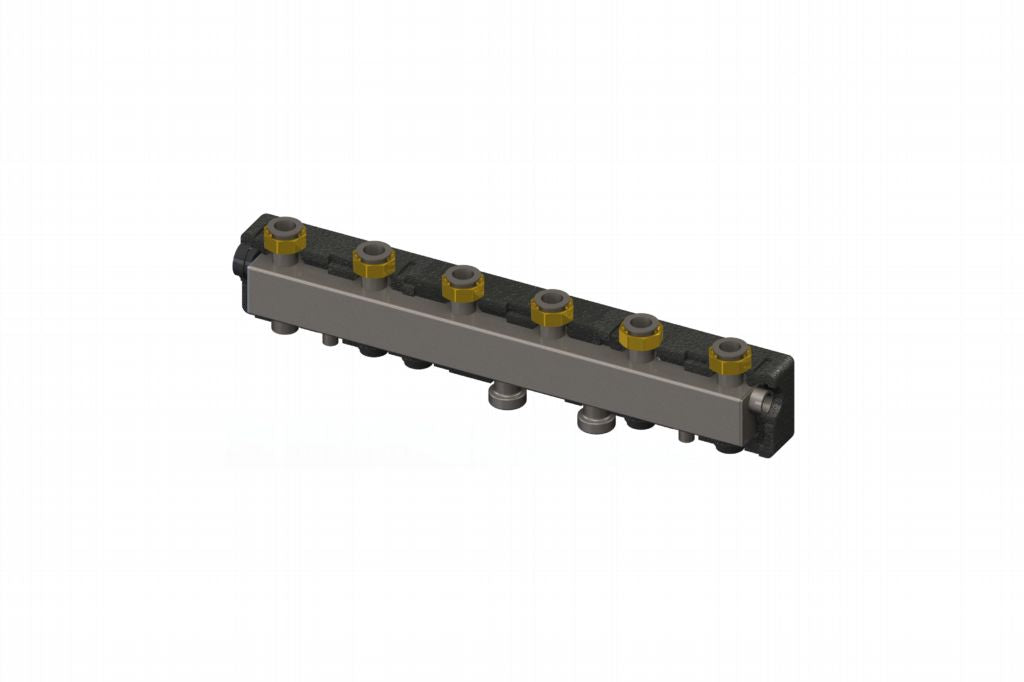

Zone manifold with nut connections

The DN25 "C70/F" series double chamber zone manifolds can manage from 2 to 5 zones with different system requirements: • they allow the management of multi-zone systems• built with square profile• thermally insulated with black EPP 40 g/l

Flow chamber equal to Ø 38 (DN40)Return chamber equal to Ø 38 (DN40)

Styled With

Specs

Benefits

Details

You may also like

The DN25 "C70/F" series double chamber zone manifolds can manage from 2 to 5 zones with different system requirements:
• they allow the management of multi-zone systems
• built with square profile
• thermally insulated with black EPP 40 g/l

Flow chamber equal to Ø 38 (DN40)
Return chamber equal to Ø 38 (DN40)
