HVTC DN20 Mixing Valve

HVTC DN20 Mixing Valve

£88.78 GBP
Handing
The DN20 - 3/4" mixing valve HVTC-90" is controlled by a thermostatic actuator by which the temperature to be maintained constant in the flow is set.

The valve is supplied with 2 by-passes:

- by upper by-pass (system side): it takes part of the system return water and flows it into the flow, allowing heat recovery and temperature balancing in radiant panel systems.

- by lower by-pass (boiler side):it allows the bypassing of the flow water in presence of the pump in the boiler and no hydraulic separator.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
HVTC DN20 Mixing Valve
  • HVTC DN20 Mixing Valve
  • HVTC DN20 Mixing Valve
  • HVTC DN20 Mixing Valve
  • HVTC DN20 Mixing Valve
  • HVTC DN20 Mixing Valve
  • HVTC DN20 Mixing Valve
  • HVTC DN20 Mixing Valve
  • HVTC DN20 Mixing Valve
  • HVTC DN20 Mixing Valve
  • HVTC DN20 Mixing Valve
HVTC DN20 Mixing Valve
Specs

Pipework size: DN20
Connection: 1” M - 1” F
KVS: 3.2
Maximum Temperature: 110 Deg C
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM
Benefits

• 3-way mixing valve with electric modulating control
• Easy to change the flow from right to left
• 2 by pass integrated
Details

The 3-way mixing valve DN20 - 3/4" HV3 is designed for control by an electric rotary actuator.

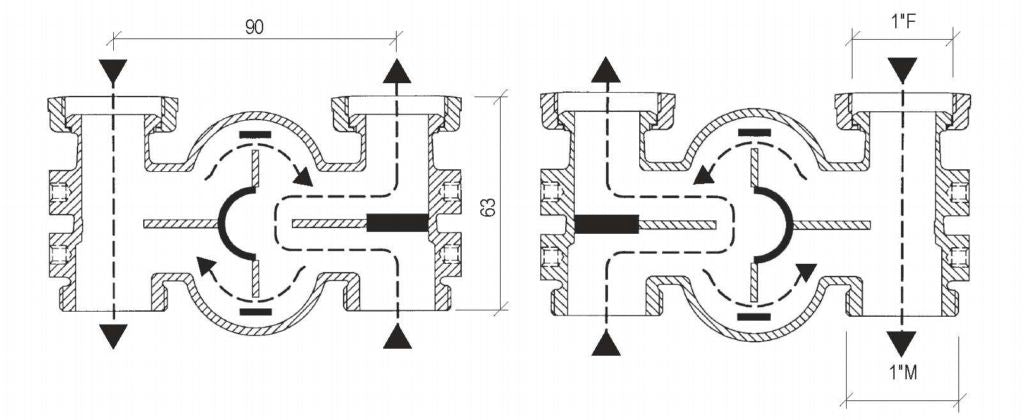

By changing the position of the internal plug, it is possible to change the valve flow from right to left.

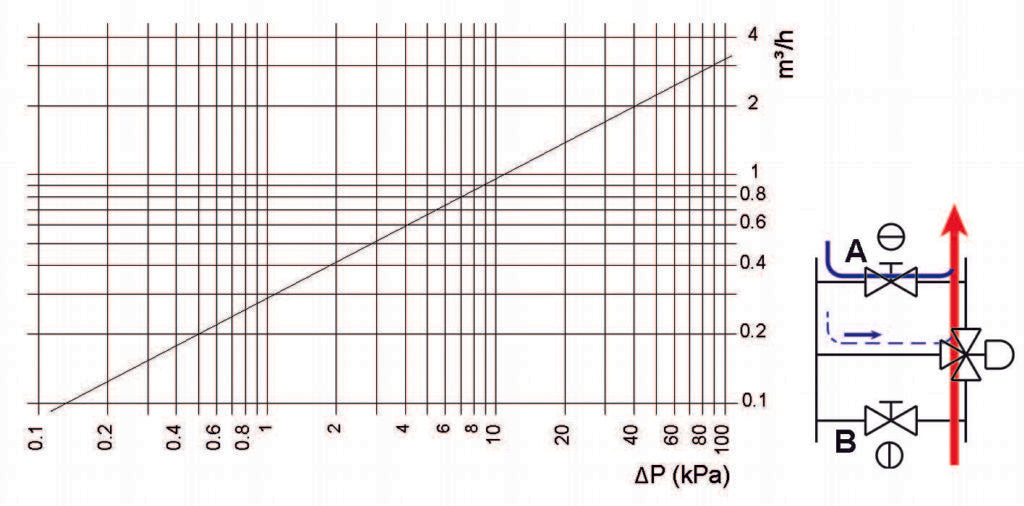

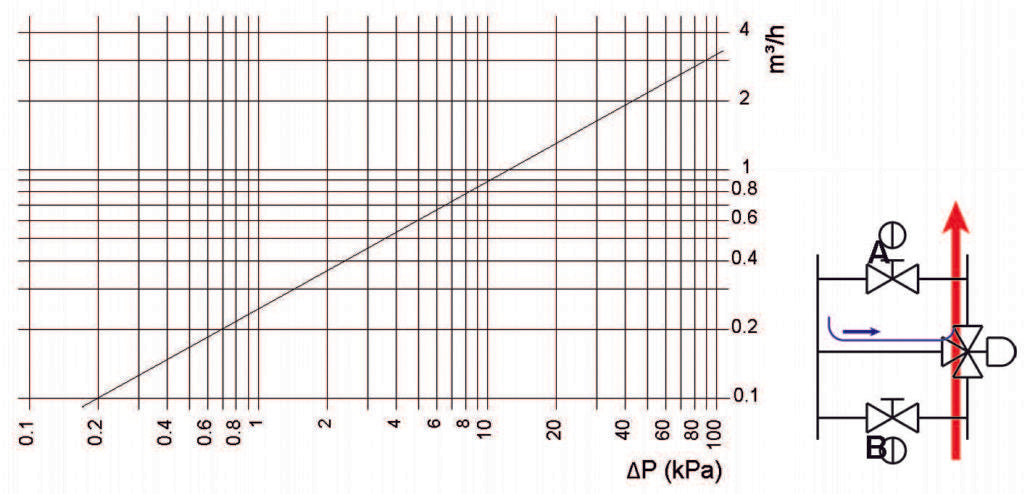

The valve is supplied with 2 by-passes:

- by upper by-pass (system side): it takes part of the system return water and flows it into the flow, allowing heat recovery and temperature balancing in radiant panel systems.

- by lower by-pass (boiler side):it allows the bypassing of the flow water in presence of the pump in the boiler and no hydraulic separator.
