£1,610.56 GBP
The Lovato DN50 TV3-300 mixing pump group is used for the mixed circulation of the heating/cooling transfer fluid in the systems. It can be directly installed on the zone manifolds Hercules range independently to the zone manifold connections (adapter kit for zone manifold DN65).

Hercules is the first ready-to-use system on which twin pumps can be installed.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
Hercules Heating Pump Group, Pump Group Cut
  • Hercules Heating Pump Group, Pump Group Cut
  • Hercules Heating Pump Group, Pump Group Insulated
  • Hercules Heating Pump Group, Pump Group Front

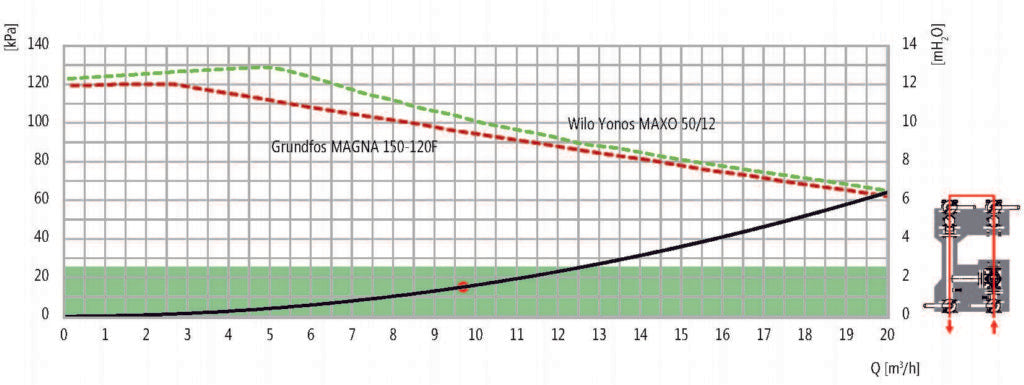

  • Hercules Heating Pump Group, Pump Group Performance Chart

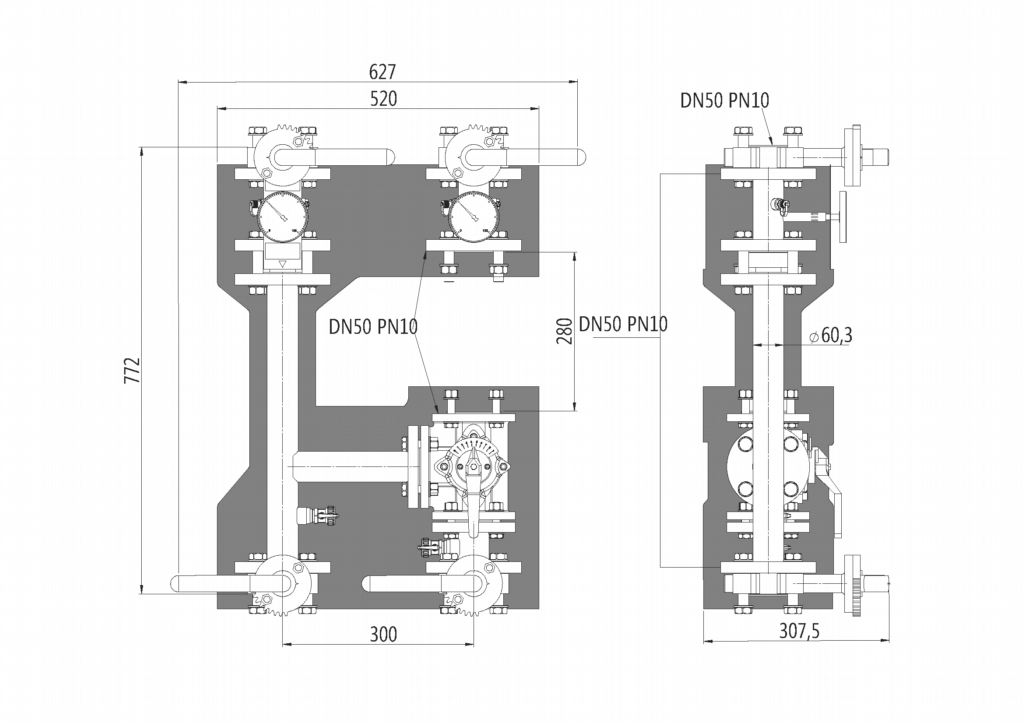

  • Hercules Heating Pump Group, Pump Group Dimensional Drawing
  • Hercules Heating Pump Group, Pump Group Cut
  • Hercules Heating Pump Group, Pump Group Insulated
  • Hercules Heating Pump Group, Pump Group Front
  • Hercules Heating Pump Group, Pump Group Performance Chart
  • Hercules Heating Pump Group, Pump Group Dimensional Drawing
Hercules Heating Pump Group, Pump Group Cut
Specs

Connection: DN50
Output @ 20DT: 225 kW
Flow Rate @ 20DT: 9.7 m3/h
Maximum Temperature: 100 Deg C
Maximum Pressure: 10 Bar
KVS: 40
Insulation Material: Trocellen C080 RN2 sp 30mm 0.034 W/mK
Material: Steel - Fe EN 10217-1
Surface Treatment: Painted with Epoxy Powder Coating
Dimensions: 2 Zone: 940x660x477mm
Benefits

• plug&play module
• Possibility of right/left flow reversal on site
• Ready for the installation of twin pumps
• Fully insulated with easy access to the components
• Ready for the installation of temperature and pressure sensors
• Painted with epoxy powder coating
• Tested, insulated and ready to use
Details

The Lovato DN40 TV3-300 mixing pump group is used for the mixed circulation of the heating/cooling transfer fluid in the systems. It can be directly installed on the zone manifolds Hercules range independently to the zone manifold connections (adapter kit for zone manifold DN65).

Hercules is the first ready-to-use system on which twin pumps can be installed.
