CP70 Plus Low Loss Header - KOMPAT DN25

Name: CP70 Plus Low Loss Header - KOMPAT DN25
Brand: Lovato Spa
SKU: 49017051
Price: 137.77 GBP
Availability: InStock

£137.77 GBP

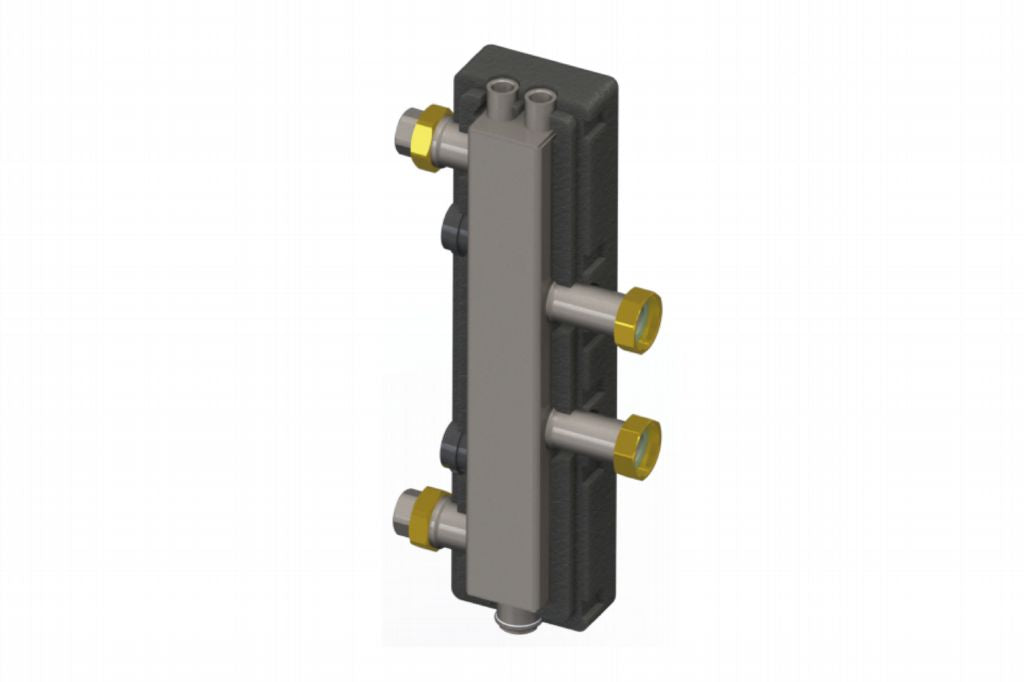

The "CP70 PLUS" hydraulic separator is an airlock designed to make independent, connected hydraulic circuits.

It is used when, in the same system, the pump of the primary circuit (energy source) and one or more pumps of the secondary circuit (utilities) interact. Its use helps to eliminate problems related to variations in flow rate and head of the circuits.

In addition, the separator performs the function of deaerator.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With

Specs

Pipework size: DN25
Connection: 1 1/2” M x 1 1/2” F
Output @ 20DT: 93 kW
Flow Rate @ 20DT: 4000 l/h
Maximum Temperature: 110 Deg C
Maximum Pressure: 6 Bar
Internal Speed: 0.27 m/s
Speed at Entrance: 1.20 m/s
Insulation Material: EPP 40 g/l 0.036 W/mK sp 25mm
Material: Steel - S235
Surface Treatment: Cataphoresis Anti-Corrosion

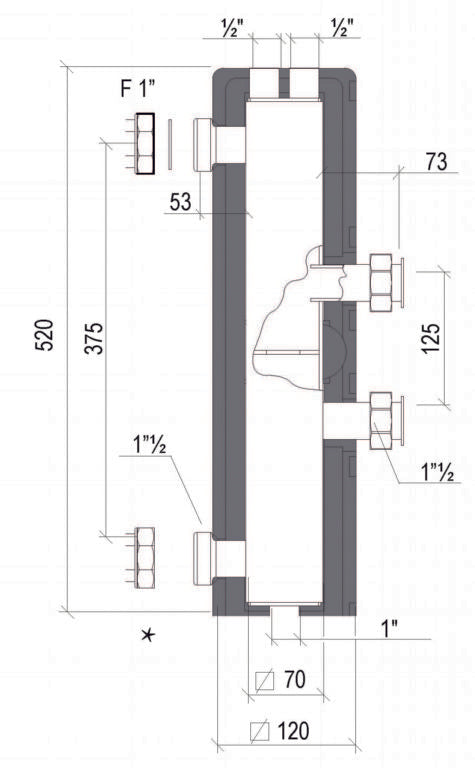

Dimensions: 130x535x196.5 mm

Benefits

• It renders connected independent hydraulic circuits
• It guarantees that secondary circuits operate efficiently
which ensure the hydraulic need of air-conditioning systems
• Air vent connection and draining of plant impurities (muds)

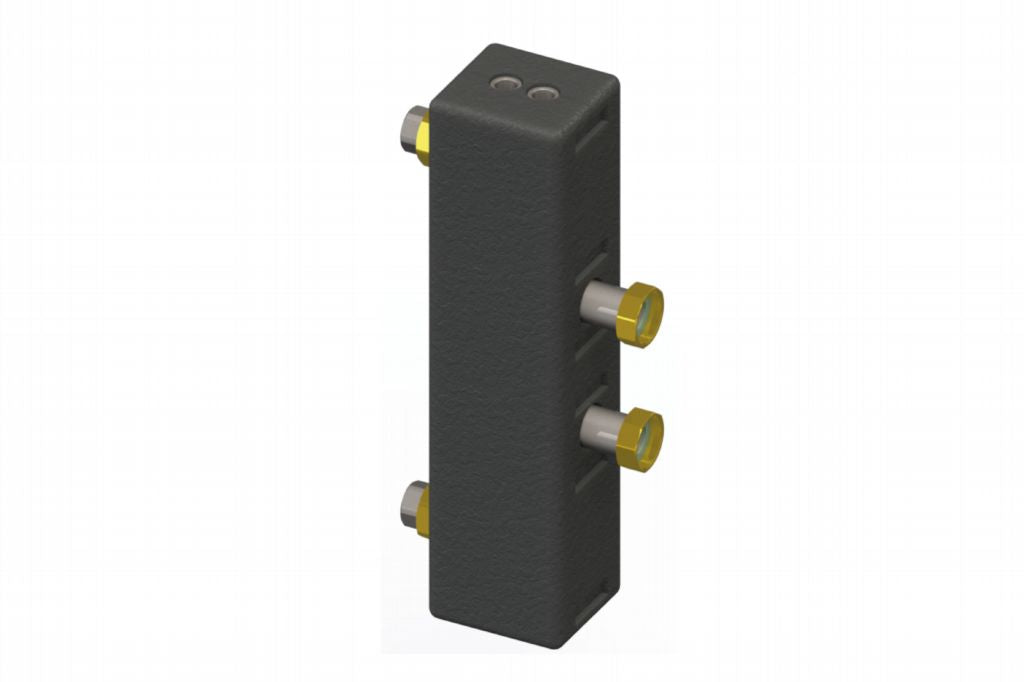

• Thermal insulation in black EPP
• Connection kit to zone manifold.

Details

CP 70 is a compensation chamber which renders connected independent hydraulic circuits.

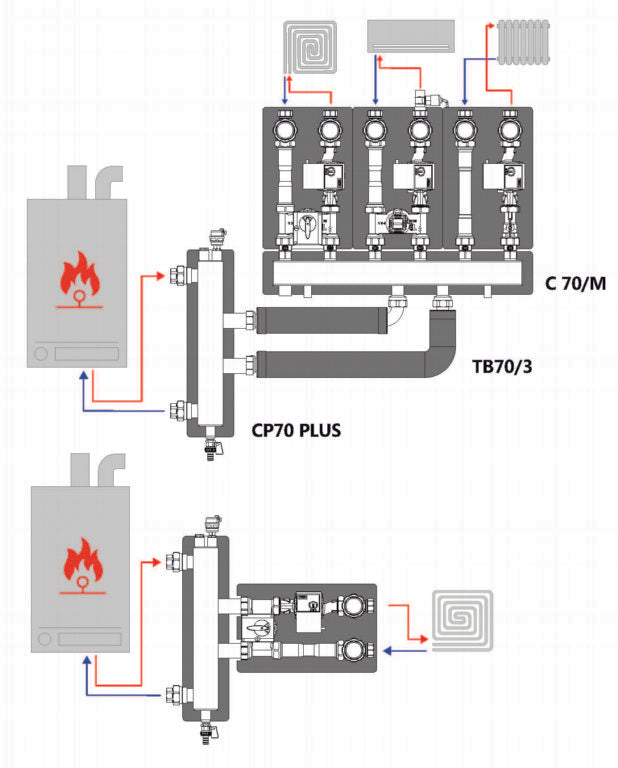

It is usually installed when the primary circuit circulator interacts with one or more of the secondary circuit circulators in the same system.

Therefore, it avoids problems relating to flow rate variations and circuit prevalence.
