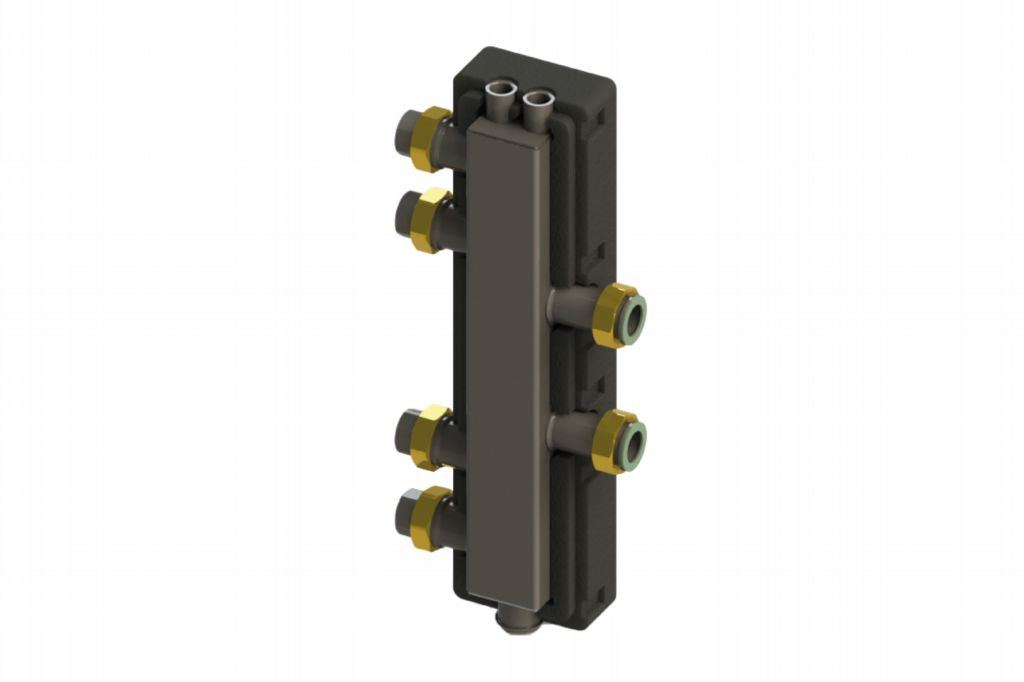

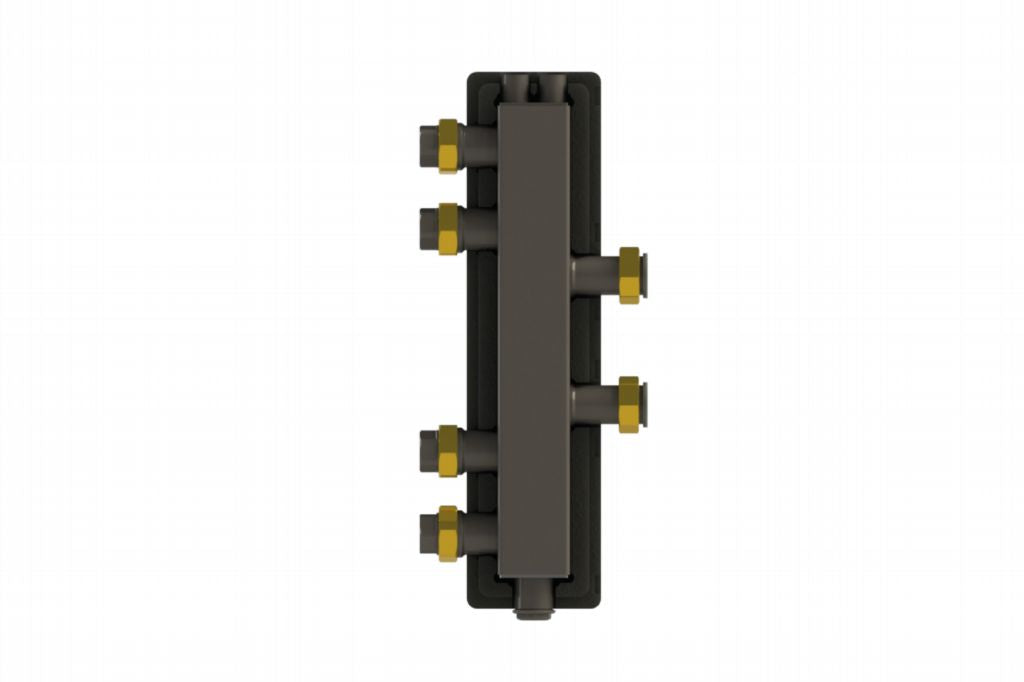

CP70 Hybrid Low Loss Header - KOMPAT DN25

CP70 Hybrid Low Loss Header - KOMPAT DN25

£163.24 GBP
The CP70 hydraulic separator is an airlock designed to make independent, connected hydraulic circuits.

It is used when, in the same system, the pump of the primary circuit (energy source) and one or more pumps of the secondary circuit (utilities) interact.
its use helps to eliminate problems related to variations in flow rate and head of the circuits.

In addition, the separator performs the function of deaerator.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
  • CP70 Hybrid Low Loss Header - KOMPAT DN25
CP70 Hybrid Low Loss Header - KOMPAT DN25
Specs

Pipework size: DN25
Connection: 1 1/2” M x 1 1/2” F
Output @ 20DT: 93 kW
Flow Rate @ 20DT: 4000 l/h
Maximum Temperature: 110 Deg C
Maximum Pressure: 6 Bar
Internal Speed: 0.27 m/s
Speed at Entrance: 1.20 m/s
Insulation Material: EPP 40 g/l 0.036 W/mK sp 25mm
Material: Steel - S235
Surface Treatment: Cataphoresis Anti-Corrosion

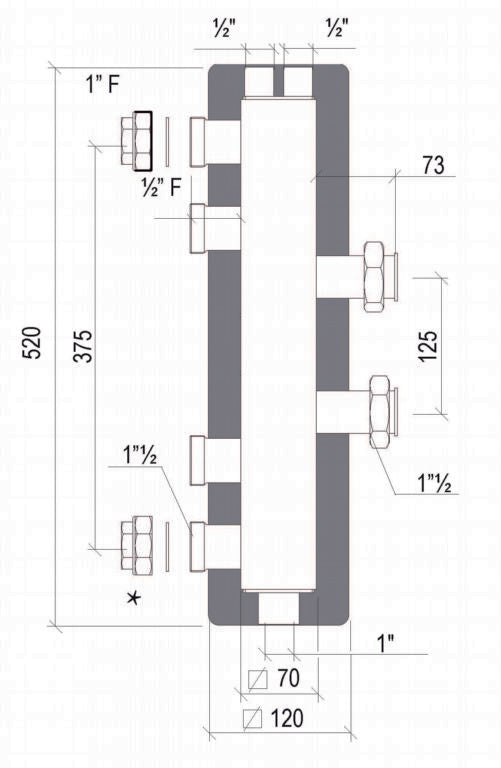

Dimensions: 130x535x196.5 mm
Benefits

• It renders connected independent hydraulic circuits
• It guarantees that secondary circuits operate efficiently
which ensure the hydraulic need of air-conditioning systems
• Air vent connection and draining of plant impurities (muds)

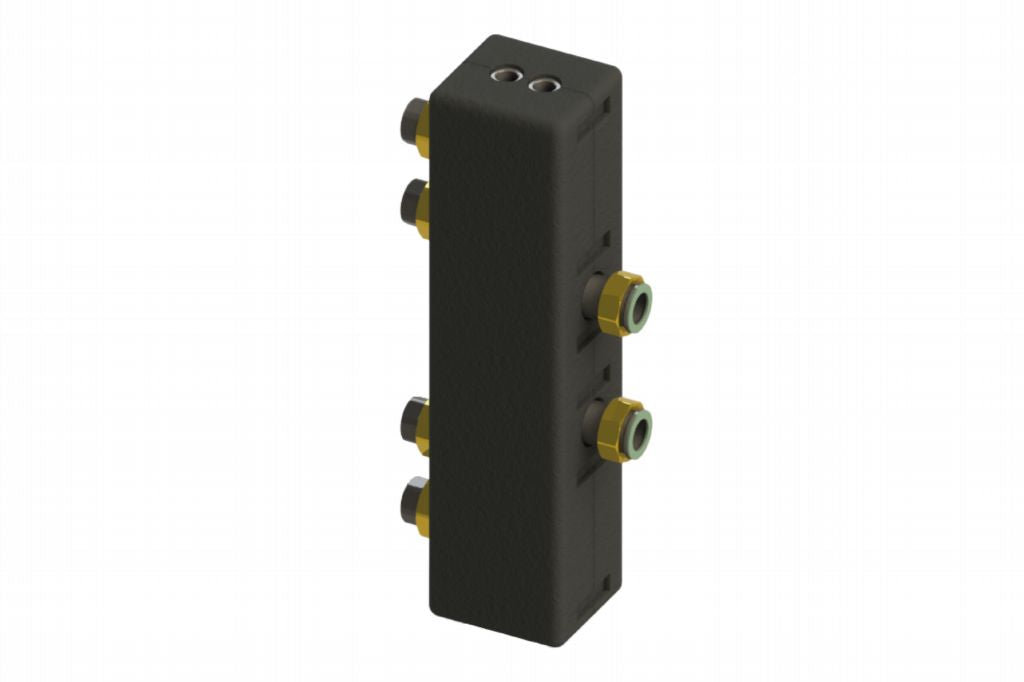

• Thermal insulation in black EPP
• Connection kit to zone manifold.
Details

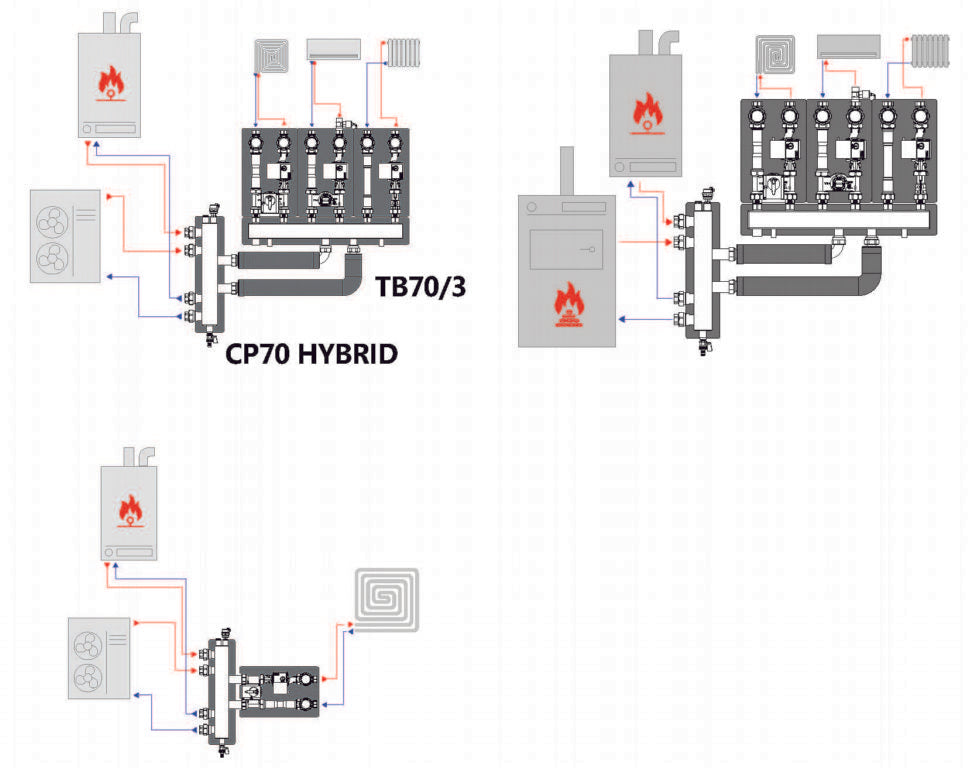

CP70 HYBRID is a special hydraulic separator suitable for connecting up 2 primary heat sources.

It could be quickly and easily installed with hybrid system such as heating boiler + heat pump.

Therefore, it avoids problems relating to flow rate variations and circuit prevalence.

Ready for the installation of several accessories.
