CP60 Low Loss Header

CP60 Low Loss Header

£1.20 GBP
The CP60 hydraulic separator is an airlock designed to make independent, connected hydraulic circuits.

It is used when, in the same system, the pump of the primary circuit (energy source) and one or more pumps of the secondary circuit (utilities) interact.

In addition, the separator performs the function of deaerator.

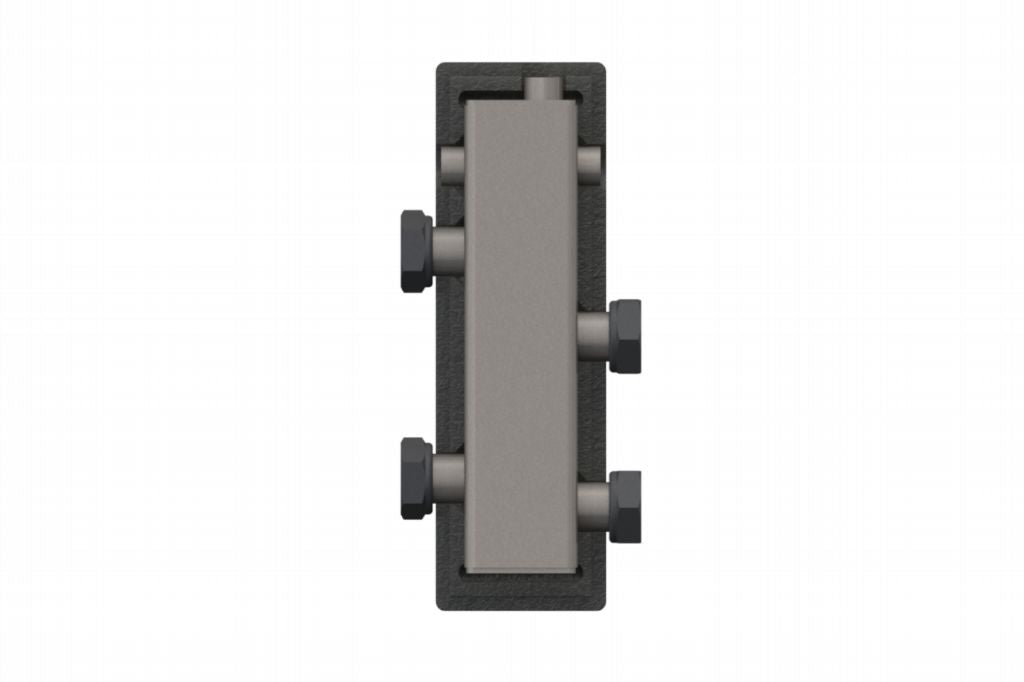

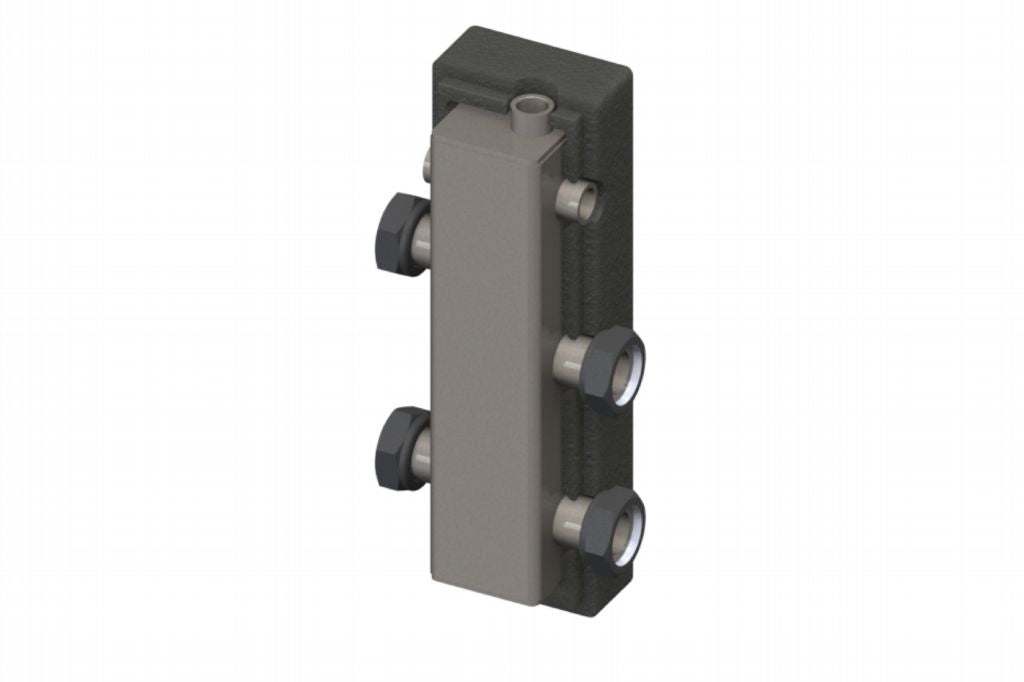

CP60 is built with painted steel square profile, is hydraulically tested and is supplied complete with insulation.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
CP60 Low Loss Header
  • CP60 Low Loss Header
  • CP60 Low Loss Header
  • CP60 Low Loss Header
  • CP60 Low Loss Header
  • CP60 Low Loss Header
  • CP60 Low Loss Header
  • CP60 Low Loss Header
  • CP60 Low Loss Header
  • CP60 Low Loss Header
  • CP60 Low Loss Header
  • CP60 Low Loss Header
  • CP60 Low Loss Header
CP60 Low Loss Header
Specs

Pipework size: DN20
Connection: 1” F
Output @ 20DT: 39 kW

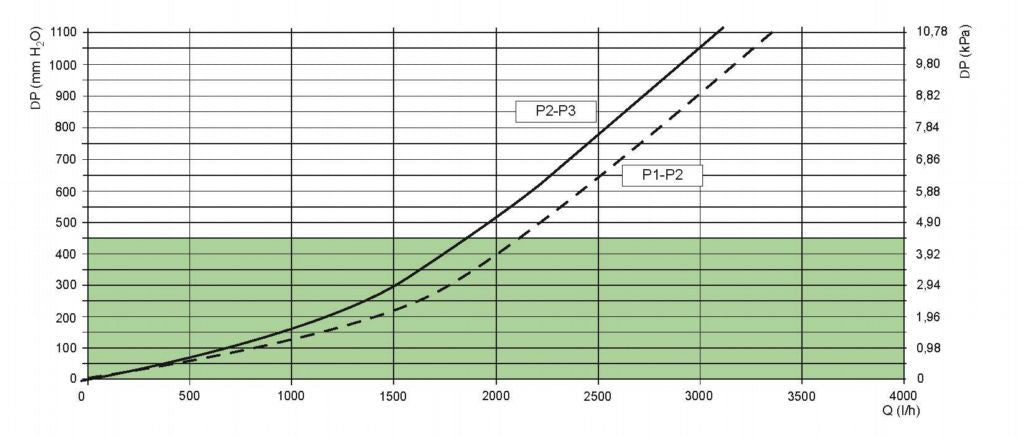

Flow Rate @ 20DT: 1700 l/h
Maximum Temperature: 110 Deg C
Maximum Pressure: 6 Bar
Internal Speed: 0.26 m/s
Speed at Entrance: 1.00 m/s
Insulation Material: EPP 40 g/l 0.036 W/mK sp 20mm
Material: Steel - S235
Surface Treatment: Cataphoresis Anti-Corrosion

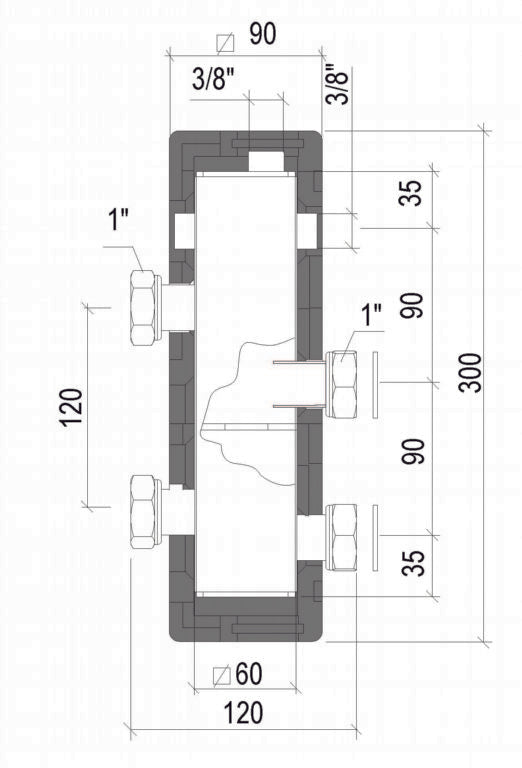

Dimensions: 120x420x945 mm
Benefits

• It renders connected independent hydraulic circuits
• It guarantees that secondary circuits operate efficiently
which ensure the hydraulic need of air-conditioning systems
• Air vent connection and draining of plant impurities (muds)

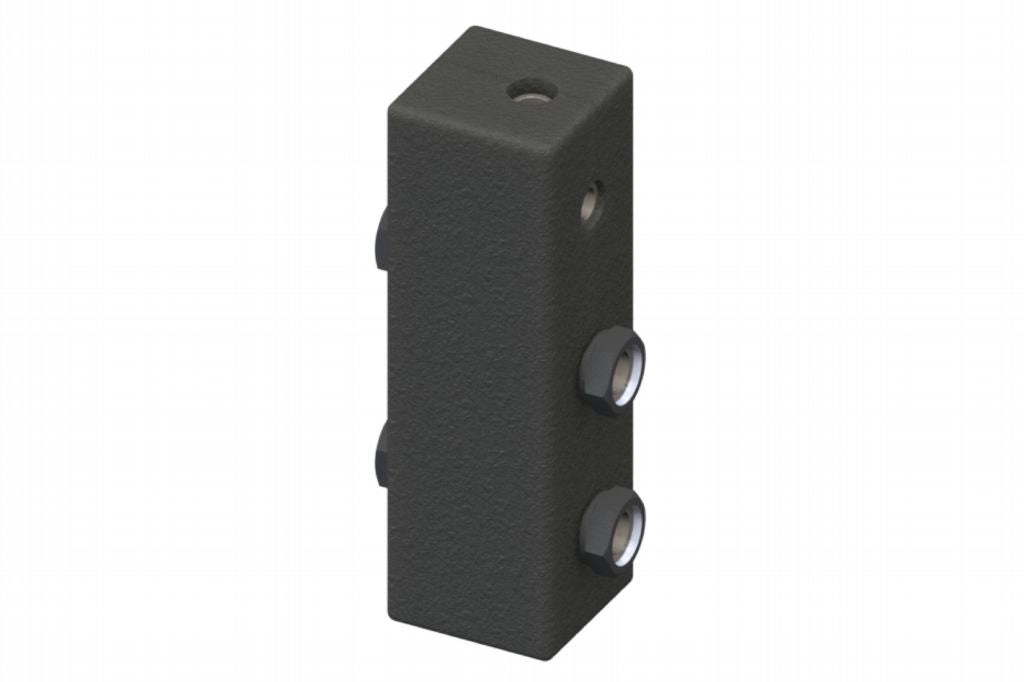

• Thermal insulation in black EPP
• Connection kit to zone manifold.
Details

CP 60 is a compensation chamber which renders connected independent hydraulic circuits.

It is usually installed when the primary circuit circulator interacts with one or more of the secondary circuit circulators in the same system.

Therefore, it avoids problems relating to flow rate variations and circuit prevalence.
