SA-90 DN20 Constant Temperature Pump Group

SA-90 DN20 Constant Temperature Pump Group

£238.02 GBP
Variant
The unmixed group DN 20 - ¾" "SA-90" is suitable for high temperature circuits (radiators, fan coils and cylinder loads).

The unit is supplied with right flow.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
  • SA-90 DN20 Constant Temperature Pump Group
SA-90 DN20 Constant Temperature Pump Group
Specs

Pipework size: DN20
Connection: 1” M - 3/4” F
Output @ 20DT: 36.5 kW

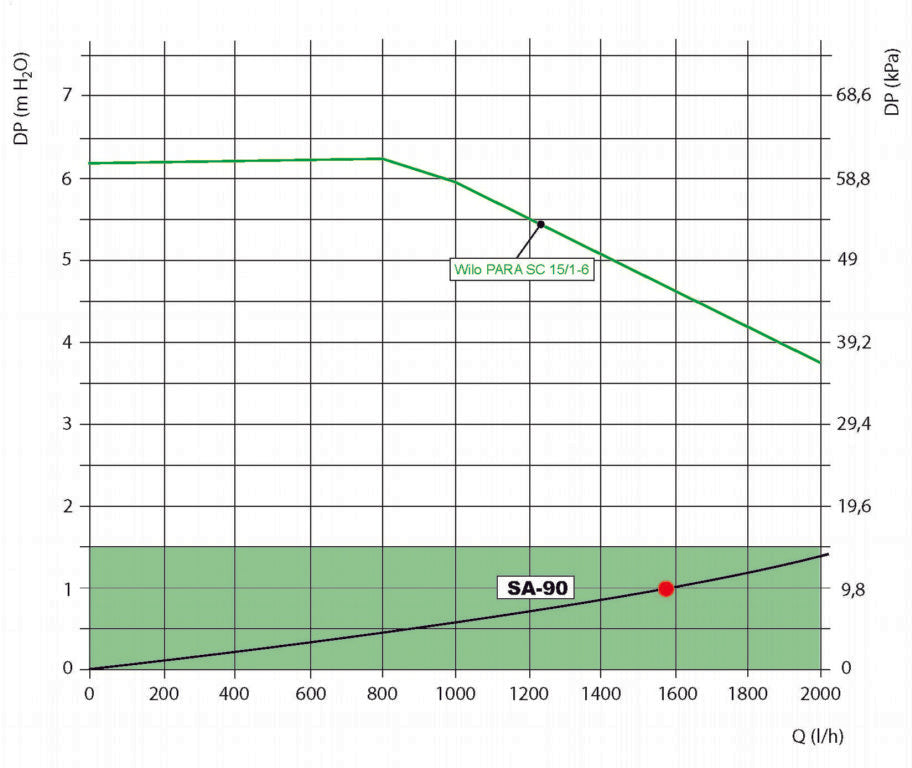

Flow Rate @ 20DT: 1570 l/h
Maximum Temperature: 95 Deg C
Insulation Material: EPP 40 g/l 0.036 W/mK sp 20mm
Check Valve Material: Acetal Copolymer
Ball Valve Material: CW614N / CW617N
Gasket Kit: Viton / EPDM

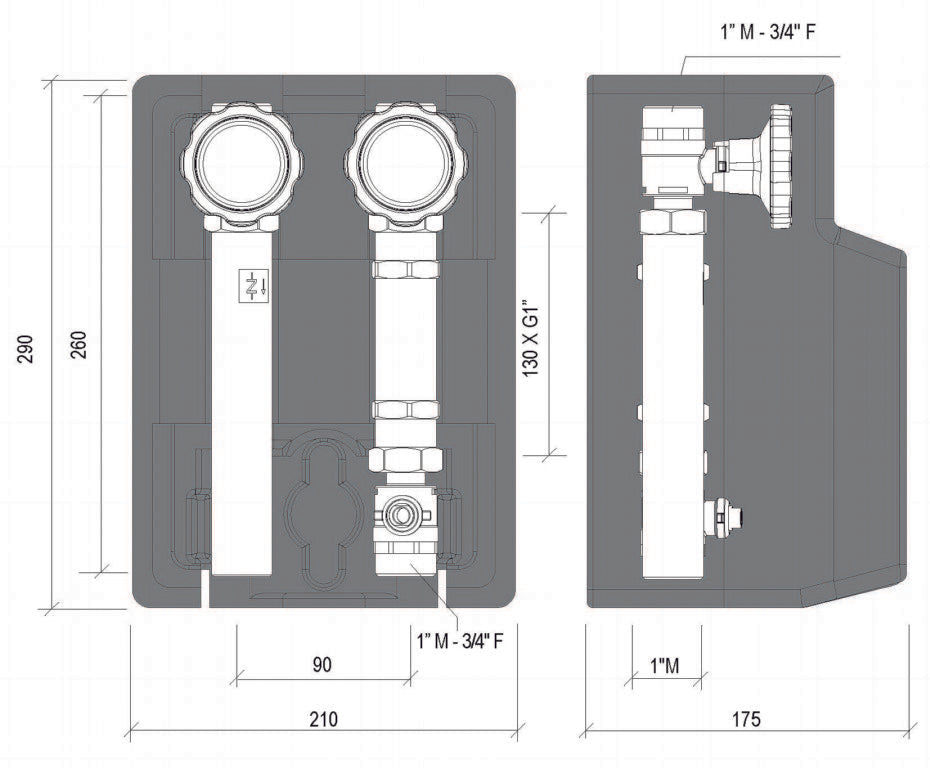

Dimensions: 235x195x320 mm
Benefits

• Ready-to-install compact control and regulation unit
• Unit for high temperature systems
• Electronic circulator, H = 130 mm, Connections 1"
• The change of flow from right to left can be made directly by the installer by inverting the pipe and circulator positions
• Extremely easy maintenance: Checking and replacing the pump without emptying the system
• Return pipe with check valve
• Seals secured by flat stops and seals
• Ball valves on the flow and return pipe with integrated thermometer
• Black EPP thermal insulation
Details

The unmixed group DN 20 - ¾" "SA-90" is suitable for high temperature circuits (radiators, fan coils and cylinder loads).

The unit is supplied with right flow.
