£1,828.36 GBP
The Lovato DN65 TV3-300 mixing pump group is used for the mixed circulation of the heating/cooling transfer fluid in the systems. It can be directly installed on the zone manifolds Hercules range independently to the zone manifold connections.

Hercules is the first ready-to-use system on which twin pumps can be installed.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
Hercules Heating Pump Group, Pump Group Cut

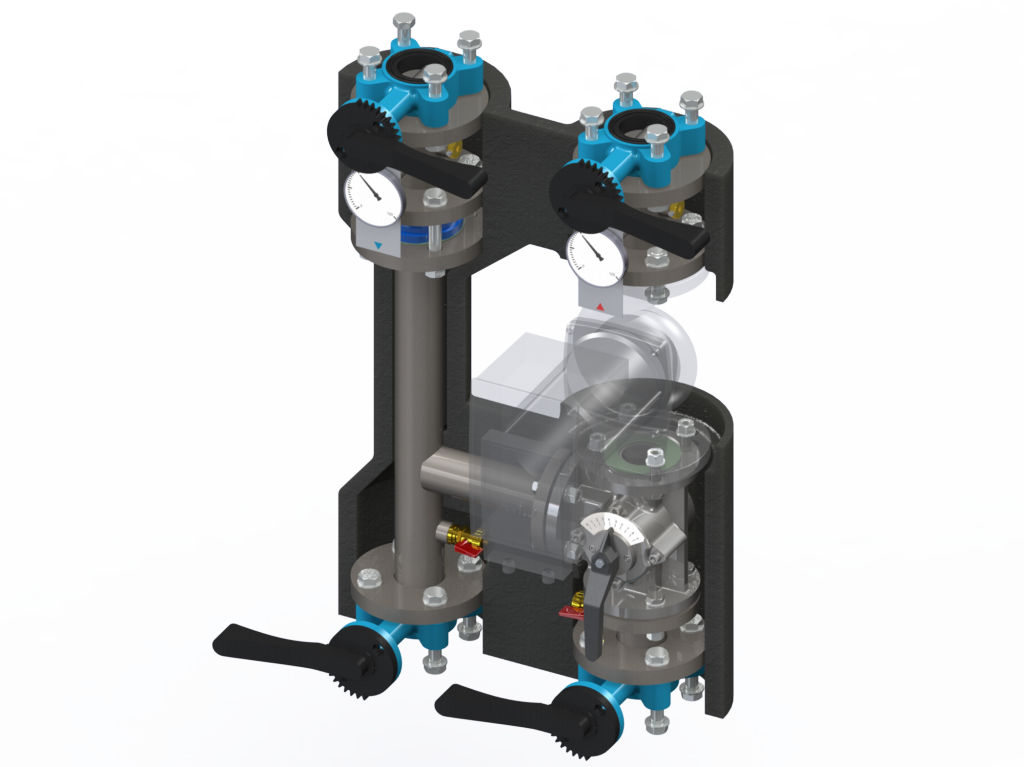

  • Hercules Heating Pump Group, Pump Group Cut

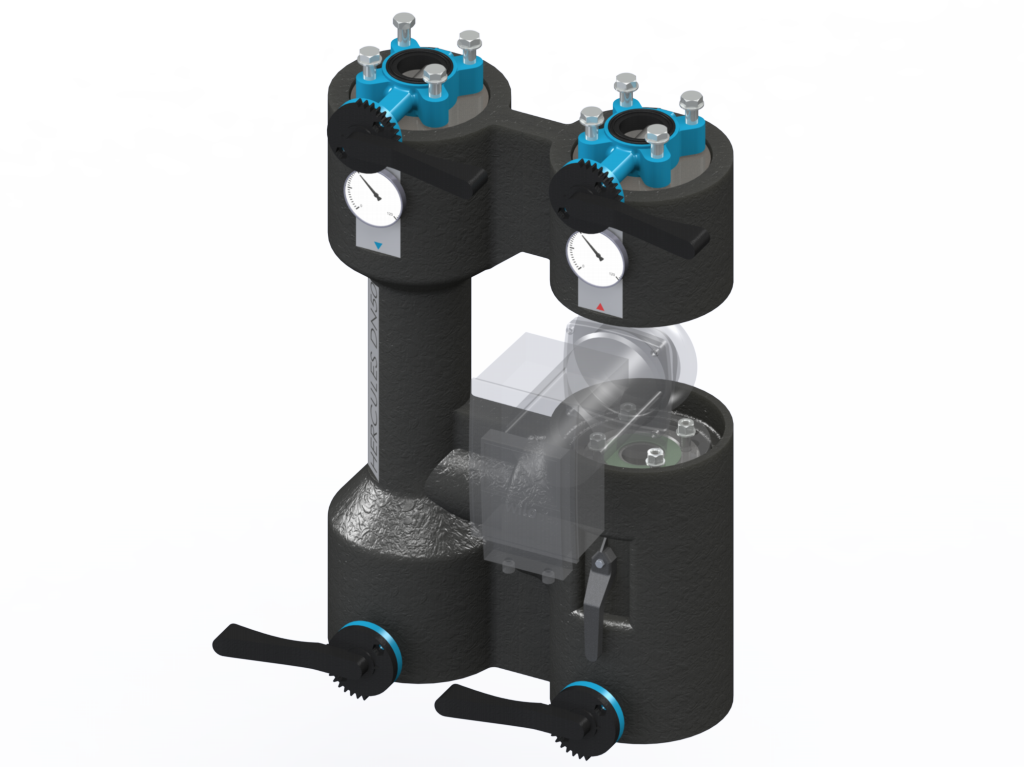

  • Hercules Heating Pump Group, Pump Group Insulated

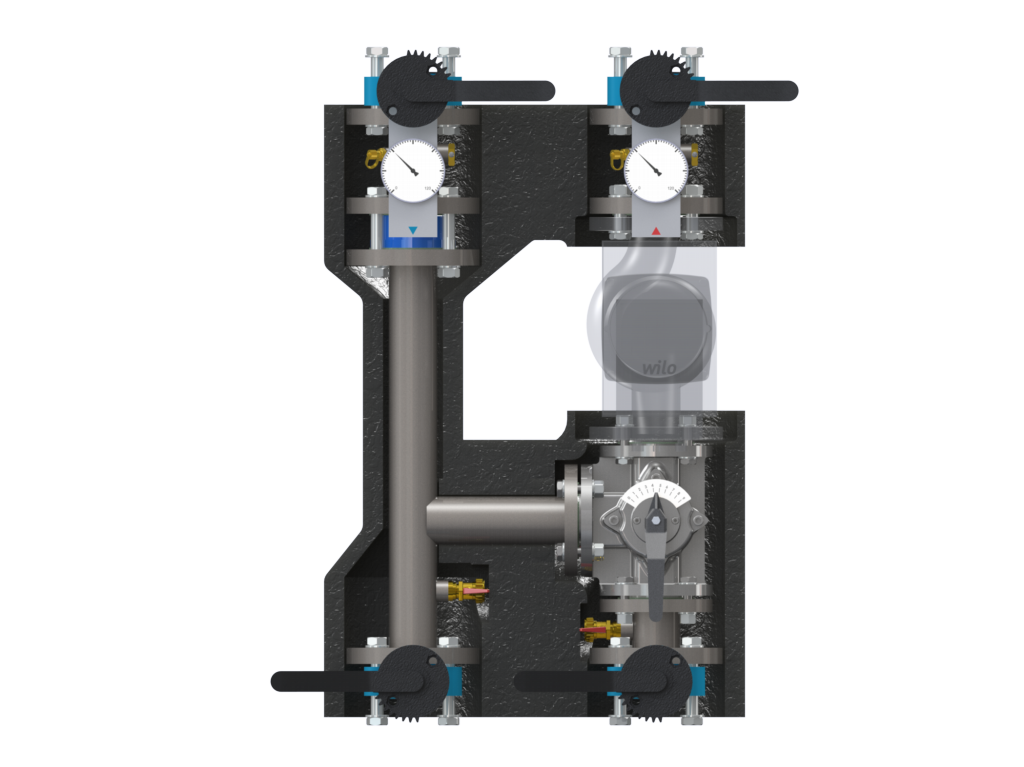

  • Hercules Heating Pump Group, Pump Group Front

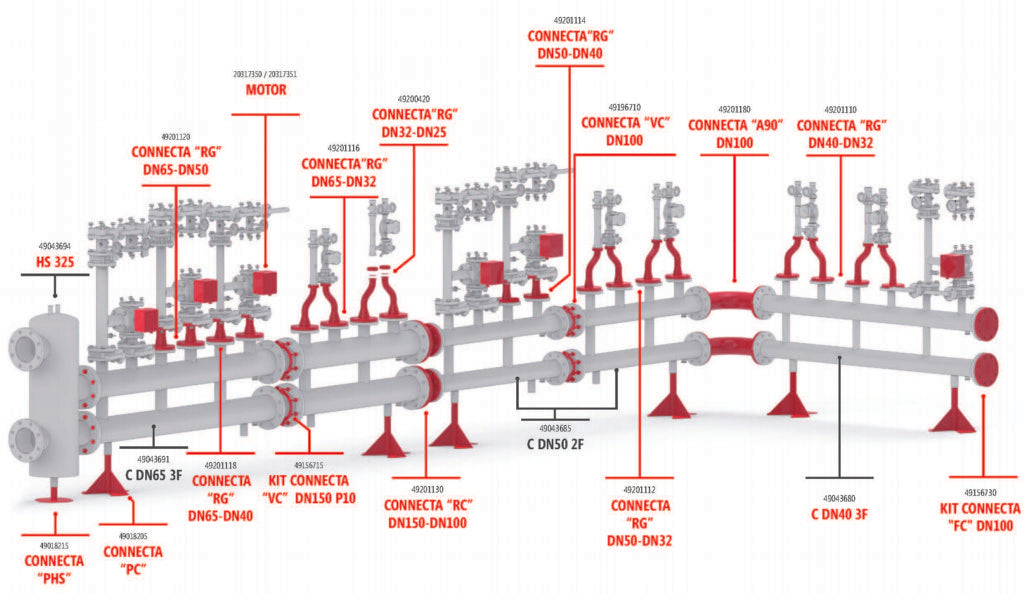

  • Hercules Heating Pump Group, Parts Assembly

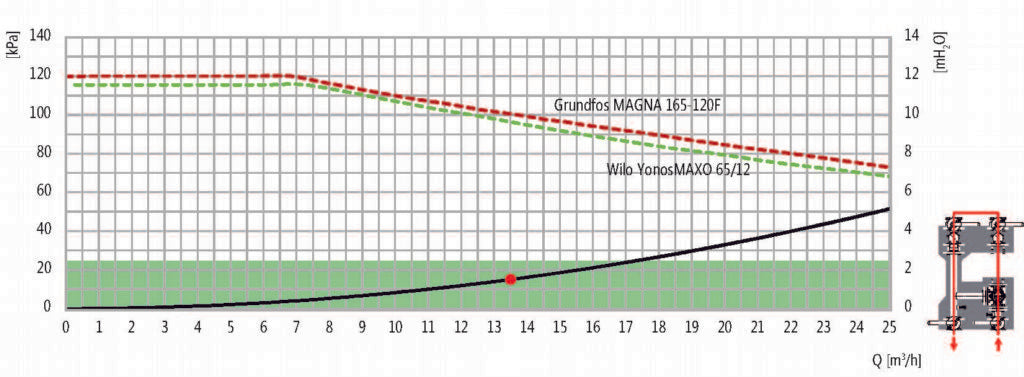

  • Hercules Heating Pump Group, Performance Graph

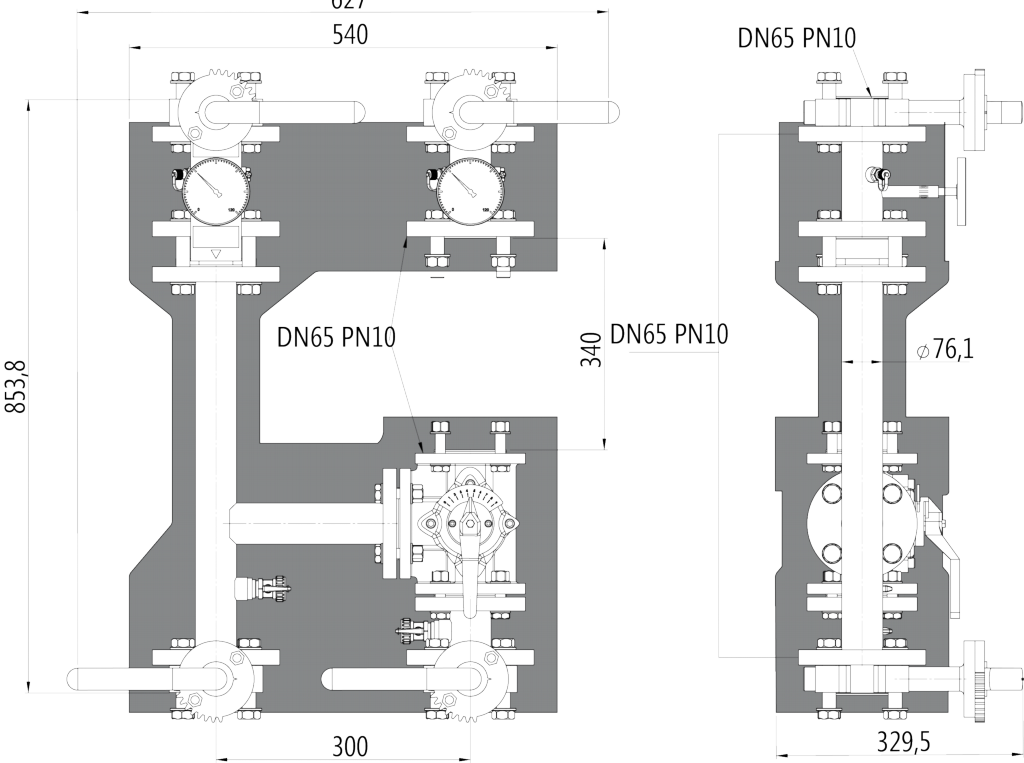

  • Hercules Heating Pump Group, Pump Group Dimensional Drawing
  • Hercules Heating Pump Group, Pump Group Cut
  • Hercules Heating Pump Group, Pump Group Insulated
  • Hercules Heating Pump Group, Pump Group Front
  • Hercules Heating Pump Group, Parts Assembly
  • Hercules Heating Pump Group, Performance Graph
  • Hercules Heating Pump Group, Pump Group Dimensional Drawing
Hercules Heating Pump Group, Pump Group Cut
Specs

Connection: DN65
Output @ 20DT: 314 kW
Flow Rate @ 20DT: 13.5 m3/h
Maximum Temperature: 100 Deg C
Maximum Pressure: 10 Bar
KVS: 63
Insulation Material: Trocellen C080 RN2 sp 30mm 0.034 W/mK
Material: Steel - Fe EN 10217-1
Surface Treatment: Painted with Epoxy Powder Coating
Dimensions: 2 Zone: 940x660x477mm
Benefits

• plug&play module
• Possibility of right/left flow reversal on site
• Ready for the installation of twin pumps
• Fully insulated with easy access to the components
• Ready for the installation of temperature and pressure sensors
• Painted with epoxy powder coating
• Tested, insulated and ready to use
Details

The Lovato DN65 TV3-300 mixing pump group is used for the mixed circulation of the heating/cooling transfer fluid in the systems. It can be directly installed on the zone manifolds Hercules range independently to the zone manifold connections.

Hercules is the first ready-to-use system on which twin pumps can be installed.
