Hercules S-300 DN65 Pump Zone - Hercules

Hercules S-300 DN65 Pump Zone - Hercules

£1,401.78 GBP
The Lovato DN50 S-300 direct pump group is used for the circulation of the heating/cooling transfer fluid in the systems.

It can be directly installed on the zone manifolds Hercules range indipendently to the zone manifold connections (adapter kit for zone manifold DN65)

Hercules is the first ready-to-use system on which twin pumps can be installed.

High Quality Construction

Ready to install

Modular Design

UK TECHNICAL Support

Styled With
Hercules S-300 DN65 Pump Zone - Hercules
  • Hercules S-300 DN65 Pump Zone - Hercules
  • Hercules S-300 DN65 Pump Zone - Hercules
  • Hercules S-300 DN65 Pump Zone - Hercules

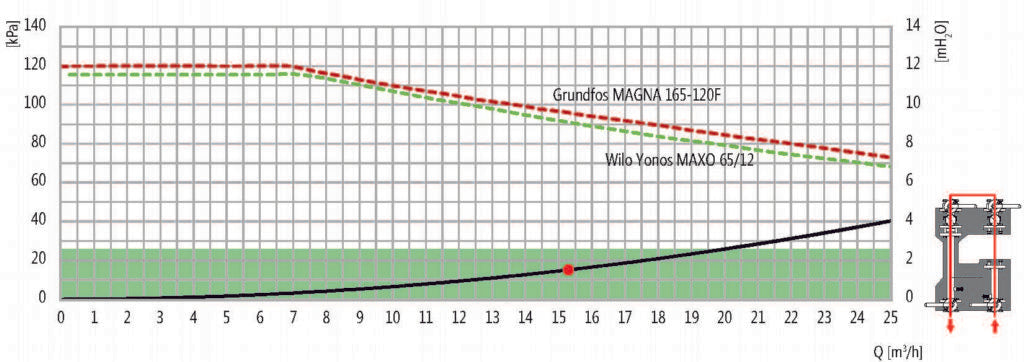

  • Graph comparing flow rate (Q) against head loss for Grundfos MAGNA 1 65-120 and Wilo YONOS MAXO 65/12, with a scale on the right side.

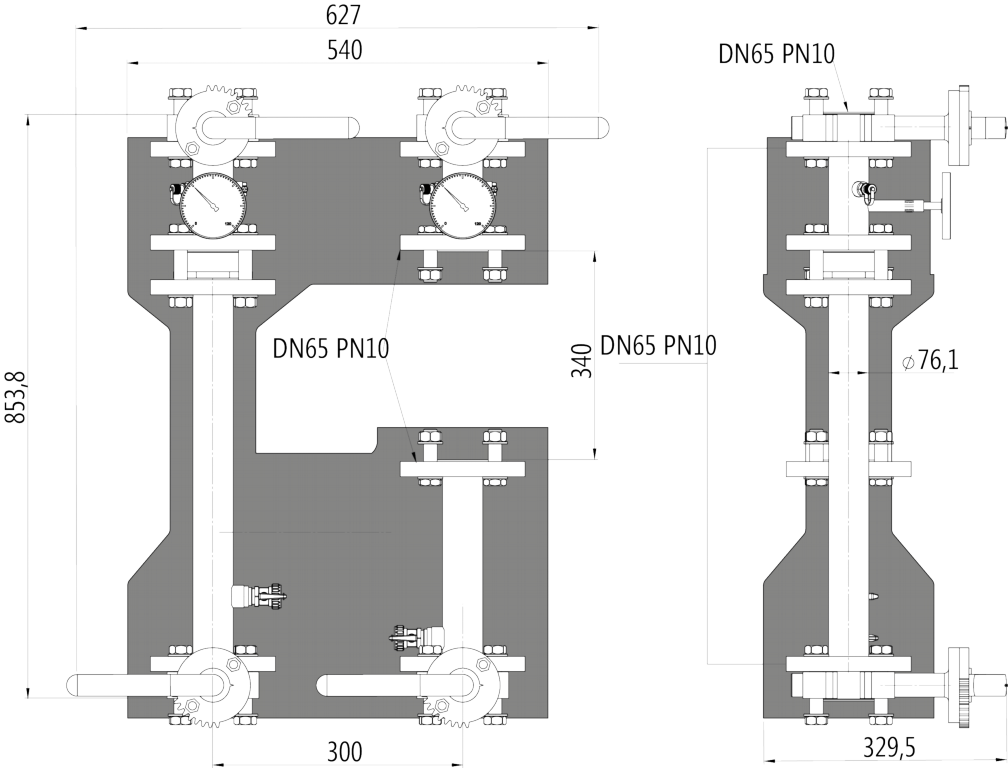

  • Hercules Heating Pump Group, Dimensional Drawing
  • Hercules S-300 DN65 Pump Zone - Hercules
  • Hercules S-300 DN65 Pump Zone - Hercules
  • Hercules S-300 DN65 Pump Zone - Hercules
  • Graph comparing flow rate (Q) against head loss for Grundfos MAGNA 1 65-120 and Wilo YONOS MAXO 65/12, with a scale on the right side.
  • Hercules Heating Pump Group, Dimensional Drawing
Hercules S-300 DN65 Pump Zone - Hercules
Specs

Connection: DN50
Output @ 20DT: 274 kW
Flow Rate @ 20DT: 11.80 m3/h
Maximum Temperature: 100 Deg C
Maximum Pressure: 10 Bar
Insulation Material: Trocellen C080 RN2 sp 30mm 0.034 W/mK
Material: Steel - Fe EN 10217-1
Surface Treatment: Painted with Epoxy Powder Coating
Dimensions: 2 Zone: 940x660x477mm
Benefits

• plug&play module
• Possibility of right/left flow reversal on site
• Ready for the installation of twin pumps
• Fully insulated with easy access to the components
• Ready for the installation of temperature and pressure sensors
• Painted with epoxy powder coating
• Tested, insulated and ready to use
Details

The Lovato DN50 S-300 direct pump group is used for the circulation of the heating/cooling transfer fluid in the systems.
It can be directly installed on the zone manifolds Hercules range independently to the zone manifold connections (adapter kit for zone manifold DN65)

Hercules is the first ready-to-use system on which twin pumps can be installed.
