T-FAST BIG IE 80/100/150

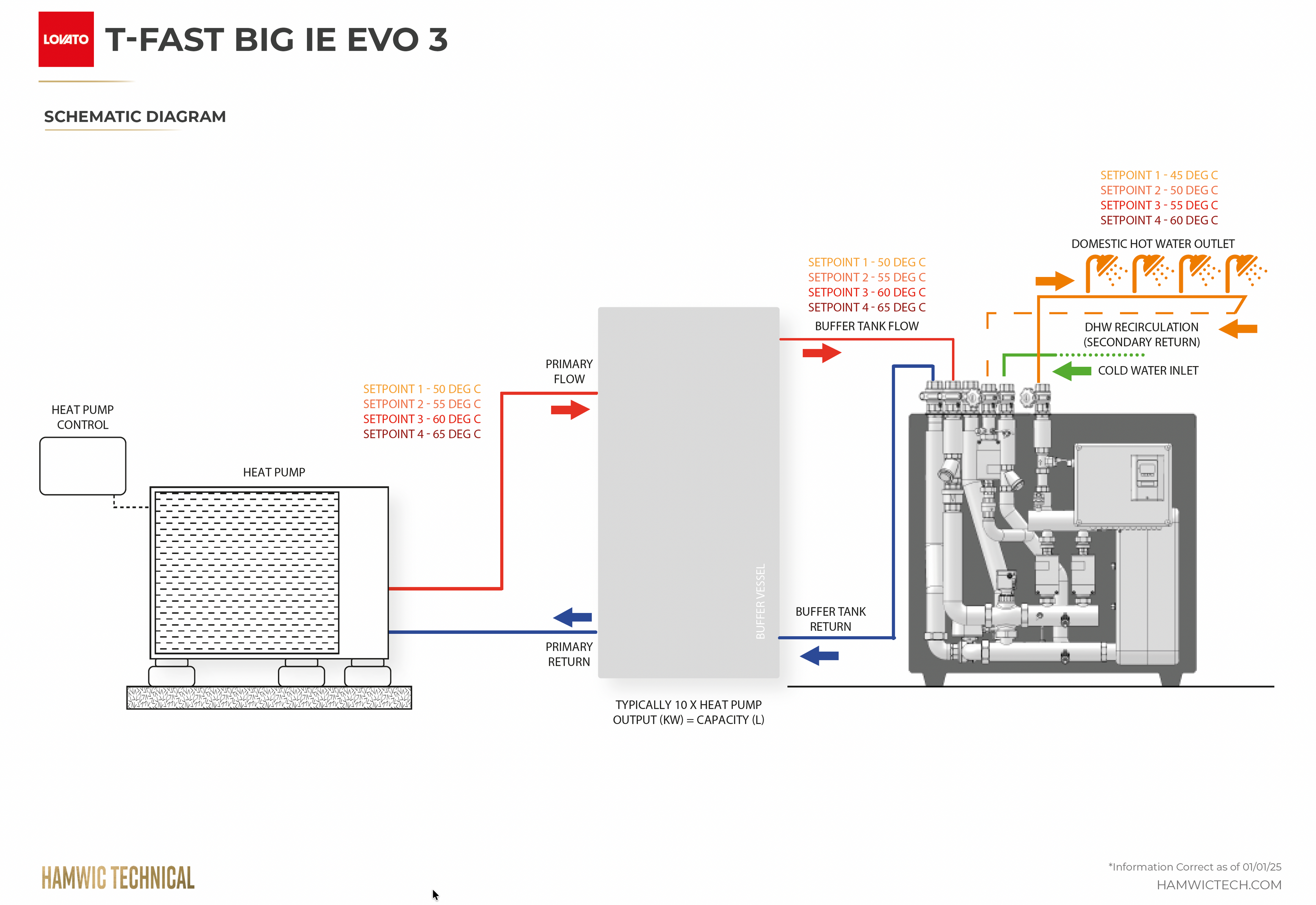

The T-FAST PRO is a module designed for the instantaneous production of domestic hot water (DHW) using a stainless steel brazed plate heat exchanger, which is typically used in combination with buffer storage tanks.

AVAILABLE MODULES -

The BIG T-FAST EVO3 module is available in 8 versions, starting from a B version (basic) it can be implemented with different sets (assembled and tested directly in the factory) depending on the requirements:

• R DHW RECIRCULATION MODULE: intelligent management of DHW recirculation when is need to keep the DHW line warm (time band control and based on the recirculation return temperature).

• M MIXING MODULE: adjusts and stabilizes the inlet temperature of the plate heat exchanger when the temperature of the water stored inside the buffer tank exceeds 58°C.

This facilitates stratification, limits the formation of limescale in the plate heat exchanger, preserves the system's functionality over the time and opti mises the control of the sanitary outlet temperature.

• D DIVERTER MODULE: allows the stratification of both two puffers in series and high stratification buffer tanks.

The T-FAST PRO is a module designed for the instantaneous production of domestic hot water (DHW) using a stainless steel brazed plate heat exchanger, which is typically used in combination with buffer storage tanks.

AVAILABLE MODULES -

The BIG T-FAST EVO3 module is available in 8 versions, starting from a B version (basic) it can be implemented with different sets (assembled and tested directly in the factory) depending on the requirements:

• R DHW RECIRCULATION MODULE: intelligent management of DHW recirculation when is need to keep the DHW line warm (time band control and based on the recirculation return temperature).

• M MIXING MODULE: adjusts and stabilizes the inlet temperature of the plate heat exchanger when the temperature of the water stored inside the buffer tank exceeds 58°C.

This facilitates stratification, limits the formation of limescale in the plate heat exchanger, preserves the system's functionality over the time and opti mises the control of the sanitary outlet temperature.

• D DIVERTER MODULE: allows the stratification of both two puffers in series and high stratification buffer tanks.

Supervision Kit for the Lovato Big T-FAST ie 80/100/150 models.

The supervision kit allows the system to be viewed remotely.
Thanks to this kit it is possible to:
- Historicalize the data through data logger;
- View the "real time" operation through system synoptic;
- View the status of all components "real time";
- Detect any anomalies thanks to alarm messages;
- Easy installation arranged inside BIG control panel;
.

Plus / Advantages:
System synotic with real time values:
- Flow rate display;
- Temperature display;
- Valve display;
- Withdrawal display;
- Component status display (active/disactive);

Statistics:
- Daily energy display;
- Weekly energy display;
- Monthly energy display;
- Annual energy display;Message log:
- Tabular data display;
- Error log display;
- System restart and status display;

The single CAN-bus cable is required when more than one kit is used per configuration according to the following formula:

•  nr. 1 CAN-BUS CABLE = e.g.: to have 5 modules in parallel you choose one KIT 2X and one KIT 3X with n.1 CAN-BUS cable
• nr. 2 CAN-BUS CABLES = e.g.: to have 8 modules you choose 2 KIT 3X and 1 KIT 2X with the addition of n.2 CAN-BUS cables.

Cascade kit for 2x Lovato Big T-FAST ie 80/100/150 models.

Cascade kit for 3x Lovato Big T-FAST ie 80/100/150 models.
